Doughty Tank Trap- Boom Base for 2'' Tube

Doughty Tank Trap- Boom Base for 2'' Tube

The Doughty Tank Trap is regarded as the best boom base to create side light or cross light across the stage. They solve many of the challenges involved with transporting and storing boom and lighting pipe stands.

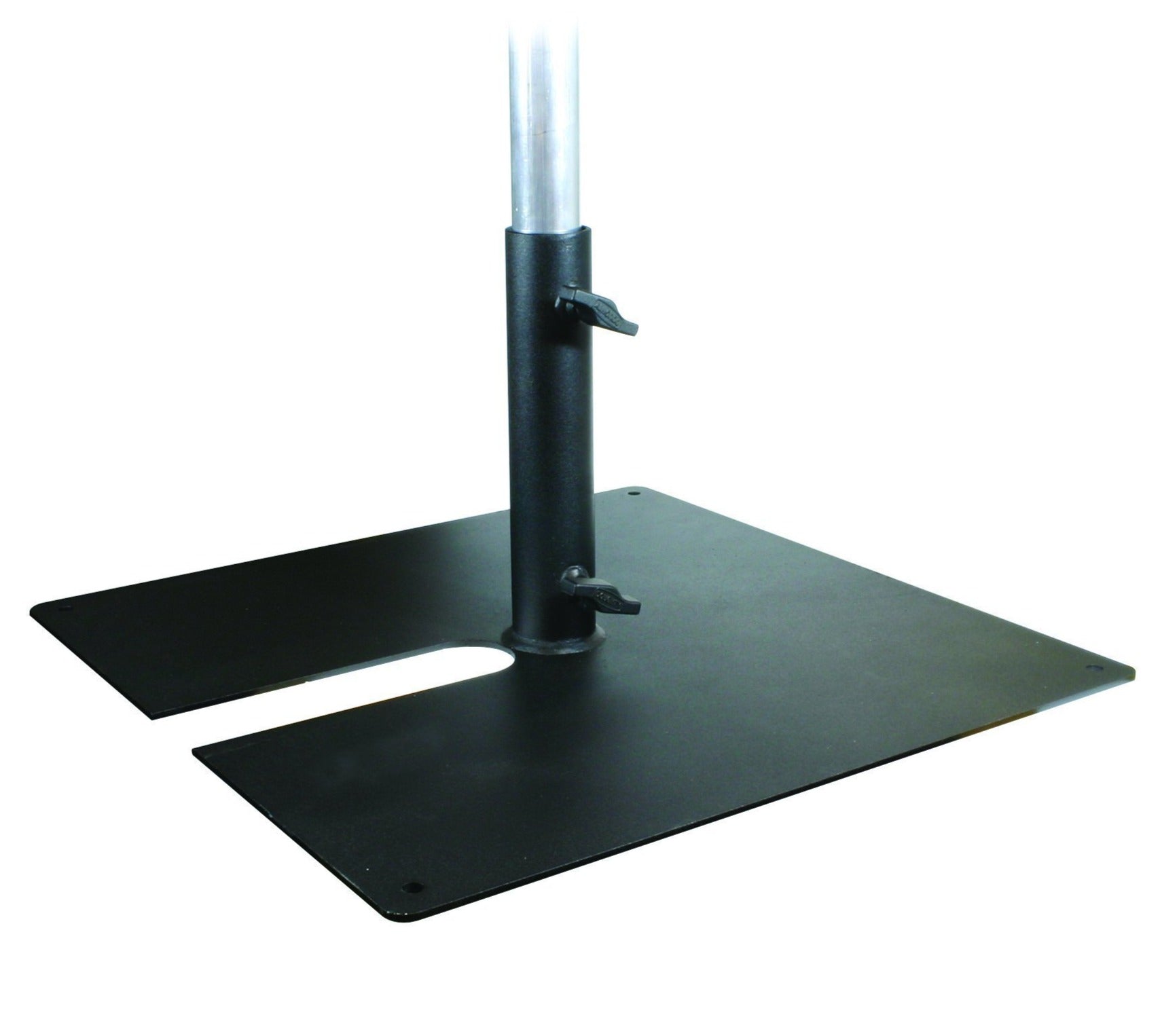

The Doughty knob grips a 2'' diameter vertical tube/scaffold pole securely in order to fly luminaires etc. The Tank Trap's heavy square steel metal base and long receiver provide extra stability to lighting fixtures.

With fixing holes on the plate, this strong boom base can be screwed to the stage floor. The base can also be weighted with sandbags to hold it in place, especially when using long poles.

Downloads:

User Manual

Key Features:

• Ideal for creating side or cross lighting on stage
• Securely grips 2'' vertical tubes or scaffold poles
• Heavy-duty square steel base for enhanced stability
• Includes fixing holes for floor mounting or sandbag weighting
• Cut-out base design allows for compact stacking and transport

Specifications:

• Square Steel Plate: 2ft x 2ft
• Long Receiver: 12'' tall to fit 2'' tube
• Fixing Holes: 4 x 0.5'' diameter on the plate
• Style: With a fixed base only
• Weight: 35.6 lbs

References:

• MTN Shop Blog - Doughty Tank Trap
• Spec Sheet 1
• Spec Sheet 2

Doughty Engineering, a UK-based manufacturer since 1985, is a global leader in rigging, suspension, and lifting equipment for the entertainment industry. Committed to quality and safety, Doughty products undergo rigorous testing and are TÜV certified where applicable. As proud members of ESTA and PLASA, Doughty upholds the highest industry standards.
