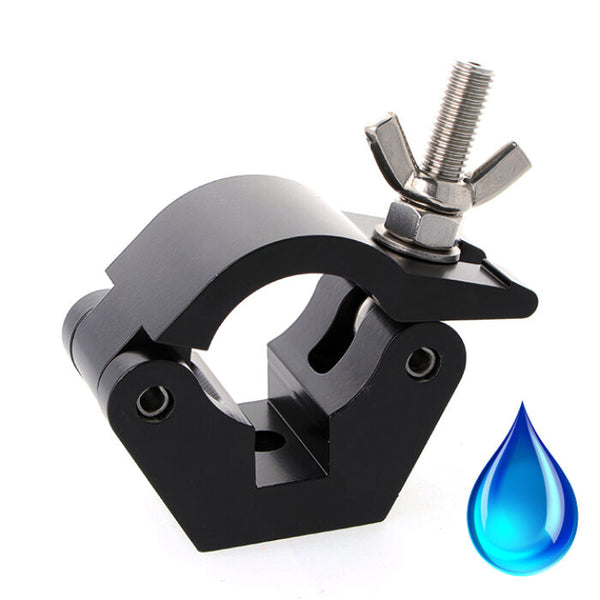

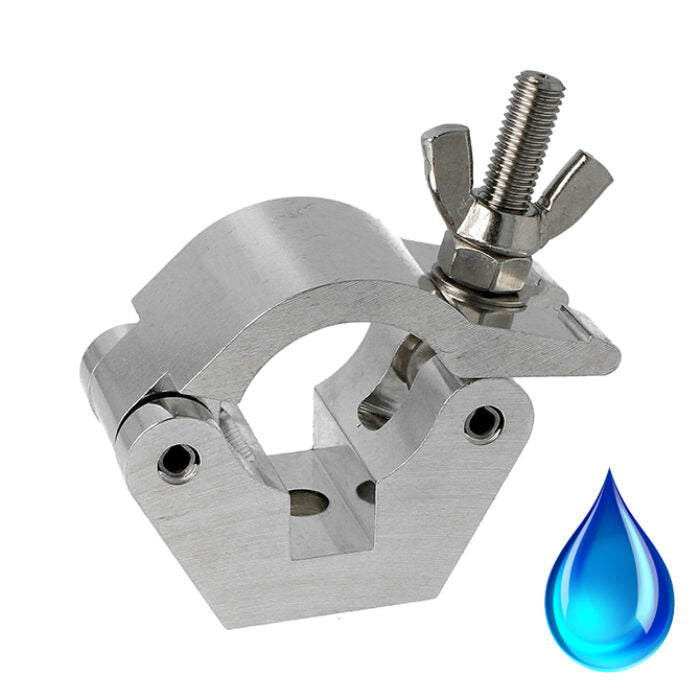

Doughty Half Coupler with Stainless Eye Bolt

Doughty Half Coupler with Stainless Eye Bolt

A high tensile extruded half coupler suitable for 48mm – 51mm (1.89” – 2.01”) diameter tubes.

Slotted to hold captive an M12 nut or bolt head.

Supplied with stainless steel fastenings which make it ideal for use at outdoor events.

Downloads:

User Manual

Key Features:

• High tensile extruded aluminum construction for durability
• Compatible with 48mm – 51mm (1.89” – 2.01”) diameter tubes
• Slotted design to secure an M12 nut or bolt head
• Includes stainless steel fastenings for outdoor suitability
• Ideal for rigging and structural applications in demanding environments

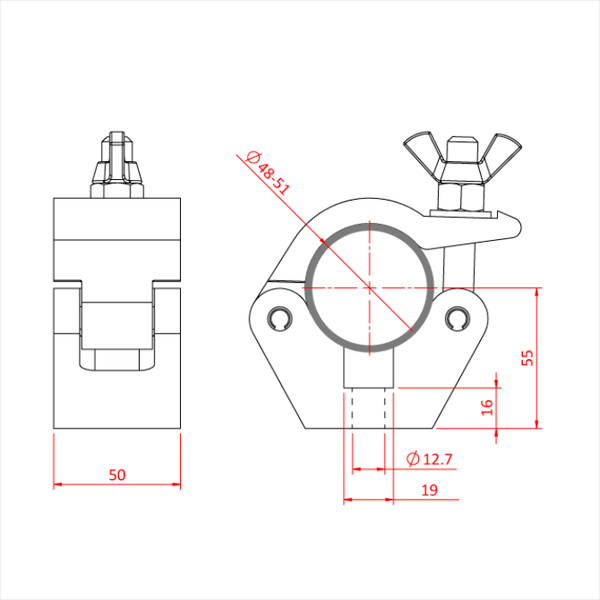

Specifications:

• WLL: 750kg
• Tube Diameter: 48mm – 51mm (1.89” – 2.01”)
• Clamp Width: 50mm (1.97")
• Material: High tensile extruded aluminum
• Fastenings: Stainless steel

References:

• Data Sheet
• 2D DWG
• 3D Step
