LiftAll Alloy Chain Slings - Adjust-A-Link Grade 100

LiftAll

30001G10

$112.99

Chain Size

7/32"

9/32"

Length

10'

Qty

Category: Chain Slings, Material Handling

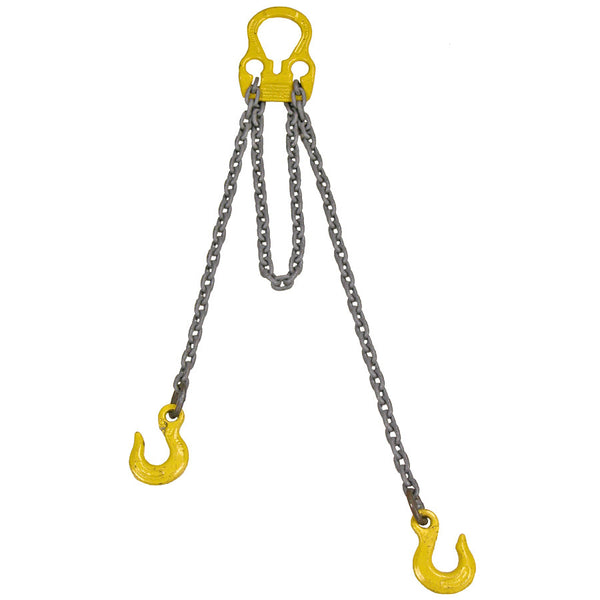

Alloy Chain Slings - Adjust-A-Link Grade 100

Adjust-A-Link Grade 100 Alloy Chain Slings is the most easily adjustable and versatile chain sling on the market! With 25% higher workload limits than grade 80 chain, Grade 100 one is becoming increasingly popular. Its alloy steel construction also assures long life, strength, and reliability!

Ideal for machine shop and maintenance departments that have varying requirements. These alloy chain slings are also recommended for rugged industrial applications in harsh environments where flexibility, abrasion resistance, and long life are required.

This product is OSHA compliant and is proof tested and certified. The alloy chain sling is available in 7/32” and 9/32” chain sizes. The benefits cover a wide range of uses, refer to the ''FEATURES' section for the full breakdown of Adjust-A-Link features.

Also, please download Chain Sling Inspection document to ensure the problematic slings must be taken out of service.

Chain Sling Inspection

Promote Safety:

Chain cannot be removed from master control plate, assuring the capacity rating will not be compromised in use
Alloy steel master control link for strength and reliability
Serialized for traceability
Lift-All chain slings meet or exceed all OSHA, ASME B30.9 and NACM standards and regulations.

Money-Saving:

Grade 100 chain replaces larger, more expensive slings
New angled plate design reduces bending torque on chain and plate — reduces wear and extends product life
Wider top bearing surface reduces wear to both plate and crane hook
Using two Adjust-A-Links on the same crane hook eliminates the need for expensive triples and quads
Heat-treated alloy steel for long sling life
Yellow powder coating on master plate and hooks prevents rust for extending sling's life

Time-Saving:

More compact plate design fits larger hooks for easier rigging
Less bulky than typical double adjustment chain slings
High visibility yellow fittings make assembly easy to spot in the production environment
Easily adjustable

	7/32" Chain	9/32" Chain
Rated Capacity - Single @ 60°	2,700 lb	4,300 lb
Rated Capacity - Double @ 90°	4,700 lb	7,400lb
Eye Width (A)	2 3/16"	2 7/8"
Eye Height (B)	2 11/16"	2 3/16"
Overall Width (C)	3 15/16"	5 1/16"
Overall Length(D)	5 1/8"	6 1/2"
Hook Opening (E)	15/16"	1 11/16"

NOTE: Never exceed the rated capacities as documented by the manufacturer. The chain must be seated at the base of the adjusting slot of the Master Control Link for proper usage.
