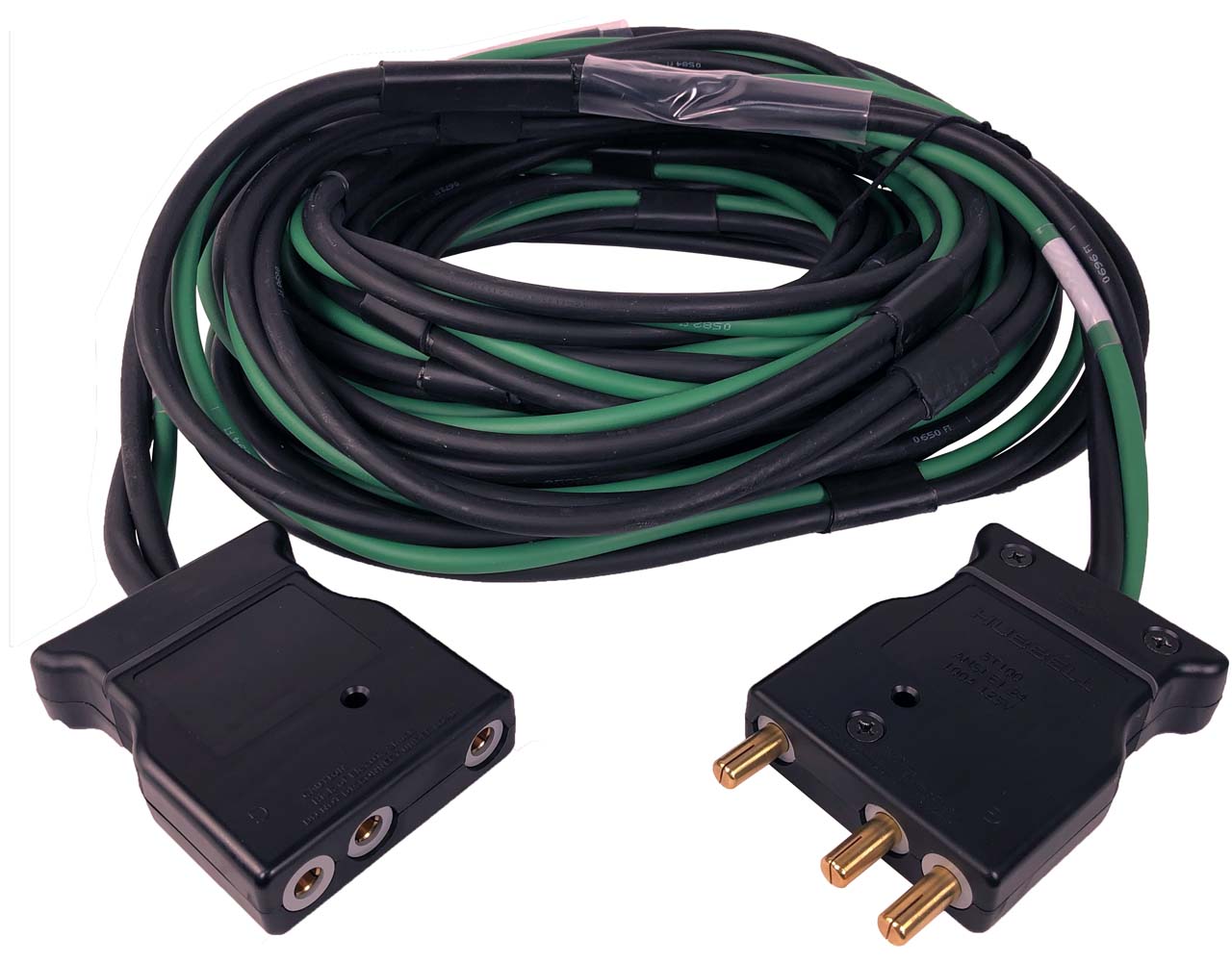

Lex 100 Amp Stage Pin Extension

Lex 100 Amp Stage Pin Extension

100 Amp, 120 VAC stage pin extensions are used to power lights rated between 7.2kW and 12kW. These extensions can also be used to feed 100 Amp power distribution boxes commonly found on set.

Specifications

• Rating: 100 Amp, Single Phase, 2 Pole, 3 Wire, 120 VAC
• Male/Female Connector: 100 Amp 120 VAC stage pin
• Cable Gauge: (2) #4 AWG type SC (1) #6 AWG type SC green

Features

• Extensions are made with single conductor type SC cable and are banded every 2 feet with heavy-duty type head shrink tubing
• Extensions feature stage pin connectors machined from high temperature phenolic material
• Double set screw terminals for secure terminations
• Stage pin connectors are ETL Listed

Downloads

Lex BEH206L-xxx Data Sheet
