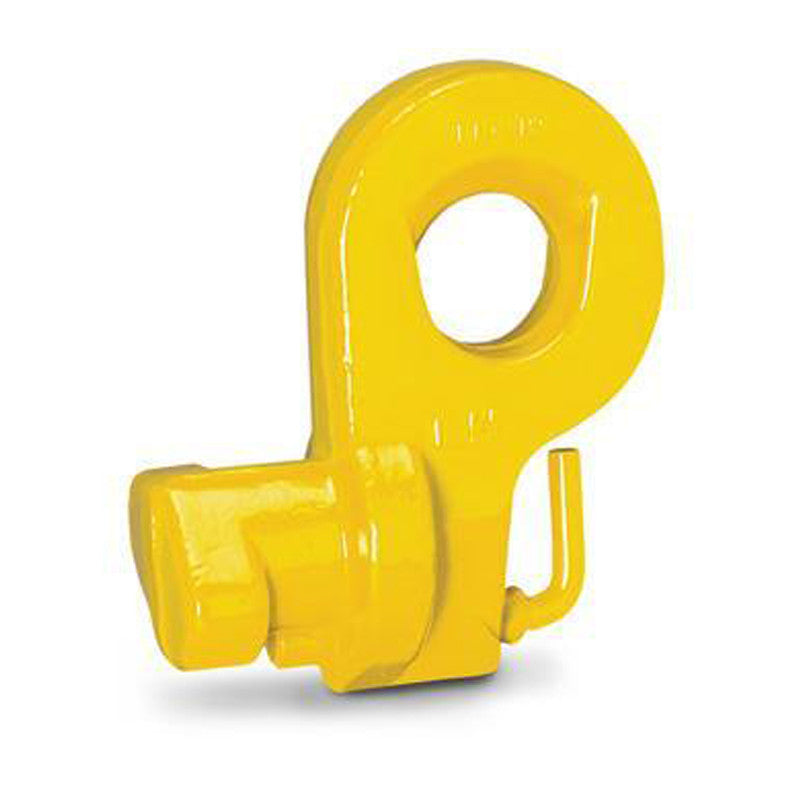

Camlok™ CLB Container Lifting Lugs
Regular price $1,894.00 USDUnit price per
Please enter correct zip code
Camlok CLB Container Lifting Lugs are supplied in sets of four. These lifting lugs serve as flexible lashing points for the transportation of containers.
- Spring-loaded bolt to prevent accidental release
- Mounted horizontally at the side of the container in either upper or lower holes
- Easy installation and removal - simply insert and turn to install
- Designed to eliminate the dangerous use of standard hooks
- Lugs cannot drop out when slings become slack
- Lugs can be used for left hand or right hand turns
- For maximum capacity, use a lifting beam in conjunction with CLB lifting lugs
- Design factor 4:1
- Working Load Limit: 88,100 lb per set of 4

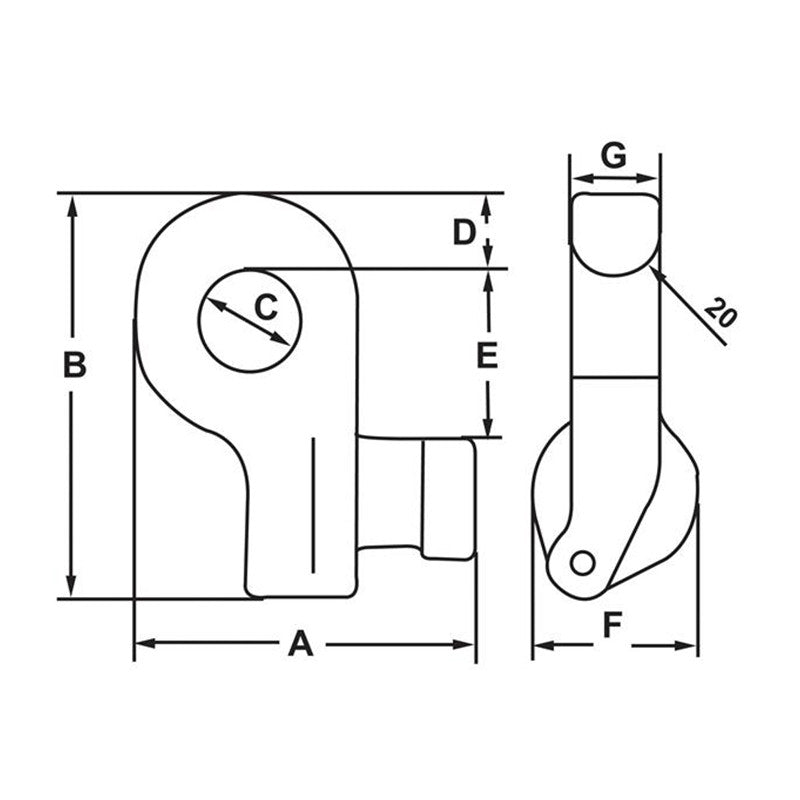

- Dimensions (Refer to product drawing above)
- A: 5.984"
- B: 7.125"
- C: 1.772"
- D: 1.457"
- E: 2.874"
- F: 2.953"
- G: 1.575"
- Weight: 39.7 lbs
