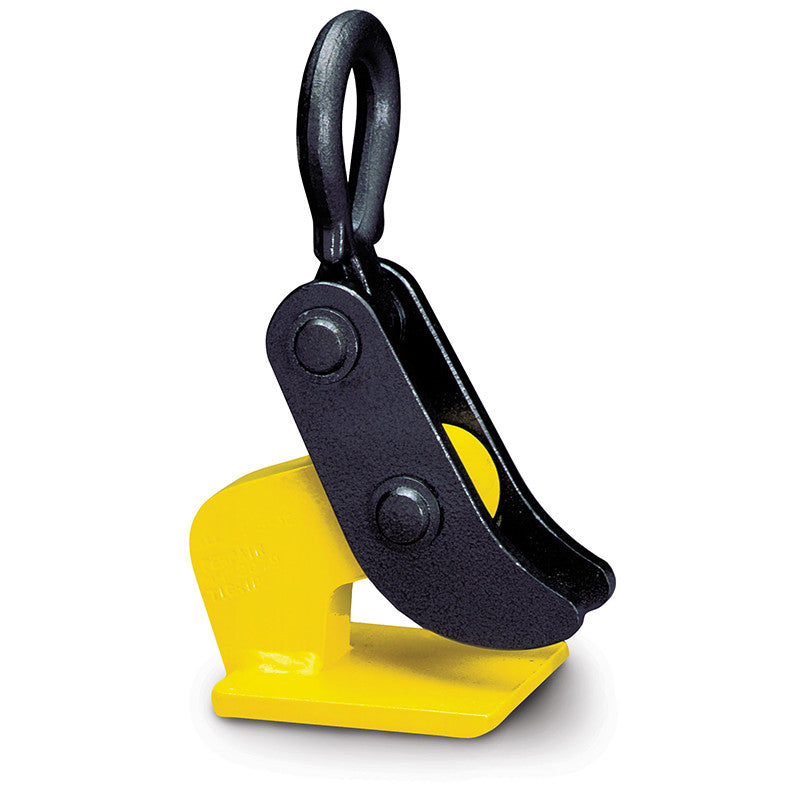

Camlock CH Heavy-Duty Horizontal Plate Clamps must always be used in pairs and can be used on all types of materials in plate form, providing the plate can withstand the forces imposed. Standard CH clamps are supplied with smooth jaws. The CH Clamps are made for loading process machines and to lift and transport sheet steel plates in the horizontal position.
- CH clamps are designed for loading process machines and to lift and transport sheet steel plates in the horizontal position
- Can be designed to suit any load or plate thickness
- Clamps are suitable for lifting one plate at a time, or bundles of plates provided the plates are the same width, have straight square sides, and are thicker than 10% of the maximum jaw capacity of the clamp
- Clamps have smooth teeth so they can be used on all types of material
- The smooth jaws can be replaced with serrated, hardened steel teeth and used on material up to 300 Brinell (32HRc)
- Designed to be used with 2 legged slings
- CH clamps should never be side loaded
- Sold in pairs
- Design factor 4:1
| Product Code | Dimensions (in) * | Weight (lbs) | ||||||
| A | B | C | D | E | F | G | ||
| CH1 | 1.181 | 3.228 | 2.362 | 3.937 | 1.26 | 1.732 | 0.512 | 13.2 |
| CH2 | 1.181 | 3.228 | 2.362 | 3.937 | 1.969 | 2.874 | 0.709 | 24.3 |
| CH2/L | 1.181 | 3.228 | 2.362 | 3.937 | 1.969 | 2.874 | 0.709 | 26.5 |
| CH4 | 1.575 | 4.409 | 3.15 | 3.937 | 2.52 | 3.622 | 0.984 | 37.5 |
| CH4/L | 1.575 | 4.409 | 3.15 | 3.937 | 2.52 | 3.622 | 0.984 | 50.7 |
| CH6 | 2.165 | 6.772 | 3.937 | 5.118 | 3.543 | 5.118 | 1.378 | 101.4 |
| CH6/L | 2.165 | 6.772 | 3.937 | 5.118 | 3.543 | 5.118 | 1.378 | 123.5 |
| CH8 | 2.165 | 6.772 | 4.134 | 5.118 | 3.543 | 5.118 | 1.378 | 116.8 |
| CH8/L | 2.165 | 6.772 | 4.134 | 5.118 | 3.543 | 5.118 | 1.378 | 132.3 |
| CH10 | 2.559 | 8.465 | 4.724 | 5.906 | 4.488 | 5.118 | 1.378 | 209.4 |
| CH10/L | 2.559 | 8.465 | 4.724 | 5.906 | 4.488 | 5.118 | 1.378 | 238.1 |
| HH8 | 2.165 | 6.614 | 4.134 | 5.118 | 4.134 | 5.118 | 3.543 | 46.3 |
| HH8/L | 2.165 | 6.614 | 4.134 | 5.118 | 3.543 | 4.488 | 1.378 | 61.7 |

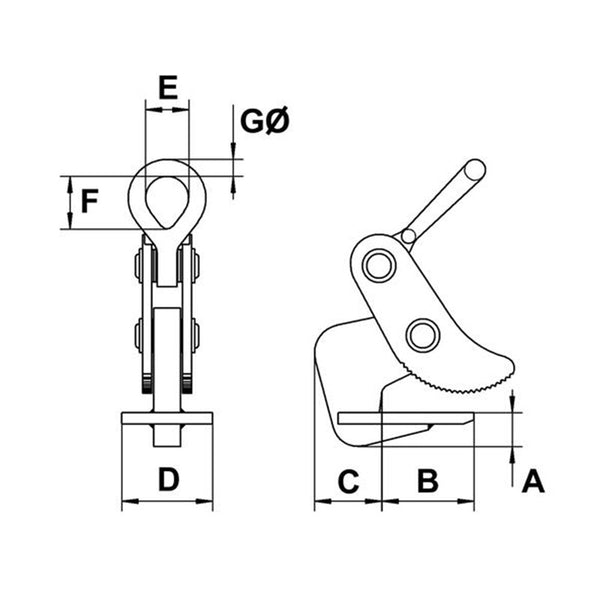

* Refer to product drawing above
| Product Code | Working Load Limit (lbs per Pair) | Jaw Capacity (in) |
| CH1 | 2,200 | 1/4 to 1-1/4 |
| CH2 | 4,400 | 1/4 to 1-1/4 |
| CH2/L | 4,400 | 3/4 to 2 |
| CH4 | 8,800 | 1/4 to 1-1/4 |
| CH4/L | 8,800 | 2 to 4 |
| CH6 | 13,200 | 1/4 to 3 |
| CH6/L | 13,200 | 2 to 5 |
| CH8 | 17,600 | 1/4 to 3 |
| CH8/L | 17,600 | 2 to 5 |
| CH10 | 22,000 | 1/4 to 4 |
| CH10/L | 22,000 | 2 to 6 |
| HH8 | 17,600 | 1/4 to 2 |
| HH8/L | 17,600 | 2 to 4 |
