Camlok™ CG Girder Turning Clamps

Camlok

CG1

$592.20

Minimum WLL

250 LBs

450 LBs

900 LBs

1350 LBs

Qty

Category: Below-the-Hook Attachment, Horizontal Clamp, Material Handling

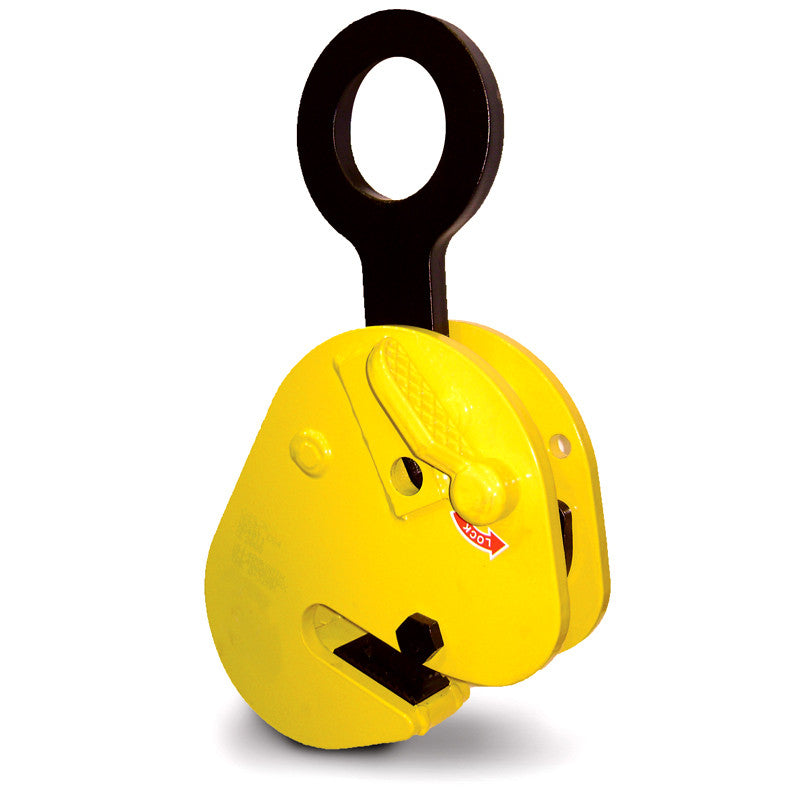

CM’s Camlok THS Plate Clamps can be used with single or two leg slings with a maximum angle of 60°. These clamps are designed to be used on structural steel plates up to a surface hardness of 300 Brinell (32HRc), providing that the plate can withstand the forces imposed. Trust in the Camlok brand to handle your materials safely and reliably every time.

Spring/lever-operated mechanism securely locks the clamp onto the horizontally positioned plate
Do not use to lift stainless steel, lead or copper
Can be used in single or 2 leg slings
Use lifting beams for longer plates
Clamp locks quickly onto the plate, enabling a single operator to set up the plate for lifting
Lifts and handles single sheet steel plates in the horizontal position
Useful for loading plates into guillotines, presses, punching machines and folding presses
Caution should be used so that maximum single angle of 60º is not exceeded
Design factor 4:1

Product Code	Dimensions (in) *									Weight (lbs)
Product Code	A	B	C	D	E	F	G	H	I	Weight (lbs)
CG1	8.307	3.543	1.969	0.512	1.693	10.354	2.520	13.780	13.268	13.2
CG2	11.417	5.512	3.150	0.787	2.362	12.480	3.937	18.307	17.126	30.9
CG4	11.417	6.339	3.504	0.787	3.031	12.835	4.252	20.591	18.976	41.9
CG6	13.268	6.732	3.504	0.984	4.055	14.764	5.709	21.693	20.630	81.6

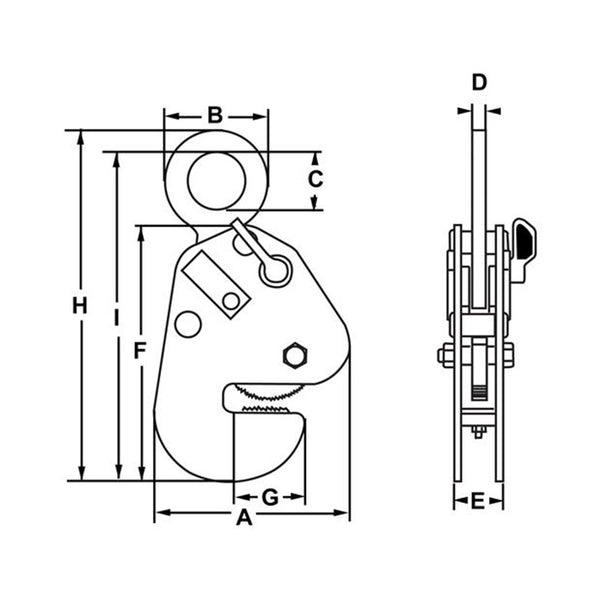

* Refer to product drawing above

Product Code	Working Load Limit		Jaw Capacity (in)
Product Code	Minimum (lbs)	Maximum (lbs)	Jaw Capacity (in)
CG1	250	2,200	0 to 5/8
CG2	450	4,400	0 to 1-1/4
CG4	900	8,800	0 to 1-1/4
CG6	1,350	13,200	7/16 to 2
