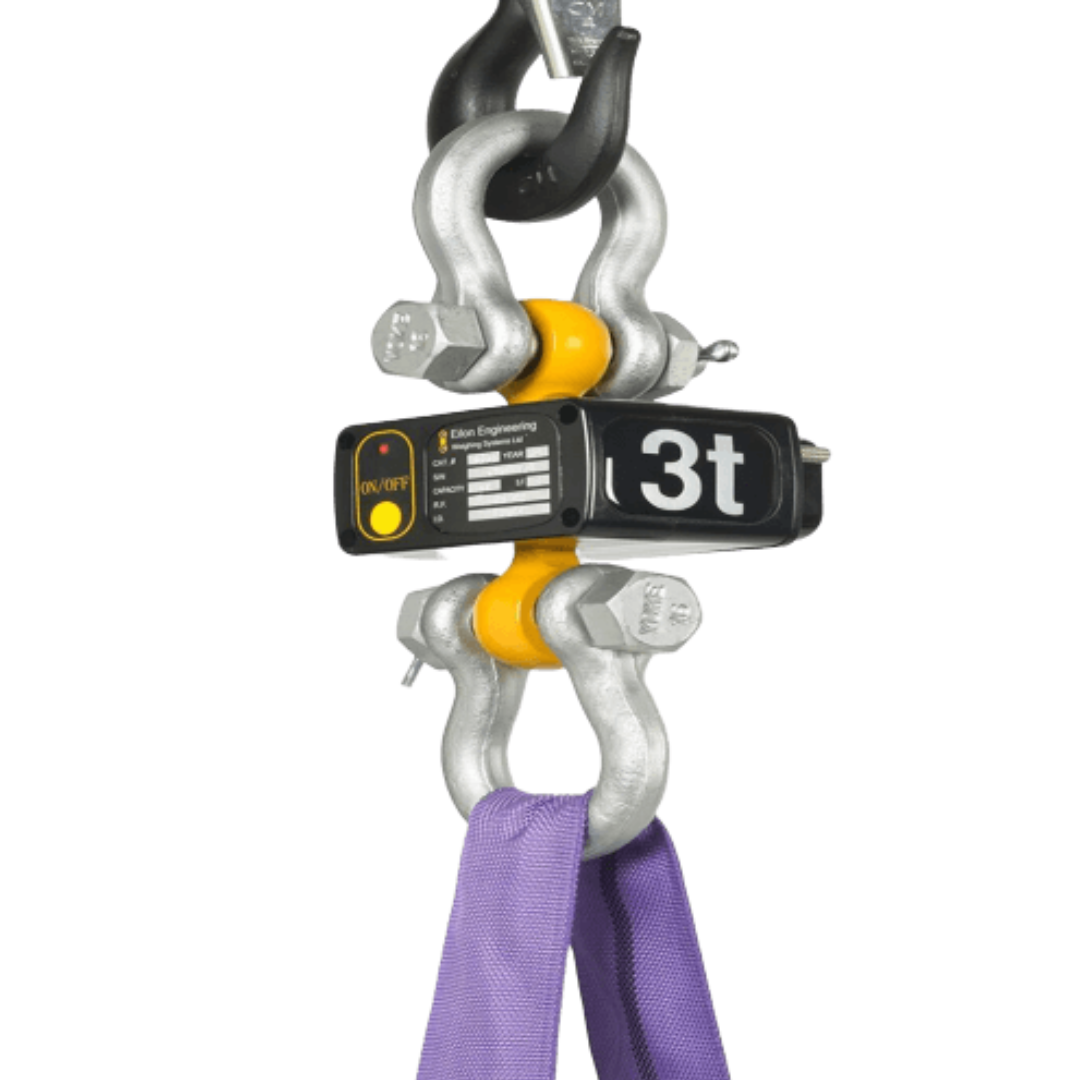

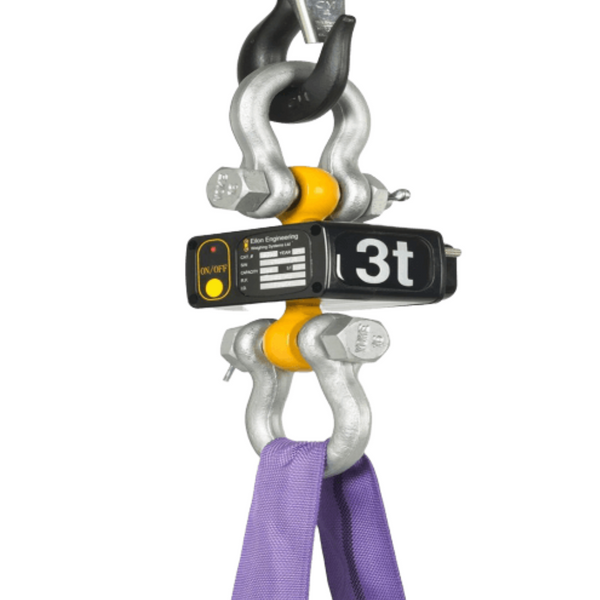

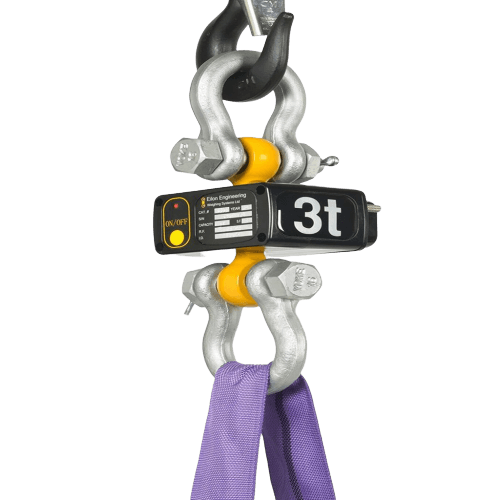

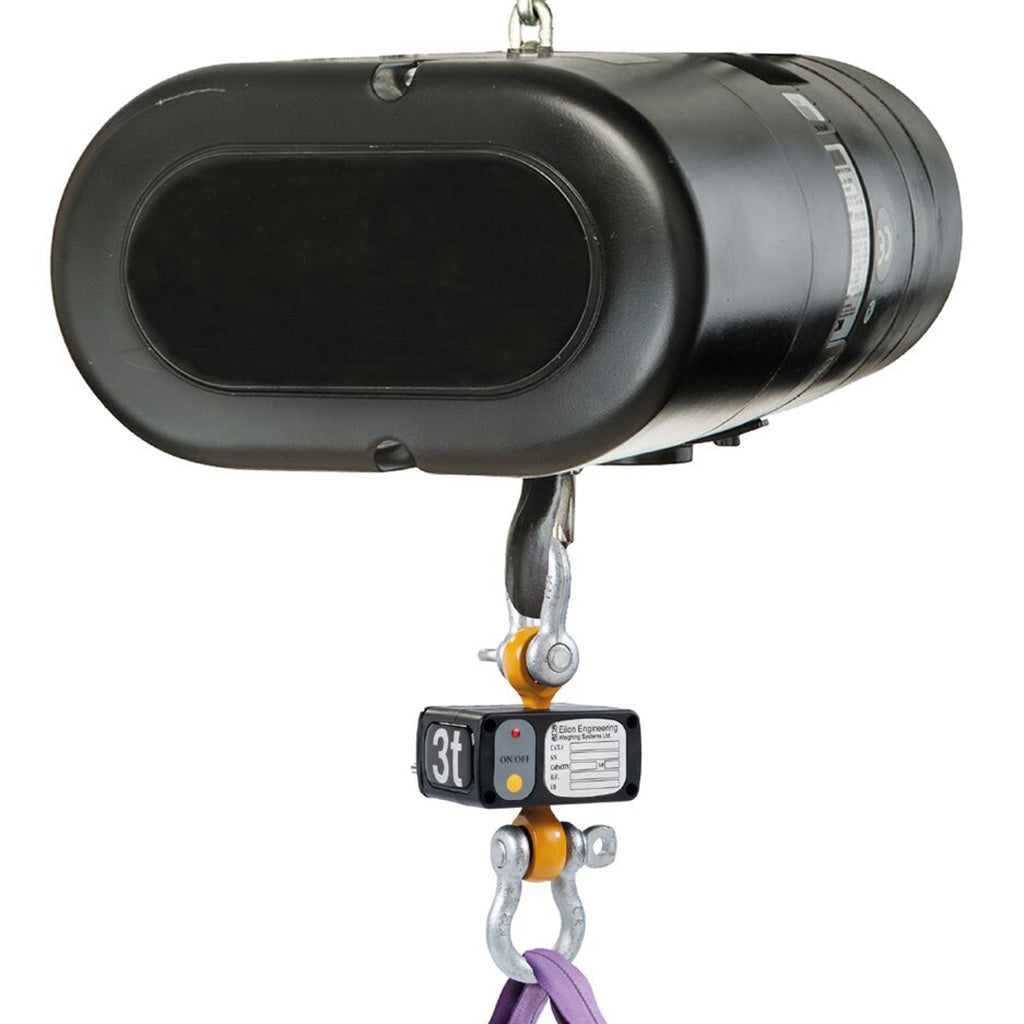

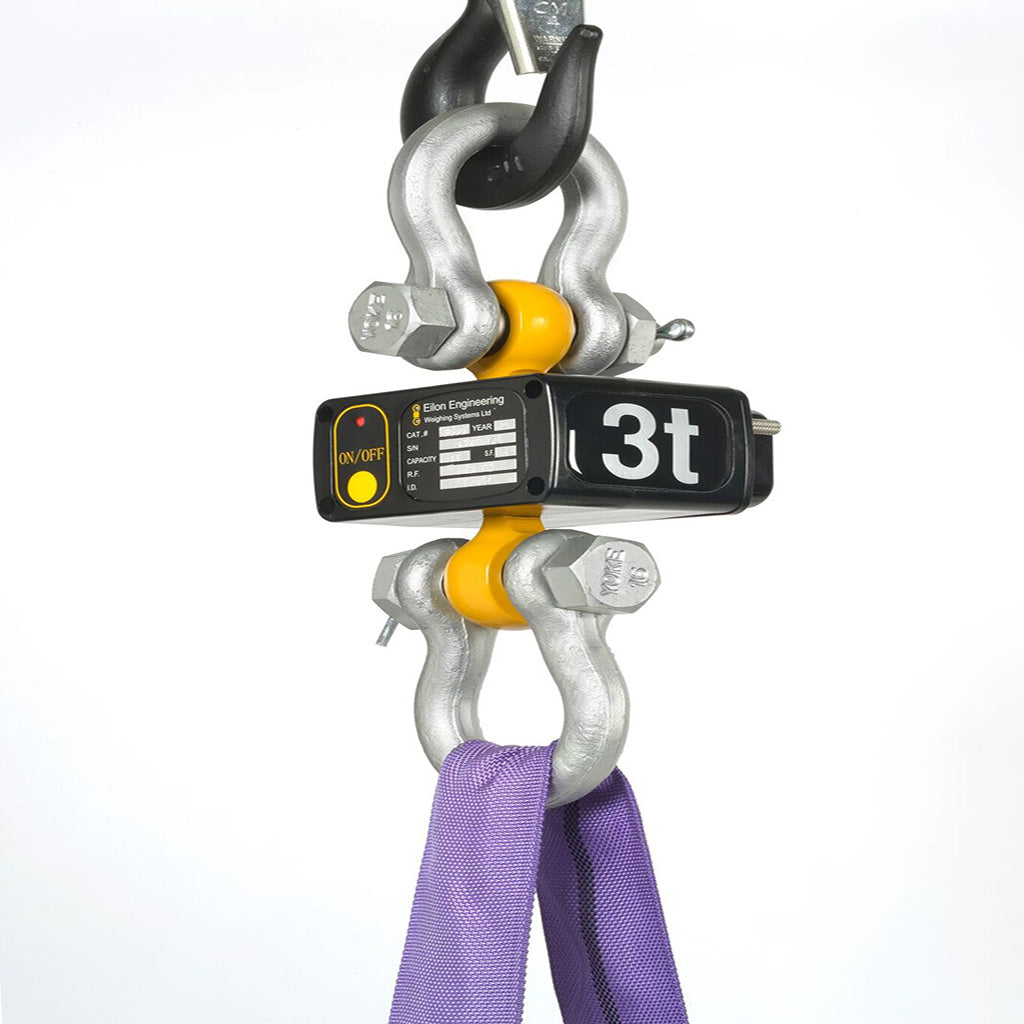

Ron StageMaster™ Wireless Classic Load Cell

The Ron StageMaster™ 6000 G4 Wireless Eilon Classic Load Cell helps to ensure safe events by offering real-time load monitoring and overload detection. With a range of capacities from 1/4 Ton to 6 Tons and a practically unlimited number of load cells that can be monitored at one time, the wireless Classic Load Cells offered by Eilon Engineering are unmatched in performance, safety and flexibility.

Product Literature

DOWNLOAD PRODUCT MANUAL

PRODUCT CODE	FULL RANGE (TONS)	SAFETY FACTOR	RESOLUTION (LBS.)	LOAD CELL WEIGHT (LBS.)	MATCHING ANCHOR SHACKLE SIZE (IN.)
S-0025-5	1/4	5	1	2.5	5/8, 1/2
S-0025-10	1/4	10	1	2.5	5/8, 1/2
S-005-5	1/2	5	1	2.5	5/8, 1/2
S-005-10	1/2	10	1	2.5	5/8, 1/2
S-01-5	1	5	2	2.5	5/8, 1/2
S-01-10	1	10	2	2.5	5/8, 1/2
S-015-5	1.5	5	5	2.5	5/8, 1/2
S-015-10	1.5	10	5	2.5	5/8, 1/2
S-02-5	2	5	5	2.5	5/8, 1/2
S-02-10	2	10	5	2.7	3/4, 5/8
S-025-5	2.5	5	5	2.5	5/8, 1/2
S-025-10	2.5	10	5	2.7	3/4, 5/8
S-03-5	3	5	5	2.5	5/8, 1/2
S-03-10	3	10	10	4.5	11/4, 11/8, 1
S-04-5	4	5	5	2.7	3/4, 5/8
S-04-10	4	10	10	4.5	11/4, 11/8, 1
S-05-5	5	5	10	2.7	3/4, 5/8
S-05-10	5	10	10	4.5	11/4, 11/8, 1
S-06-5	6	5	10	4.5	11/4, 11/8, 1
S-06-10	6	10	10	4.5	11/4, 11/8, 1

R.F.: 2.4 GHz range

R.F. Transmission Range: Up to 450'/150m in normal operation

Safety Factor: 5:1 and 10:1 standard

Safety Features: Fatigue rated load cells that can withstand successive load cycles for long periods of time without the risk of failure or damage to the steel.

Proof Load: 200%

Accuracy: ± 0.1% of full range

Capacities: 2t standard capacity with range of capacities from 0.25t to 6t

Display: Using a laptop or PC, the operator can monitor and control the loads up to 200 load cells per monitoring station simultaneously, having on one single screen all the relevant information derived from the load cells: Sum (group sum and total structure sum); Max; Tare; Zero; Group (LC); Overload detection; Stage-plan layout; Low battery indication; etc.

Functions: Sum, Max, Tare, Zero, Group (LC), Overload detection and alert (visual and audible), Low battery indication, Reports data base, User calibration, Group functions (Sum, Max, Zero, Tare, Overload and customized overload detection), Plan/layout archiving

Additional Features: Tablet and smart phone compatible

Units: Selectable: Tons, Kgs, Lbs.

Load Cell Material: Made of high-strength, aerospace quality low alloy steel, polyurethane coated

Power: 4 x AA 1.5 Volt Alkaline disposable batteries rated 3Ah for each load cell; Batteries will function up to 5000 hours

Calibration: User calibration. Initial factory calibration, certified and traceable to NIST

Temperature Range: Load Cell: -15°F to +175°F / -25°C to +80°C

Environmental: Weatherproof; Nema 4; IP 65
