Ron StageMaster™ Wireless Shackle Pin Load Cell Kit w/ Standard Receiver

Eilon Engineering


Number of Channels
Capacity & Safety Factor

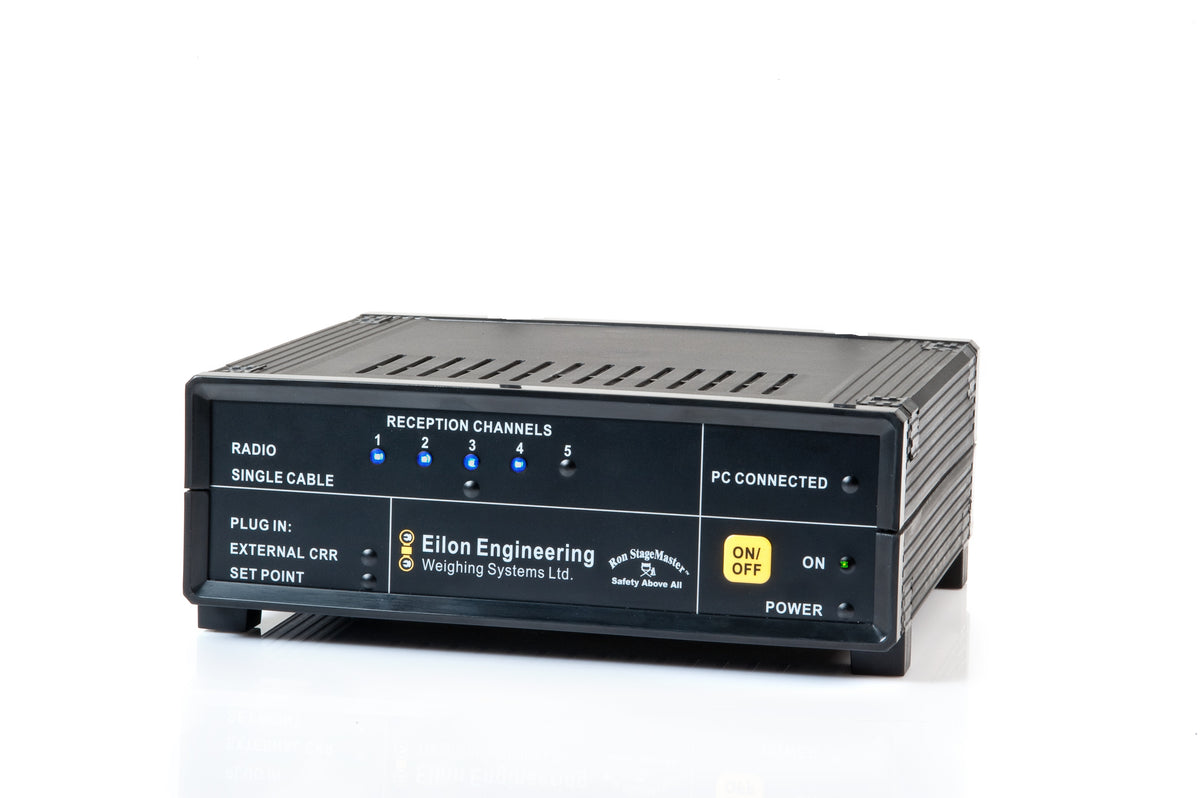

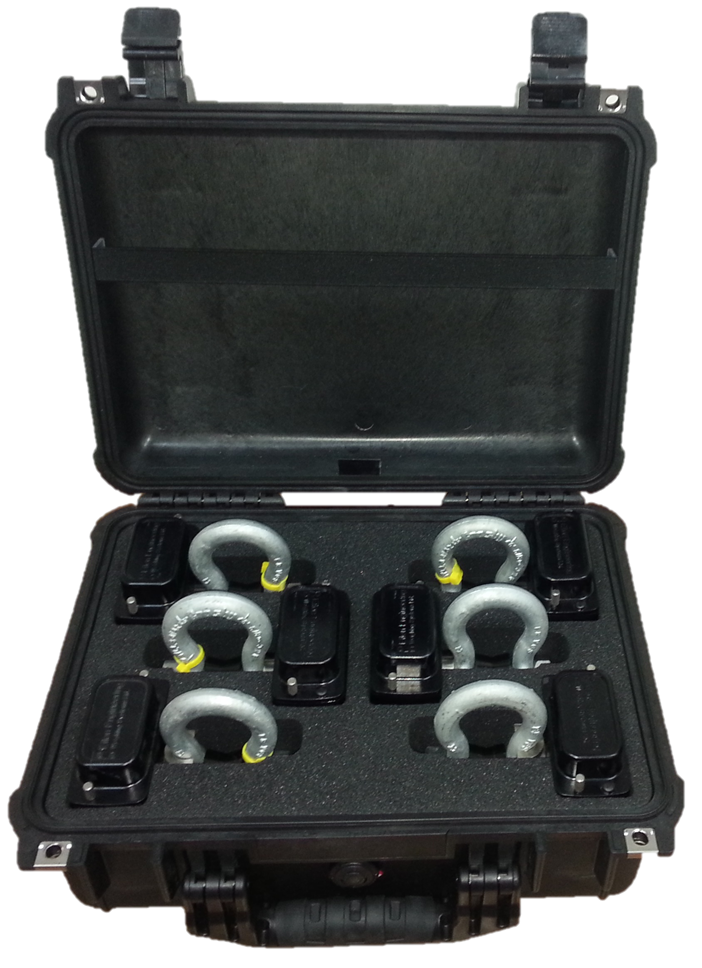

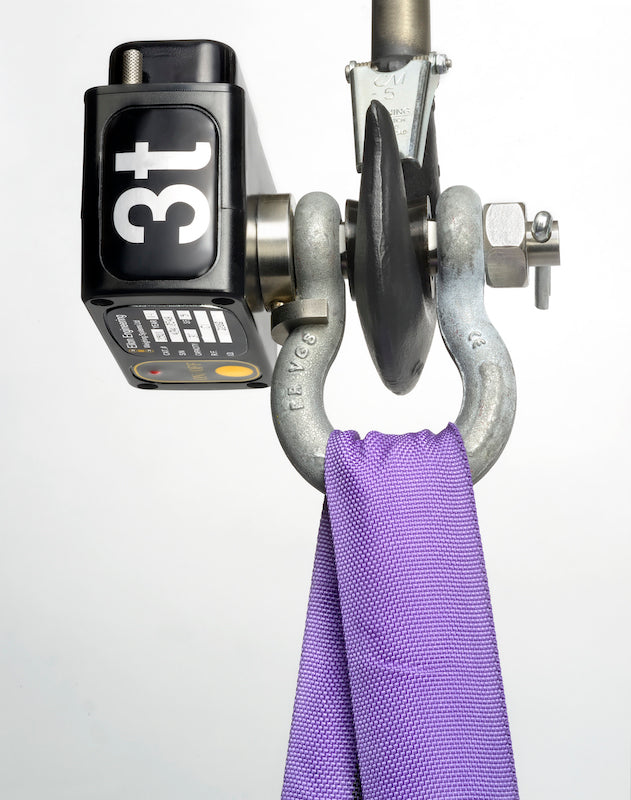

The Ron StageMaster™ 6000 G4 Wireless Eilon Shackle Pin Load Cell offers real-time load monitoring and overload detection in a compact installation. By replacing the pin of a 5/8" shackle, these load cells eliminate the need for a second shackle, significantly reducing the overall height of the installation.  This kit includes everything you need to get started, including a model CRR-S receiver, load cells (quantity equal to the number of channels selected) and cases for the load cell (each case holds 6 load cells).

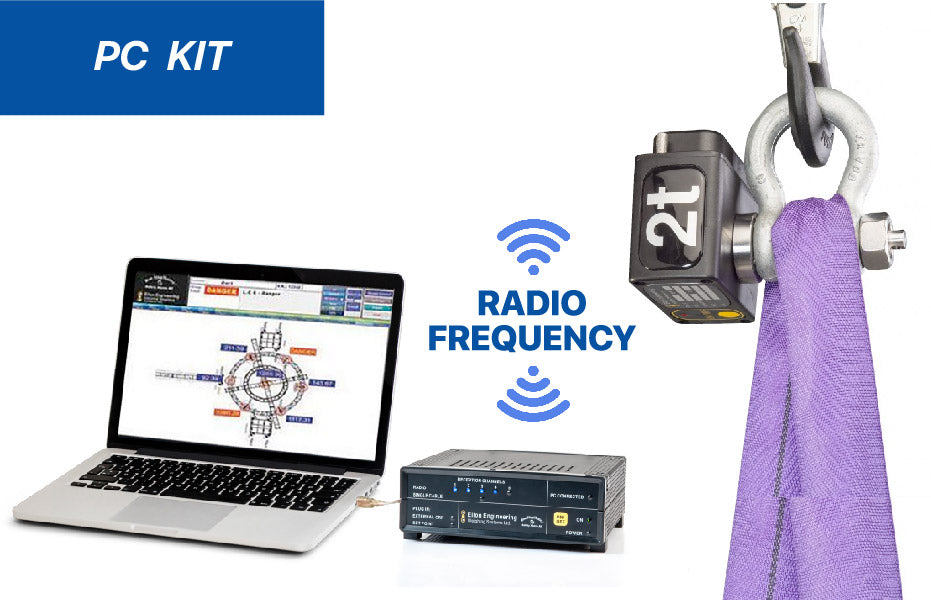

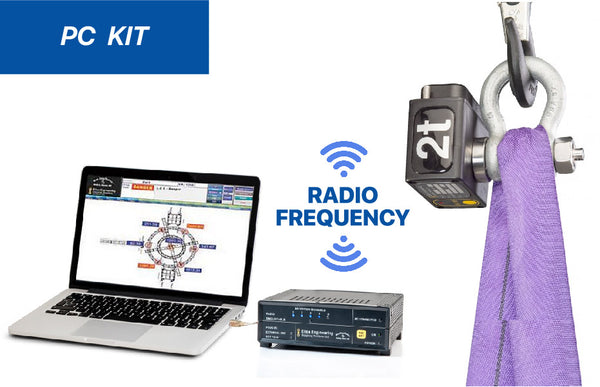

Each load cell installs easily into a 5/8" shackle, communicates wirelessly up to 450 feet to the receiver, measures weight with a 1% accuracy, and stores easily in the provided case. The CRR-S receiver creates a real time load map for up to 100 connected load cells which can be separated into up to 15 groups, each set with independent overload limits. The status of all connected load cells is displayed in a single laptop screen, allowing you to easily identify and locate any overload situation quickly and easily. Continuous data logging allows you to record months worth of measurements.
