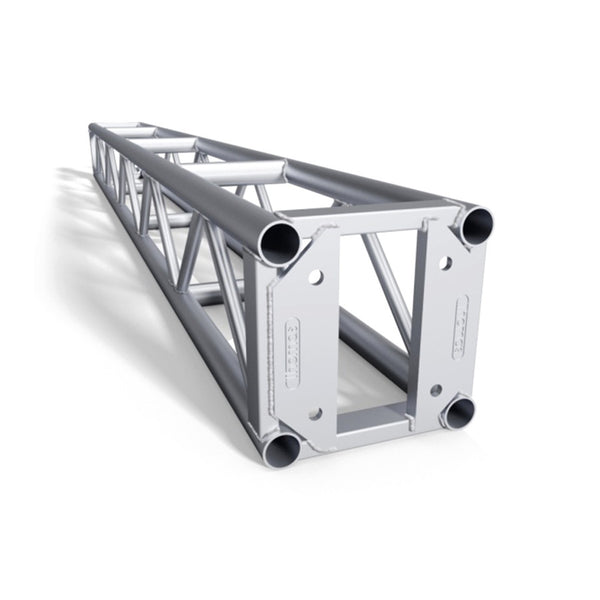

JTE General Purpose Truss (Thomas Truss) 12'' x 12'' Plated

JTE

B0700

Size


Thomas Truss 12 x 12 Plated

James Thomas Engineering truss manufacturer's General Purpose Truss, also simply known as Thomas Truss, is one of the most common truss products used in event production. General Purpose(GP) truss is constructed out of aluminum tubing and is designed for top performance at conferences, exhibitions, and small venue work. Suitable sleeve blocks and towers can be incorporated with this truss to build the JTE Ground Support System. We offer 12 x 12 GP truss in a variety of lengths.

Please refer to the Load Chart tab for all allowable load data, and download the JTE GP/Thomas Truss 12 x 12 spec sheet for reference. Bolts are included for assembly.

For large orders, call (570)826-5566 for special bulk pricing, or submit a Request For Quote and one of our sales team members will get back to you with our best price.

MATERIAL: 6082T6 or 6061T6 Aluminum

FIXING: Bolts are supplied for assembly of truss elements

DIAMETER: Main Chords: 2“ Dia x 0.125“ wall & Diagonal Chords: 1“ Dia x 0.125“ wall

LENGTH: 5', 8' and 10'

WEIGHT:

  • 10’ – 55 lbs
  • 8’ – 46 lbs
  • 5’ – 35 lbs
  • 5-Way Corner Block – 17.5 lbs
  • 2“ dia x 0.125“ wall and 1“ dia x 0.125“ wall 6082T6 or 6061T6 aluminum tubing
    MAXIMUM ALLOWABLE UNIFORM LOADS MAXIMUM ALLOWABLE CENTER POINT LOADS

    SPAN (FT)

    LOAD (LBS) MAX DEFLECTION (IN) LOAD (LBS) MAX DEFLECTION (IN)
    10 6140 0.28 4497 0.315
    20 3100 1.10 1550 1.10
    30 1726 2.21 864 2.21
    40 855 2.96 428 2.96
