TLS 16 Inch Mega-Truss Pick, 1 ton

Product No. MTP16


🎄 Due to the busy Christmas period, please note that orders placed between Monday 16th December and Thursday 2nd January may take longer than usual to be delivered.

Regular price $210.81 USD
FINISH
STYLE
Shipping calculator
Please select country
Please enter correct zip code
Payment methods
amazon_pay american_express apple_pay diners_club discover google_pay master shopify_pay visa
Product details

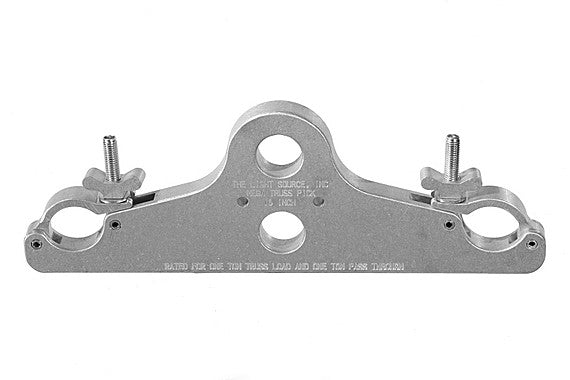

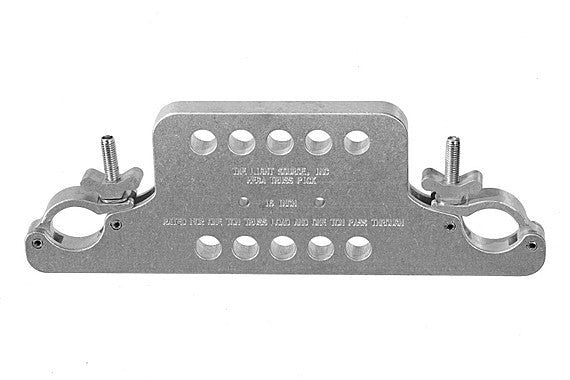

1" x 6″ × 17-3/8" 6061T-6 Aluminum CNC machined with pockets to support one piece of 16" truss. Truss is secured by two aluminum pivoting links, half inch swivel bolts, and our solid wing nuts. Has two rigging holes for shackles, motor, or chain hook. The Mega-Truss Pick will suspend one ton of truss, and an additional one ton load suspended under the truss.

The Mega-Truss Pick has one top and one bottom rigging hole for attaching the truss to a shackle, motor, or chain hook. The Mega-Truss Pick will suspend up to one ton of truss load, plus an additional one ton load suspended under the truss. The Mega-Truss Pick weighs less than 4 pounds for the 12" truss version. Fits 5/8" Shackle and larger. Other models are available for 12", 18", 24", and 30" truss.
________________________________________________________________

Please note that these do not fit a Global Truss or Applied Truss. See Global Truss Picks for correct part # to order. For Applied Truss you will need to call us with specifications.
_________________________________________________________________

Christie Lites 16" Truss Picks are 1″ × 4″ × 17-3/8" machined with pockets to support one piece on Christie Lites 16" (400mm) truss.

Working Load Limit
1 ton truss

Hardware
1/2"-13 steel swivel eyebolts with our solid aluminum wing nuts

Dimensions
1″×6″×17-3/8"
Actual single center hole is 1.5" wide
Actual multi-hole single hole is 5/8" wide

Weight
5 pounds

Case Quantities
Each
