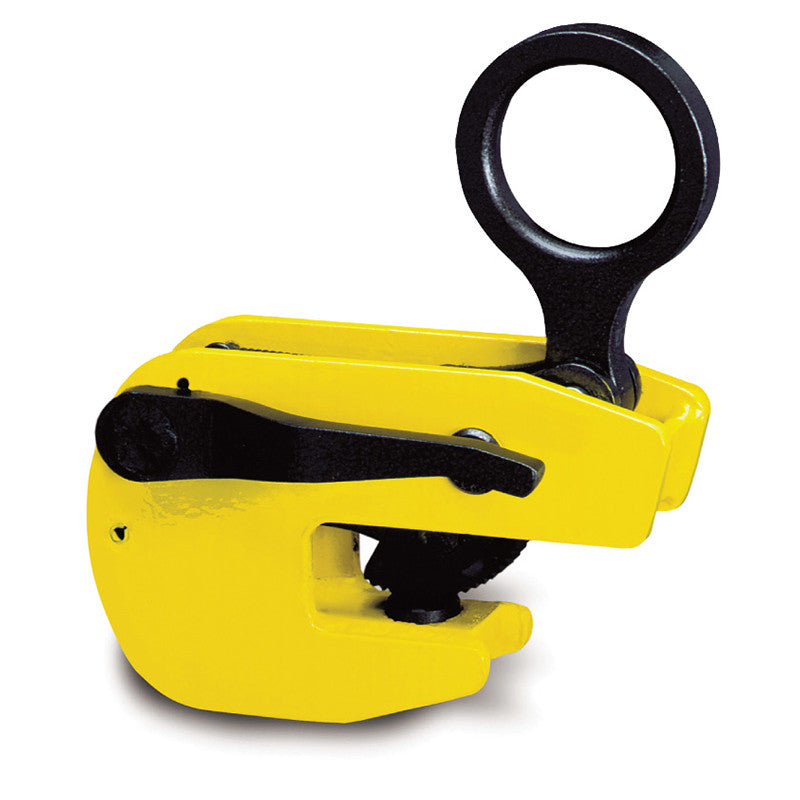

Camlok™ TTG Horizontal Girder Clamp
Product No. N50901951
🎄 Due to the busy Christmas period, please note that orders placed between Monday 16th December and Thursday 2nd January may take longer than usual to be delivered.
Regular price
$2,289.00 USD
Shipping calculator
Please enter correct zip code
Payment methods
Product details
Camlok TTG Horizontal Girder Clamps are designed to lift and transport structural steel beams in the horizontal position. These products are fitted with a Camlok spring-operated safety lock for extra peace-of-mind and safety.
- Designed to lift and transport structural steel beams in the horizontal position
- Fitted with a Camlok spring-operated safety lock and is operated by pulling the lock upwards
- For short beams, a single clamp can be used. Long beams should be lifted using 2 clamps attached to opposite beam flanges
- Maximum hardness of material to lift should not exceed 300 Brinell (32HRc)
- Chart Note: *Not Stocked
- Design factor 4:1
| Product Code | Working Load Limit | Plate (in) | Dimensions (in) * | Weight (lbs) | ||||||
| Minimum (lbs) | Maximum (lbs) | A | B | C | D | E | F | |||
| TTG1500 | 200 | 3,300 | 0 to 1-1/8 | 9 | 10.875 | 3.75 | 1.75 | 2.75 | 4 | 12.1 |
| TTG3000 | 350 | 6,600 | 0 to 1-3/8 | 11.125 | 11.625 | 3.125 | 2.125 | 2.875 | 4.5 | 24.3 |
| TTG4500 | 1,000 | 9,900 | 0 to 1-1/2 | 12.375 | 13.25 | 3.5 | 2.375 | 3 | 4.625 | 32 |
| TTG7500 | 1,650 | 16,500 | 0 to 1-3/4 | 14.5 | 15 | 4.375 | 2.5 | 3.625 | 6.625 | 61.7 |

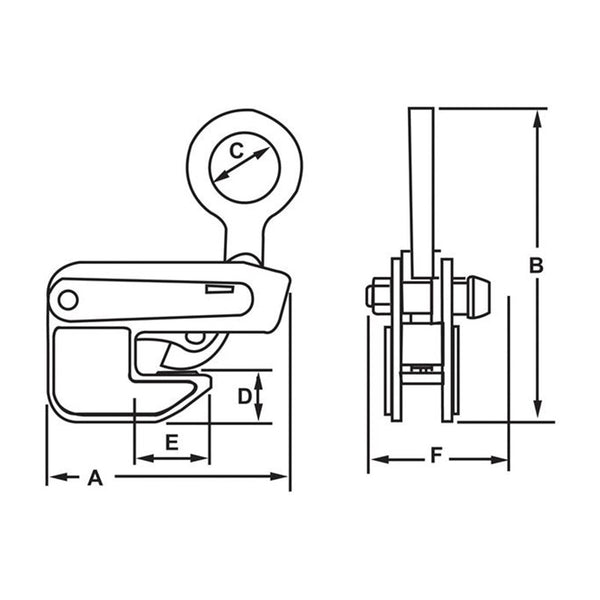

* Refer to product drawing above
