Doughty Pipe to Wall Brackets (Steel)

Doughty Pipe to Wall Brackets (Steel)

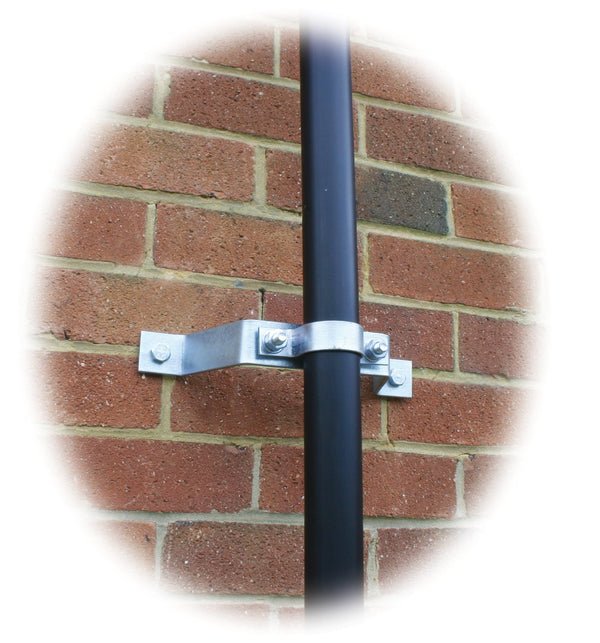

The Doughty Pipe to Wall Steel Bracketry is designed primarily to be wall mounted, allowing fixtures and tubes to be suspended from a vertical surface.

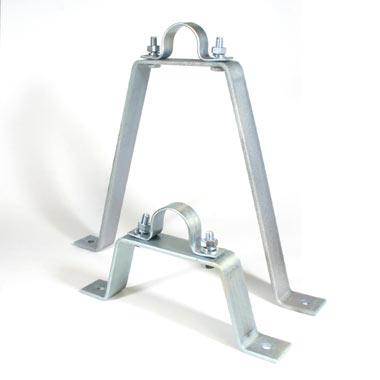

These Pipe-to-Wall Brackets are available in two sizes providing a stand off of 3.9'' and 11.8''.

For any inquiries, please contact us via chat.

Downloads:

User Manual

Key Features:

• Designed for secure wall mounting of pipes and fixtures
• Available in two stand off sizes: 3.9'' and 11.8''
• Constructed from durable mild steel for long-lasting performance
• Bright zinc-plated finish for corrosion resistance
• Compatible with 2'' diameter tubes

Specifications:

• Tube Diameter: ⌀2''
• SWL & Product Weight:
  T33300 (11.8'' stand off): 66 lbs & 3.3 lbs
  T33310 (3.9'' stand off): 132 lbs & 1.8 lbs
• Material: Mild Steel
• Finish: Bright Zinc-plated
• Fixing Holes: ⌀0.4''
