Doughty TV Clamp

Doughty TV Clamp

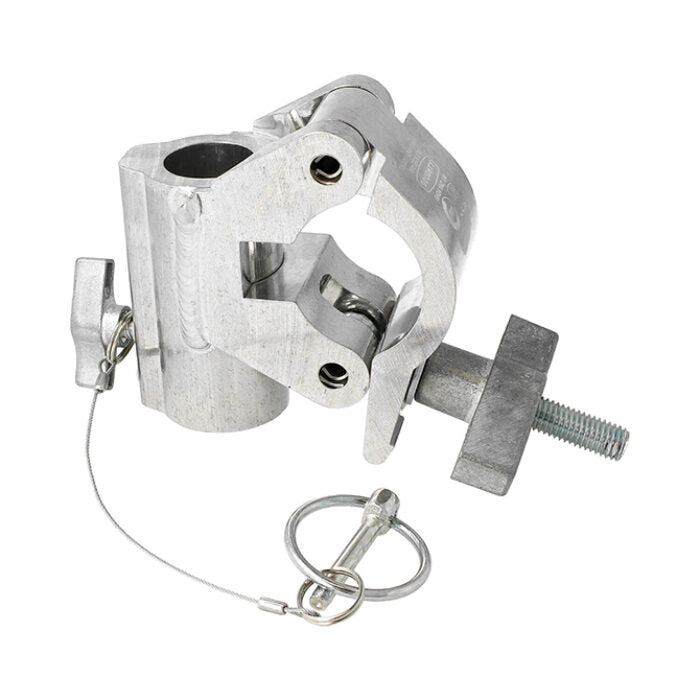

A high tensile extruded aluminium clamp that is suitable for 48mm to 51mm (1.89″ – 2.01″) diameter tubes and is 50mm (1.97″) wide cleverly designed to accept a 28mm (1.10″) diameter spigot. Supplied with lynch pin for secondary locking, this clamp is designed predominantly for use in the TV/Film industry and is used with Drop Arms and Pantographs. Available in polished silver or powder coated black.

Downloads:

Data Sheet

Key Features:

• High tensile extruded aluminium construction
• Designed to accept a 28mm (1.10″) diameter spigot
• Supplied with lynch pin for secondary locking
• Ideal for use with Drop Arms and Pantographs in TV/Film applications

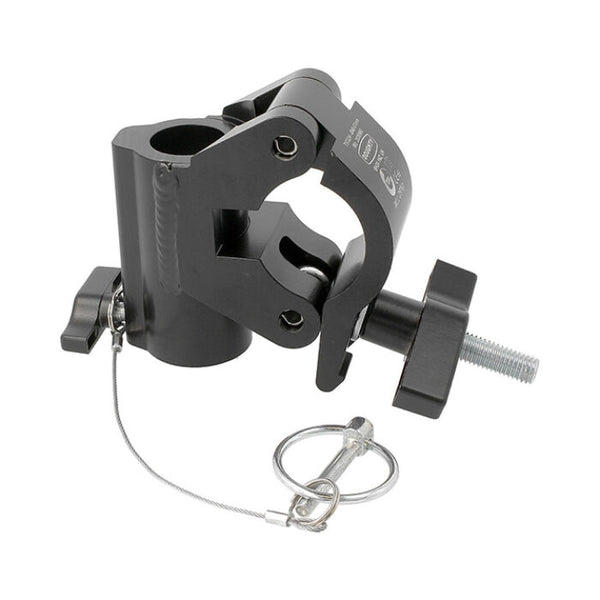

• Available in polished silver or powder coated black finishes

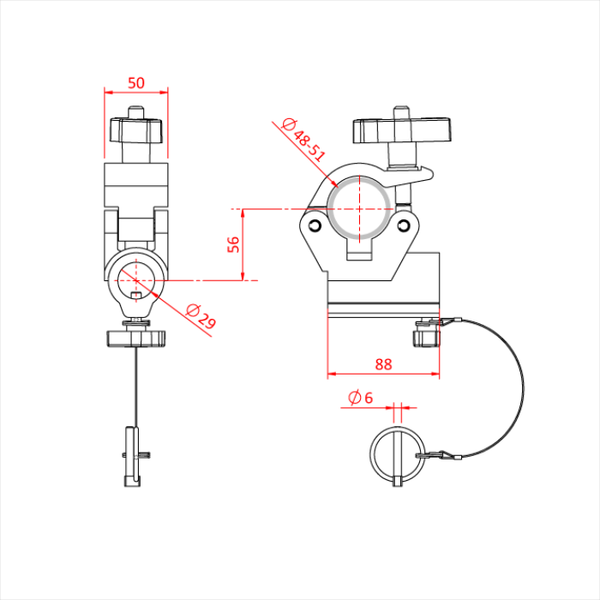

Specifications:

• WLL: 250Kg
• Tube Diameter: 48mm – 51mm (1.89” – 2.01”)
• Clamp Width: 50mm (1.97")
• Spigot Diameter: 28mm (1.10″)
• Material: High tensile extruded aluminium

References:

• TV/Film industry rigging standards
• Doughty Engineering product series
• Compatible with Drop Arms and Pantographs
