Doughty Hanging Clamp – 500Kg

Doughty Hanging Clamp – 500Kg

The industry standard half coupler factory fitted with an Eye Nut. A high tensile extruded aluminium clamp that is suitable for 48mm to 51mm (1.89″ – 2.01″) diameter tubes and is 50mm (1.97″) wide. Ideal for trussing as it will not damage the cords.

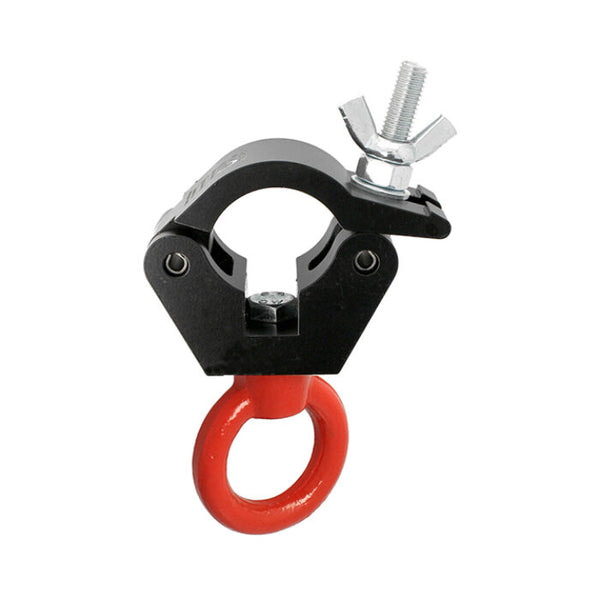

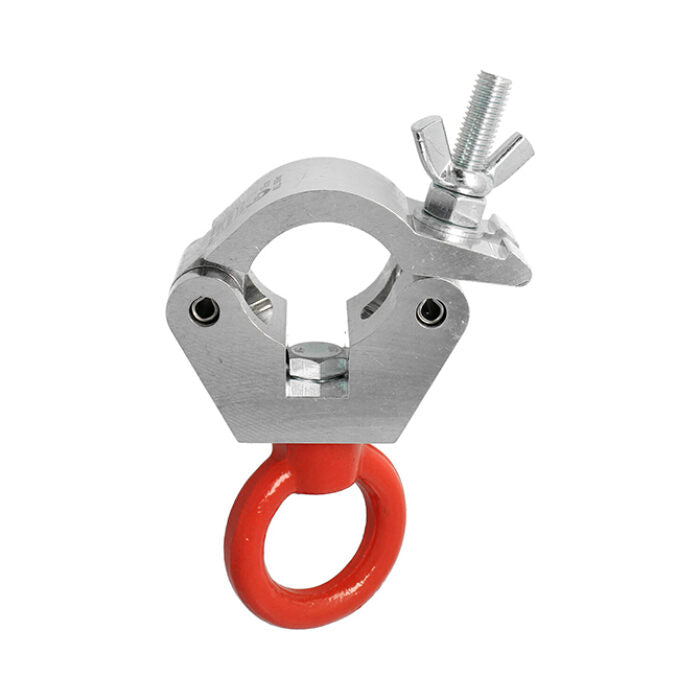

Available in polished silver or powder coated black.

WLL: 500Kg

Downloads:

User Manual

Key Features:

• Industry standard half coupler with factory-fitted Eye Nut
• Constructed from high tensile extruded aluminium
• Compatible with tube diameters from 48mm to 51mm (1.89″ – 2.01″)
• Clamp width of 50mm (1.97″)
• Available in polished silver or powder coated black finish

Specifications:

• WLL: 500Kg

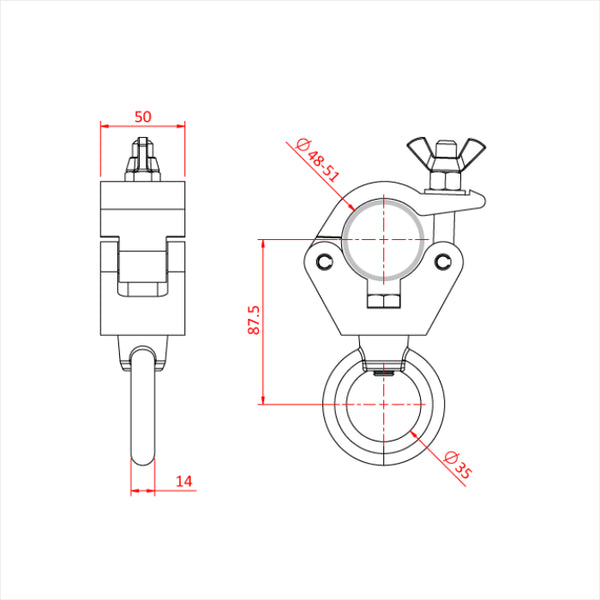

• Tube Diameter: 48mm – 51mm (1.89” – 2.01”)
• Clamp Width: 50mm (1.97")
• Material: High tensile extruded aluminium
• Finish Options: Polished silver or powder coated black

References:

• Data Sheet: T57207-T57208
• Manufacturer: Doughty
• Application: Trussing and rigging support
