Doughty Low Profile Swivel Coupler (Cheeseboro)

Doughty Low Profile Swivel Coupler

(Cheeseboro)

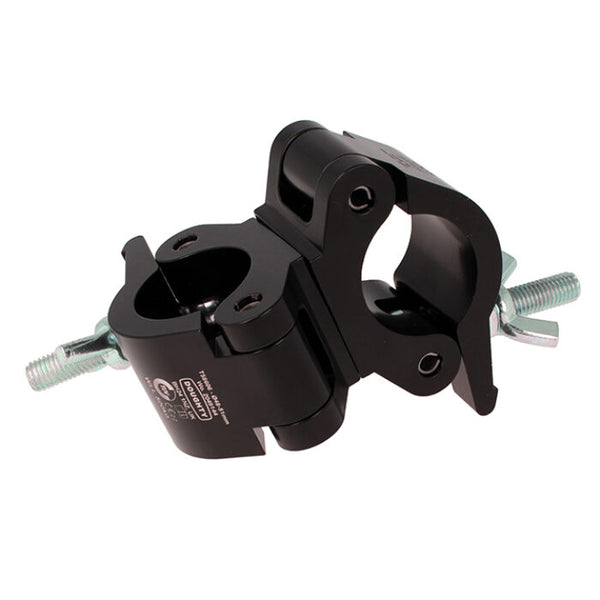

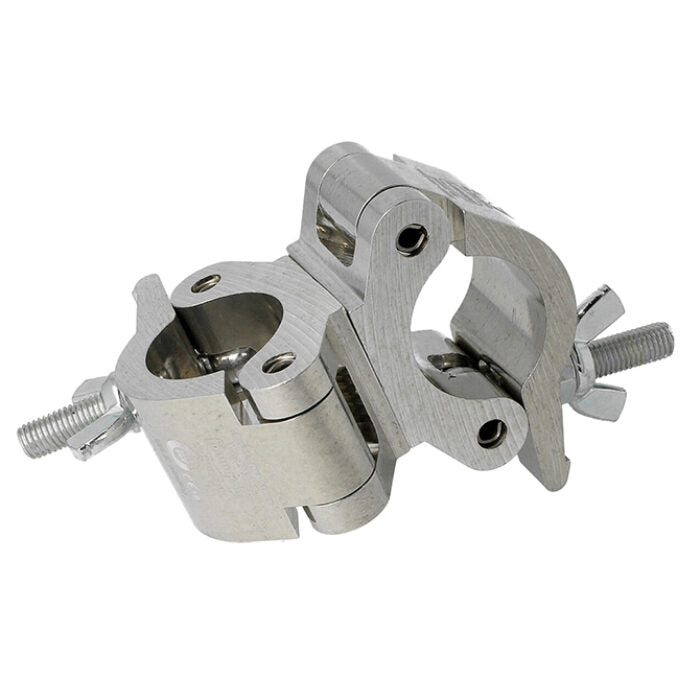

A pair of high tensile extruded slimline aluminium clamps back to back and designed to swivel that are suitable for 48mm to 51mm (1.89″ – 2.01″) diameter tubes and are 50mm (1.97″) wide. It has a WLL of 500Kg and is ideal for trussing as it will not damage the cords. Available in polished silver or powder coated black.

This low profile swivel coupler provides a robust and flexible connection between truss tubes, ensuring maximum safety and compatibility without compromising on space or weight. Engineered for durability and performance, it is a reliable solution for a wide range of rigging applications.

Perfectly suited for professional staging, lighting, and rigging setups where a low profile and strong clamp is essential. Designed to swivel, it offers excellent positioning flexibility while maintaining a secure hold.

Downloads:

User Manual

Key Features:

• High tensile extruded slimline aluminium construction
• Designed to swivel for enhanced flexibility in positioning
• Compatible with 48mm to 51mm (1.89″ – 2.01″) diameter tubes
• Low profile design minimizes risk of damage to truss cords
• Available in polished silver or powder coated black finish

Specifications:

• WLL: 750Kg
• Tube Diameter: 48mm – 51mm (1.89” – 2.01”)
• Clamp Width: 50mm (1.97")
• Tube Centres: 75mm (2.95")
• Material: High tensile extruded aluminium

References:

• Manufacturer: Doughty
• Product Code: T58605 / T58606
• Data Sheet: Download PDF

Choose the Doughty Low Profile Swivel Coupler for a secure, reliable, and professional rigging solution that meets industry standards and ensures optimal performance in every setup.

What is a Cheeseboro?

Cheeseborough clamps, also known as Cheeseboro, Scaffold Clamps, Couplers, Swivels, or even Cheese-burger or Burger Clamps, originate from the Chesebro-Whitman manufacturing company of New York. These devices are used for connecting iron pipes or aluminum tubes and are available in two styles: rigid (fixed 90°) or swivel.
