Doughty Slimline Lightweight Swivel Coupler - 2'' Diameter, (Cheeseboro)

Doughty Slimline Lightweight Swivel Coupler - 2'' Diameter, (Cheeseboro)

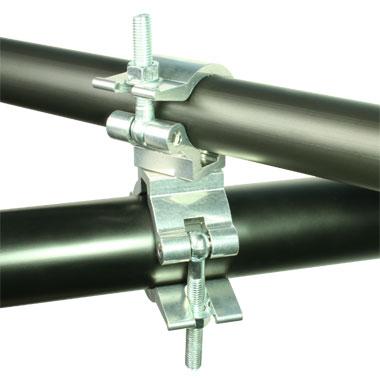

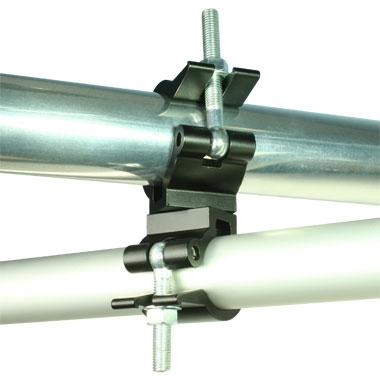

This Doughty Mammoth Swivel Coupler with different clamp-head sizes provides a firm fixing between adjacent tubes (2'' & 2.5'' diameter) at any angle whilst allowing 360 degrees of movement.

Manufactured from high tensile Aluminium Extrusion. Widely used in theatre, film, TV and photographic industries.

For any inquiries, please contact us via chat.

Downloads:

User Manual

Key Features:

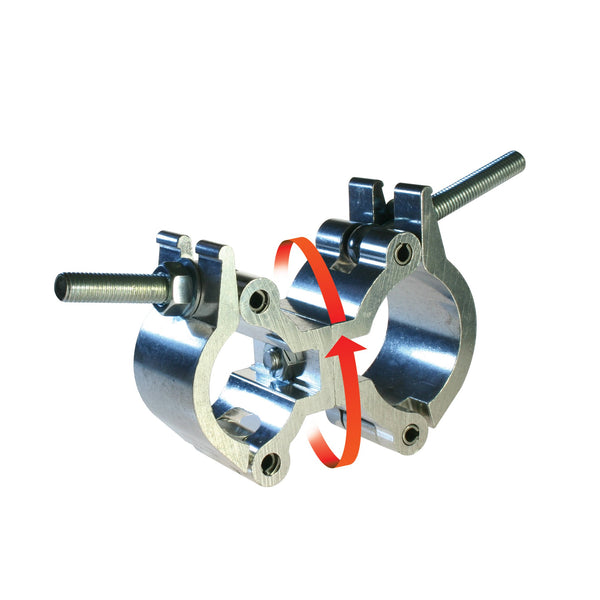

• 360-degree swivel movement for versatile rigging configurations
• Compatible with 2'' and 2.5'' diameter tubes
• Constructed from high tensile aluminum for durability and strength

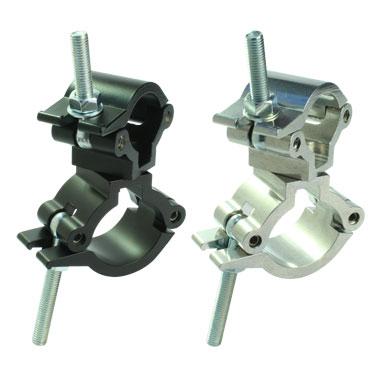

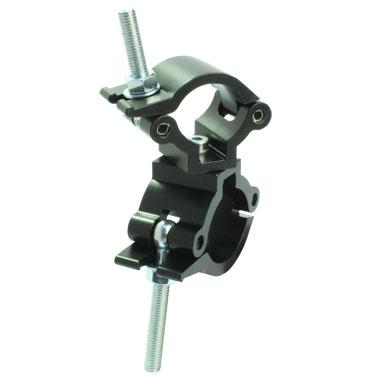

• Available in polished aluminum or black powder paint finish
• Widely used in film, TV, theatre, and photographic applications

Specifications:

• SWL: 1102 lbs
• Tube Diameters: 2'' & 2.5''
• Width: 1.97''
• Weight: 2 lbs
• Material: High tensile aluminum

References:

• Spec Sheet
• Cert
• Doughty Engineering official documentation

Cheeseborough clamps aka Cheeseboro, Scaffold Clamps, Couplers, Swivels and even Cheese-burger or Burger Clamps. The name is believed to derive from the Chesebro-Whitman manufacturing company of New York. The devices are used for connecting iron pipes or aluminum tubes. They come in two styles; rigid (aka fixed 90°) or Swivel.
