Doughty Solid Fixed Truss Adapter

Doughty Solid Fixed Truss Adapter

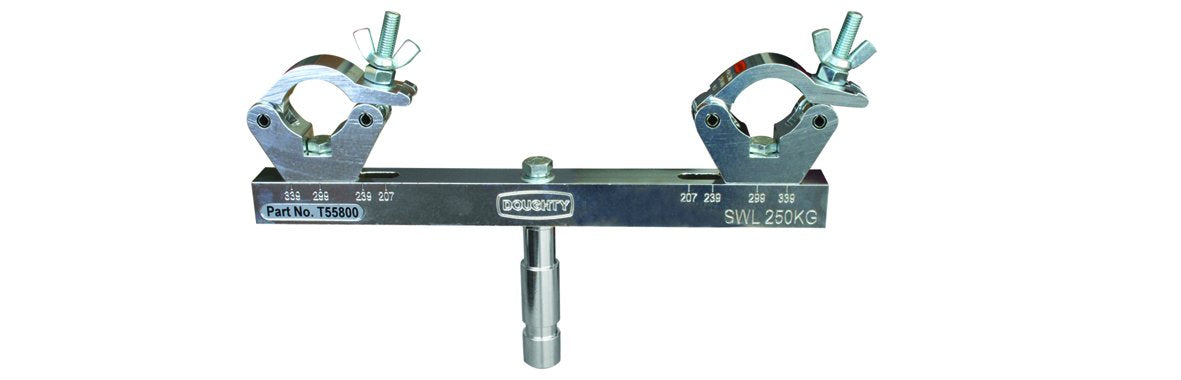

Manufactured from high tensile solid 6082-T6 aluminum, the Doughty Solid Fixed Truss Adapter is engineered to provide a safe and reliable solution for lifting truss systems. Its robust construction ensures long-lasting durability and performance in demanding rigging environments.

This fixed truss adapter features a 28mm diameter Euro-spec spigot, compatible with most standard receivers. It comes pre-drilled to suit most major truss brands and includes two Slimline Doughty Clamps for a secure and efficient setup.

Designed with slotted mounting points, the adapter allows for minor adjustments, enhancing flexibility during installation. Custom drilling options are available to match specific truss requirements. For any inquiries, please contact us via chat.

Downloads:

User Manual

Key Features:

• Constructed from high tensile solid 6082-T6 aluminum
• 28mm Euro-spec spigot for standard receiver compatibility
• Pre-drilled to fit most major truss brands
• Includes two Slimline Doughty Clamps
• Slotted for minor adjustment during installation

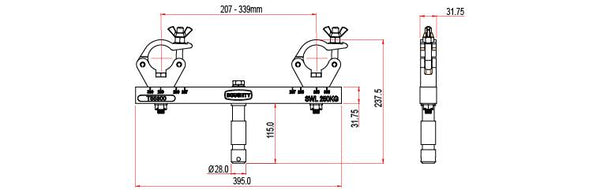

Specifications:

• SWL: 250 Kg
• Tube Diameters: 48mm to 51mm
• Truss Sizes: 207, 239, 299 & 339mm Ctrs
• Spigot: 28mm Euro Spec
• Weight: 2.20 Kg
• Material: Aluminum

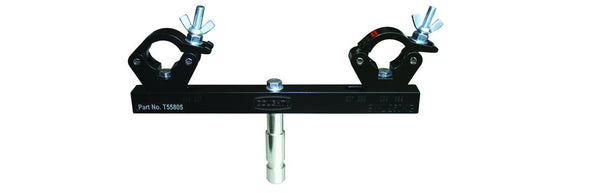

• Finish: Black or Polished Aluminum

References:

• Doughty Engineering Product Catalog
• Compatibility with major truss brands
• Custom drilling available upon request

We can supply Truss Adaptors drilled to suit your truss requirements
