Doughty Scissor Clamp

Doughty Scissor Clamp

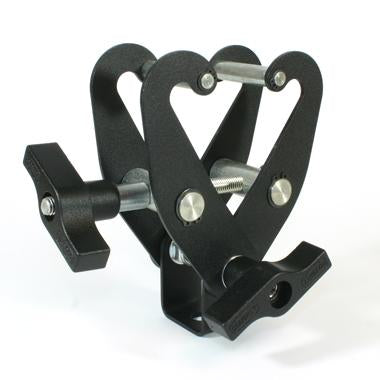

The Doughty Scissor Clamp has been designed to fit Girders and Tubes. Powder coated with two large easy grip handles, one handle secures the clamp to the girder while the other allows adjustment of the mounting cradle.

This gear is available in either Light Duty with an SWL of 220 lbs, or Heavy Duty with an SWL of 551 lbs.

For any inquiries, please contact us via chat.

Downloads:

User Manual

Key Features:

• Designed for secure mounting on Girders and Tubes
• Available in Light Duty (220 lbs SWL) and Heavy Duty (551 lbs SWL) versions
• Powder coated finish for durability
• Equipped with two large easy grip handles for quick adjustment
• Ideal for film/TV, theatre, and concert hall rigging setups

Specifications:

• SWL: 220 lbs (L/D) & 551 lbs (H/D)
• Girders: Up to 4.7'' x 0.6''
• Tubes: 2'' Diameter
• Fixing: M12 Hole
• Height: 6.7''
• Weight: 3 lbs (L/D) & 4.2 lbs (H/D)
• Material: Steel
• Finish: Powder Coated

References:

• Doughty Engineering – UK-based manufacturer since 1985
• Member of PLASA (Professional Light and Sound Association)
• Member of ESTA (Entertainment Services and Technology Association)

Dimensions are also included in the thumbnail.
