Doughty Half Coupler - Atom Clamps

Doughty Half Coupler - Atom Clamps

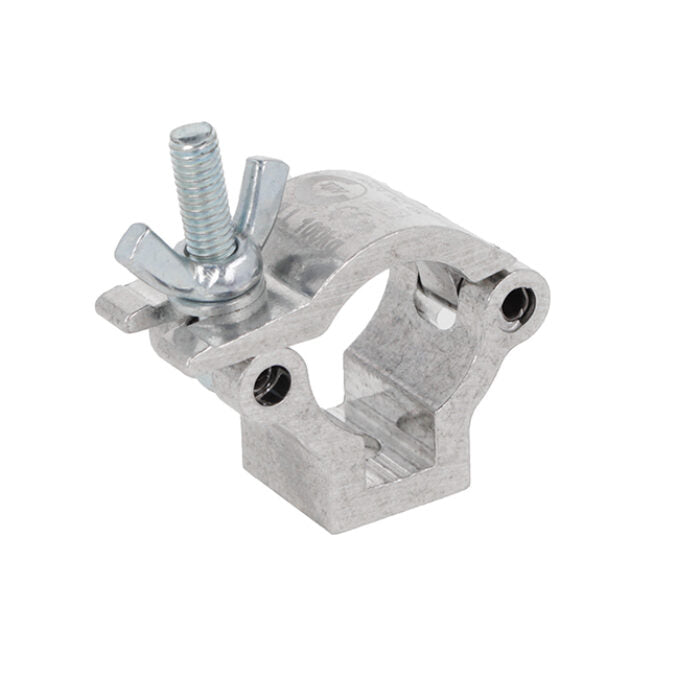

A high tensile extruded aluminium clamp that is suitable for 25mm (1″) diameter tubes. It has a WLL of 100Kg and is 21mm (0.83″) wide. Slotted to hold captive an M6 nut or bolt head. Ideal for decorative trussing as it will not damage the cords. Available in polished silver or powder coated black.

Downloads:

Data Sheet

Key Features:

• High tensile extruded aluminium construction
• Compatible with 25mm (1″) diameter tubes
• WLL (Working Load Limit) of 100Kg
• Slotted to hold captive an M6 nut or bolt head
• Available in polished silver or powder coated black finishes

Specifications:

• WLL: 100Kg
• Tube Diameter: 1" - 25mm
• Clamp Width: 21mm (0.83")
• Material: High tensile extruded aluminium
• Fastener Compatibility: Slotted for M6 nut or bolt head

References:

• Doughty Engineering Manufacturer Specifications
• Product Code: T58870 / T5887001
• Data Sheet: T58870-T5887001-Data-Sheet-US.pdf
