Doughty Modular Drop Arm Extension - 4 Lengths

Doughty Modular Drop Arm Extension - 4 Lengths

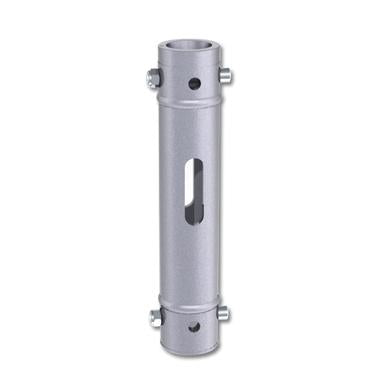

Doughty Modular Drop Arm Extensions are constructed from aluminum with a female tapered connector at each end. Engineered for flexibility and strength, these extensions are ideal for customized drop arm configurations in professional rigging applications.

Each extension is supplied with two tapered pins and nyloc nuts, allowing you to connect multiple units together to create a variety of lengths. A built-in slot is provided for a safety bond, ensuring secure installations in any setup.

These extensions are compatible with Doughty's T45755 Connector and are available in four different lengths—10'', 20'', 40'', and 79''. They come in a durable powder-painted finish, available in either silver or satin black to suit your project aesthetic.

Downloads:

User Manual

Key Features:

• Modular aluminum construction with female tapered connectors on both ends
• Includes two tapered pins and nyloc nuts for secure connection
• Compatible with Doughty's T45755 Connector
• Built-in slot for safety bond integration
• Available in four lengths: 10'', 20'', 40'', and 79'' with silver or satin black powder-painted finish

Specifications:

• Length: 10'', 20'', 40'' and 79''
• Diameter: 2''
• SWL: 220 lbs
• Material: Aluminum
• Finish: Powder-painted in silver or satin black

References:

• Spec Sheet
• User Manual
• Doughty T45755 Connector

Doughty Engineering, a UK-based manufacturer since 1985, is a global leader in rigging, suspension, and lifting equipment for the entertainment industry. As a member of PLASA and ESTA, Doughty is committed to delivering products that meet the highest safety and quality standards.
