Doughty Half Coupler - Atom Clamps

Product No. T58970

COLOUR
Save $25 when you subscribe to our newsletter (for orders over $250). Subscribe now
Shipping calculator
Please select country
Please enter correct zip code
Payment methods
amazon_payamerican_expressapple_paydiners_clubdiscovergoogle_paymasterpaypalshopify_payvenmovisa
Product details

Doughty Half Coupler - Atom Clamps

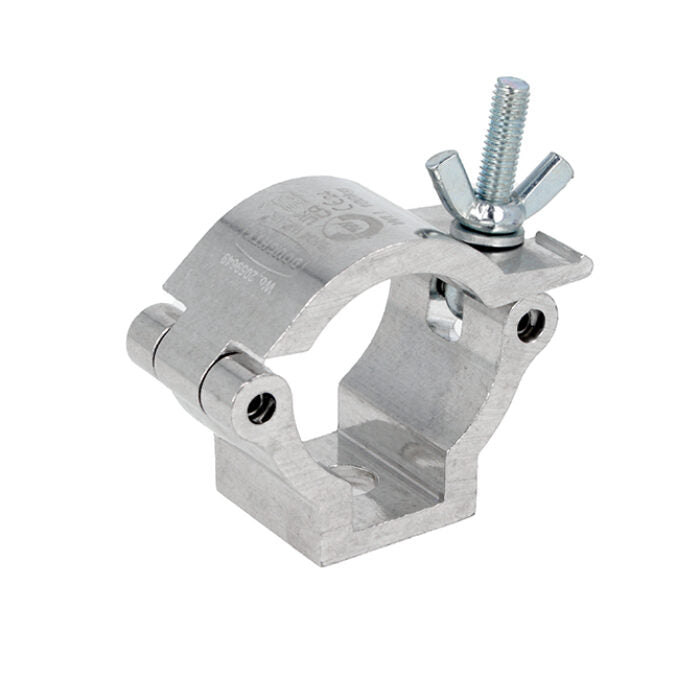

A high tensile extruded aluminium clamp that is suitable for 38mm (1.5″) diameter tubes. It has a WLL of 100Kg and is 30mm (1.18″) wide. Slotted to hold captive an M10 nut or bolt head. Ideal for decorative trussing as it will not damage the cords. Available in polished silver or powder coated black.


Downloads:

User Manual




Key Features:

  • Constructed from high tensile extruded aluminium for strength and durability
  • Compatible with 38mm (1.5″) diameter tubes
  • Working Load Limit (WLL) of 100Kg
  • Slotted design securely holds an M10 nut or bolt head

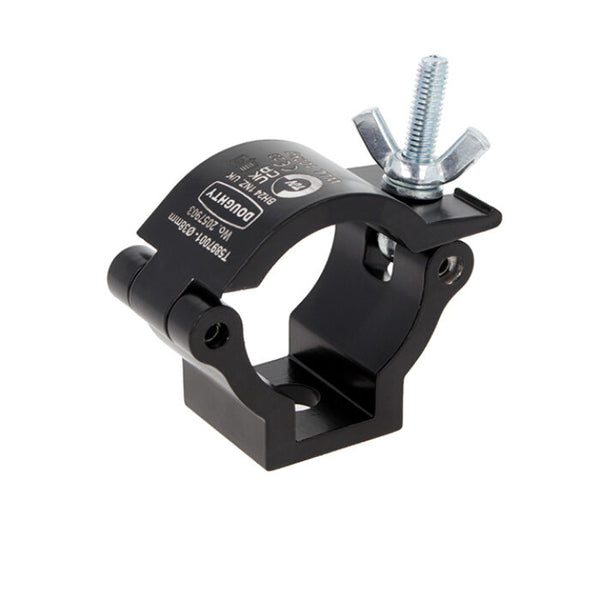

  • Available in polished silver or powder coated black finish

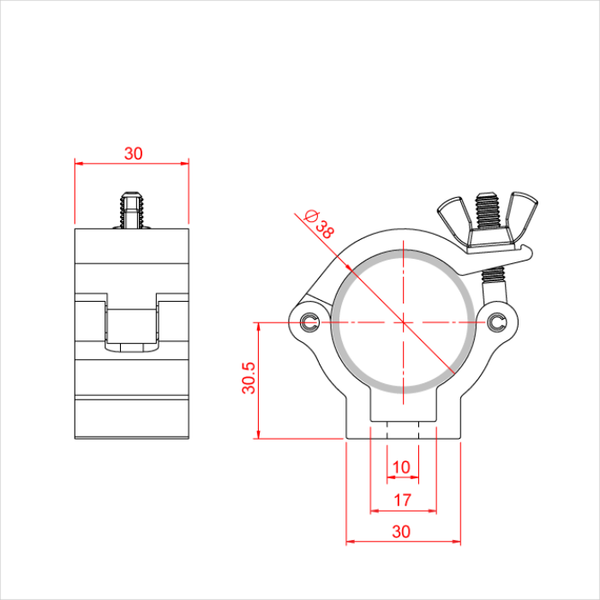

Specifications:

  • WLL: 100Kg
  • Tube Diameter: 1½"-38mm
  • Clamp Width: 30mm (1.18")
  • Material: High tensile extruded aluminium
  • Finish: Polished silver or powder coated black



References:

  • Doughty Engineering
  • Product Code: T58970 / T5897001
  • Data Sheet
