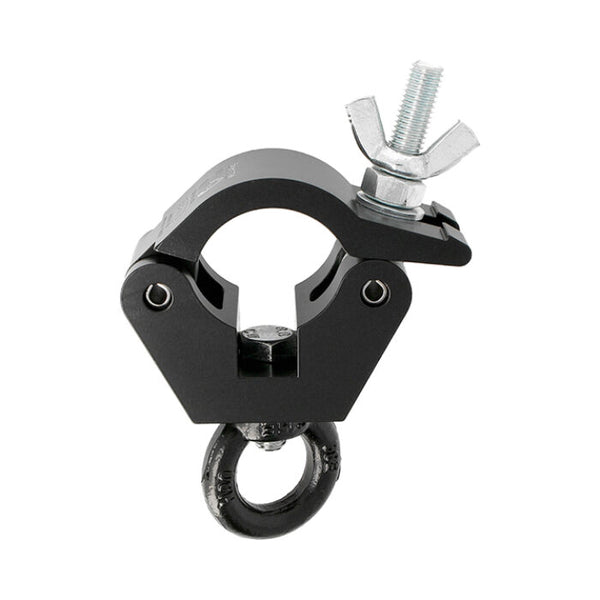

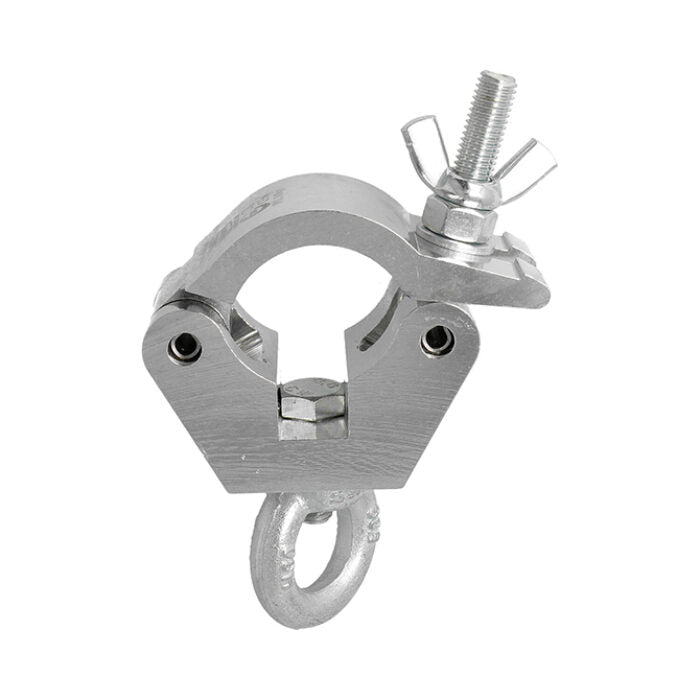

Doughty Hanging Clamp – 340Kg

Doughty Hanging Clamp – 340Kg

The industry standard half coupler factory fitted with an Eye Nut. A high tensile extruded aluminium clamp that is suitable for 48mm to 51mm (1.89” – 2.01”) diameter tubes and is 50mm (1.97 lbs) wide. Ideal for trussing as it will not damage the cords.

Available in polished silver or powder coated black.

WLL: 340Kg

Downloads:

User Manual

Key Features:

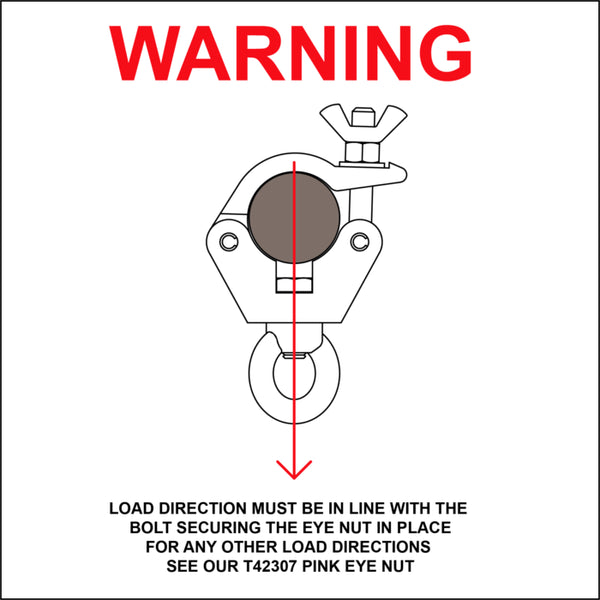

• Factory fitted with an Eye Nut for secure hanging applications
• Constructed from high tensile extruded aluminium for strength and durability
• Compatible with tube diameters from 48mm to 51mm (1.89” – 2.01”)
• Clamp width of 50mm (1.97 lbs), ideal for trussing without damaging cords
• Available in polished silver or powder coated black finish

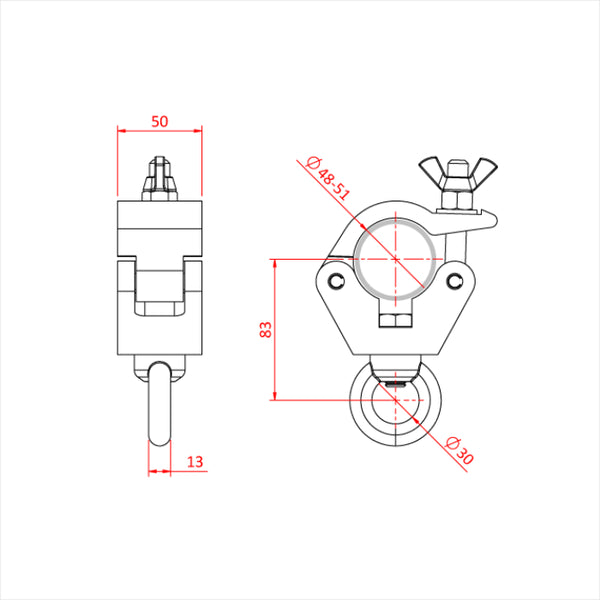

Specifications:

• Working Load Limit (WLL): 340Kg
• Tube Diameter Compatibility: 48mm – 51mm (1.89” – 2.01”)
• Clamp Width: 50mm (1.97")
• Material: High tensile extruded aluminium
• Finish Options: Polished silver or powder coated black

References:

• Doughty Engineering official product line
• Used in professional trussing and rigging systems
• Referenced in T57205-T57206 Data Sheet
