Doughty 38mm Atom Hanging Clamp

Product No. T58990

COLOUR
Save $25 when you subscribe to our newsletter (for orders over $250). Subscribe now
Shipping calculator
Please select country
Please enter correct zip code
Payment methods
amazon_payamerican_expressapple_paydiners_clubdiscovergoogle_paymasterpaypalshopify_payvenmovisa
Product details

Doughty 38mm Atom Hanging Clamp

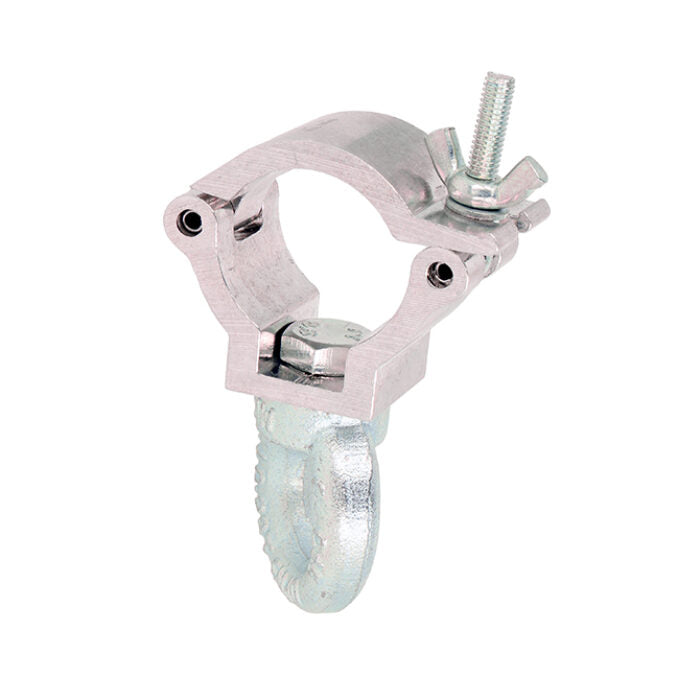

A high tensile extruded aluminium clamp that is suitable for 38mm (1.5″) diameter tubes. It has a WLL of 100Kg and is 30mm (1.18″) wide factory fitted with an Eye Nut. Ideal for decorative trussing as it will not damage the cords. Available in polished silver or powder coated black.


Downloads:

Data Sheet




Key Features:

  • High tensile extruded aluminium construction
  • Compatible with 38mm (1.5″) diameter tubes
  • Factory fitted with Eye Nut for secure hanging
  • Will not damage cords—perfect for decorative trussing

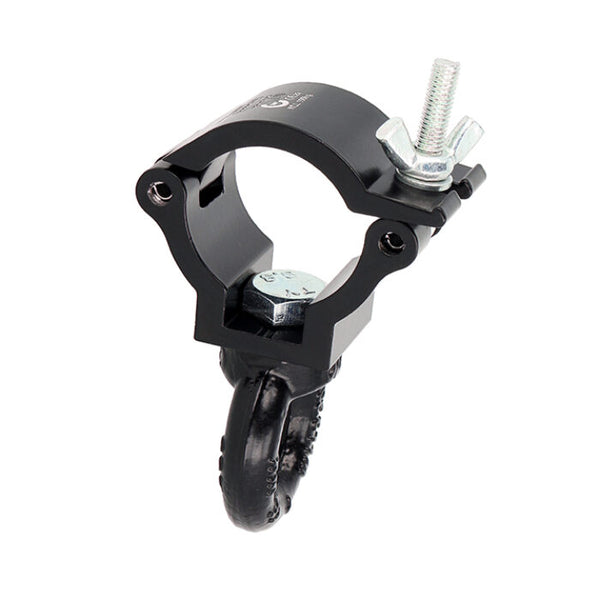

  • Available in polished silver or powder coated black finish

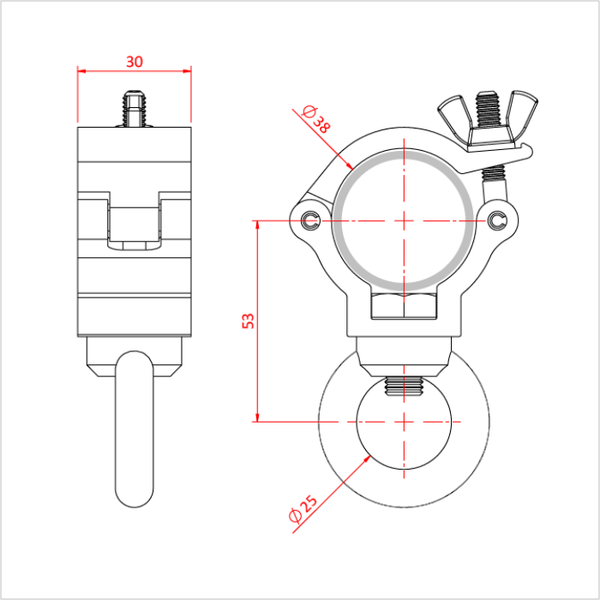

Specifications:

  • WLL: 100Kg
  • Tube Diameter: 1½"-38mm
  • Clamp Width: 30mm (1.18")



References:

  • Doughty Engineering T58990
  • Atom Clamp Series
  • Compatible with decorative trussing systems
