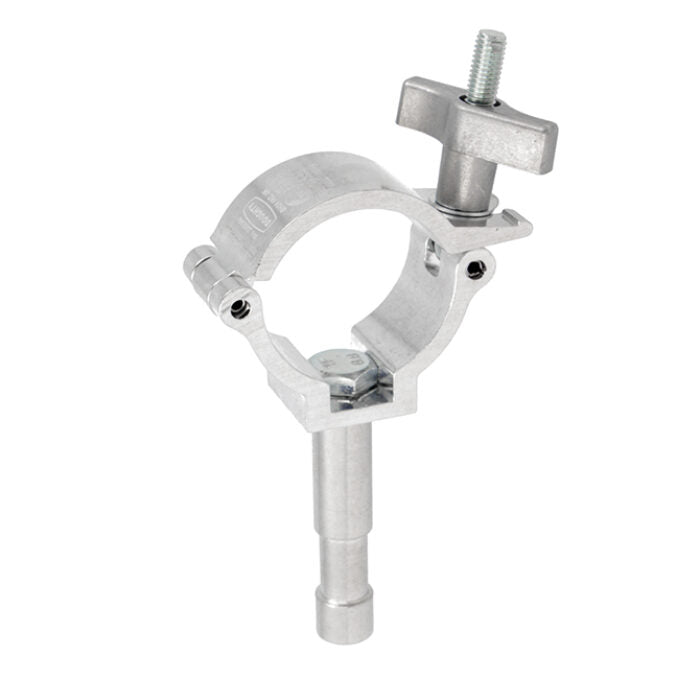

Doughty Super Lightweight Beamer Clamp

Doughty Super Lightweight Beamer Clamp

A high tensile extruded aluminium clamp that is suitable for 48mm to 51mm (1.89″ – 2.01″) diameter tubes. It has a WLL of 100Kg and is 30mm (1.18″) wide factory fitted with a 16mm (0.63″) diameter spigot. Ideal for trussing as it will not damage the cords. Available in polished silver or powder coated black.

This super lightweight clamp is engineered for professional rigging applications where strength, safety, and minimal weight are required. The included 16mm spigot makes it a versatile solution for a wide array of lighting and support accessories.

Designed for both indoor and outdoor use, the Doughty Super Lightweight Beamer Clamp offers a secure connection while preserving the integrity of truss systems and tubing.

Downloads:

User Manual

Key Features:

• High tensile extruded aluminium construction for strength and durability
• Compatible with 48mm to 51mm (1.89″ – 2.01″) diameter tubes
• Factory fitted with a 16mm (0.63″) diameter spigot
• Clamp width of 30mm (1.18″) for secure attachment

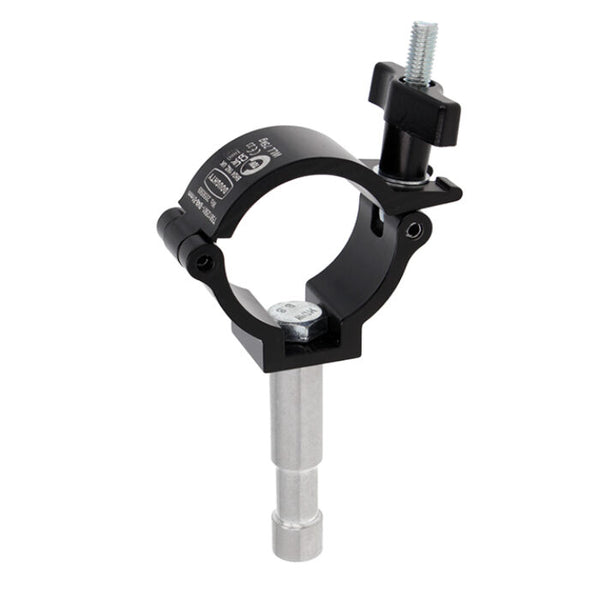

• Available in polished silver or powder coated black finish

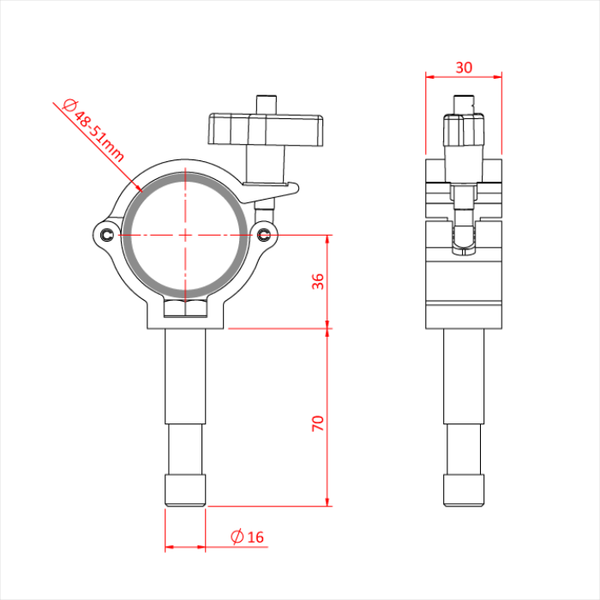

Specifications:

• WLL: 100Kg
• Tube Diameter: 48mm – 51mm (1.89” – 2.01”)
• Clamp Width: 30mm (1.18")
• Spigot Diameter: 16mm (0.63")
• Material: High tensile extruded aluminium

References:

• Doughty Engineering Official Catalogue
• Product Code: T58125 / T5812501
• Truss Compatibility Guidelines

Ensure reliable and safe rigging with the Doughty Super Lightweight Beamer Clamp — engineered for professionals who demand strength without compromise.
