Doughty Trigger Beamer Clamp

Doughty Trigger Beamer Clamp

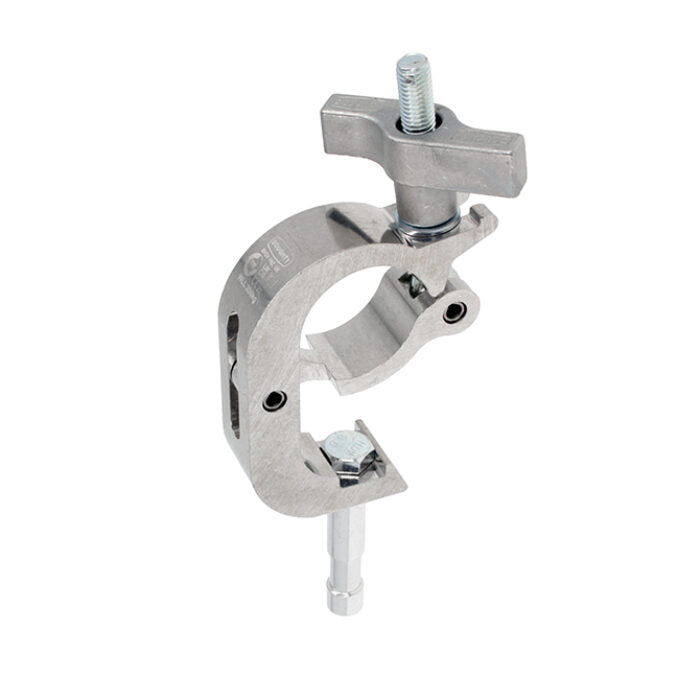

The Doughty Trigger Beamer Clamp is a professional-grade lighting clamp designed for secure and efficient rigging.

A high tensile extruded aluminium trigger clamp that is suitable for 48mm to 51mm (1.89″ – 2.01″) diameter tubes. It has a WLL of 200Kg and is 30mm (1.18″) wide factory fitted with a 16mm (0.75″) diameter spigot. Available in polished silver.

This durable and versatile clamp is ideal for professional rigging applications, offering a secure, high-load bearing solution for a variety of tube sizes commonly used in the entertainment and events industries.

Engineered for strength and reliability, the Doughty Trigger Beamer Clamp provides a dependable connection point, while its polished silver finish ensures a sleek, professional appearance.

Downloads:

User Manual

Key Features:

• High tensile extruded aluminium construction for superior strength
• Compatible with 48mm to 51mm (1.89″ – 2.01″) diameter tubes
• Factory fitted with a 16mm (0.75″) diameter spigot
• Compact 30mm (1.18″) clamp width for tight rigging spaces
• Available in a polished silver finish for a professional look

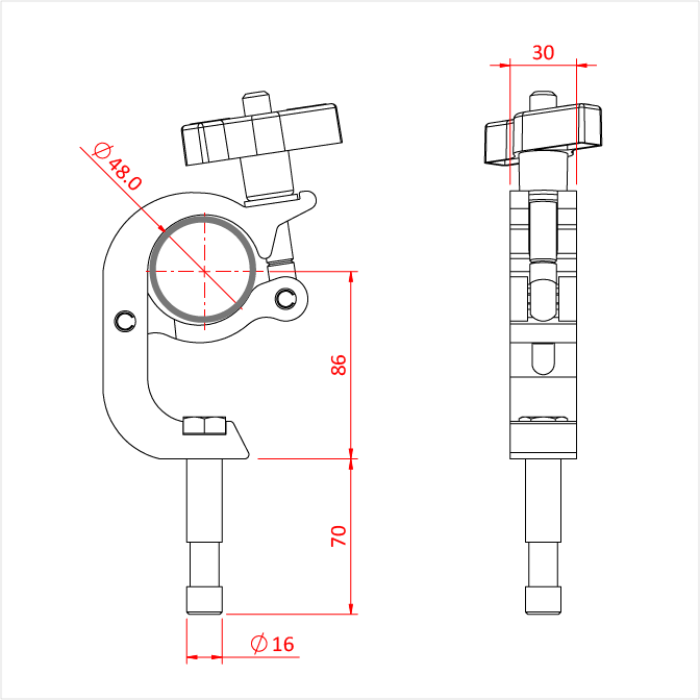

Specifications:

• WLL: 100Kg
• Tube Diameter: 48mm – 51mm (1.89” – 2.01”)
• Clamp Width: 30mm (1.18")
• Material: High tensile extruded aluminium
• Spigot Diameter: 16mm (0.75")

References:

• Doughty Engineering Official Data
• Product Code: T58866
• T58866 Data Sheet
