Doughty Quick Links

Doughty Quick Links

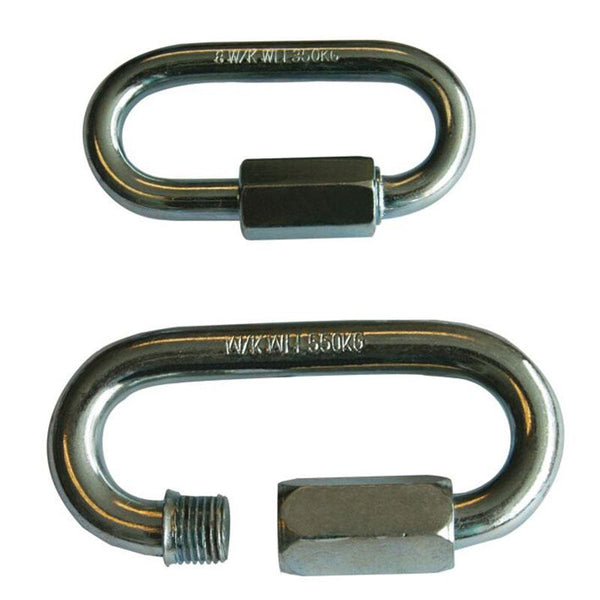

A range of oval-shaped Doughty Rated Quick Links.

Available in multiple sizes to suit a variety of rigging and suspension applications.

Offered in packs of 10, 20, and 50 pieces to accommodate different project needs.

Downloads:

User Manual

Key Features:

• Oval-shaped design for secure and versatile connections
• Rated for load-bearing use in professional environments
• Available in multiple size and strength options
• Bright Zinc Plated finish for corrosion resistance
• Supplied in convenient packs of 10, 20, or 50 units

Specifications:

• Finish: Bright Zinc Plated
• Standard: DIN 56926
• Size - SWL - Gate Opening:
  T23490: M6/0.24'' - SWL 200 Kg/441 lbs - 6.5mm/0.26''
  T23500: M8/0.30'' - SWL 350 Kg/772 lbs - 10mm/0.39''
  T23505: M10/0.40'' - SWL 500 Kg/1102 lbs - 12mm/0.47''
  T23510: M/12/0.50'' - SWL 750 Kg/1653 lbs - 14mm/0.55''
• PLEASE NOTE QUICK LINKS ARE RATED

References:

• Manufactured by Doughty Engineering, UK
• Member of PLASA (Professional Light and Sound Association)
• Member of ESTA (Entertainment Services and Technology Association)

Doughty Engineering has been a trusted manufacturer of rigging, suspension, and lifting equipment since 1985. Renowned for its commitment to safety and quality, Doughty is a leading provider for film/TV, theatre, and concert venues worldwide.
