OZ Lifting Stainless Steel Beam Clamp

Product No. OZSS1BC

Regular price $279.37 USD
CAPACITY
Shipping calculator
Please select country
Please enter correct zip code
Payment methods
american_express apple_pay diners_club discover facebook_pay google_pay master shopify_pay visa
Product details

OZ Lifting Stainless Steel Beam Clamp

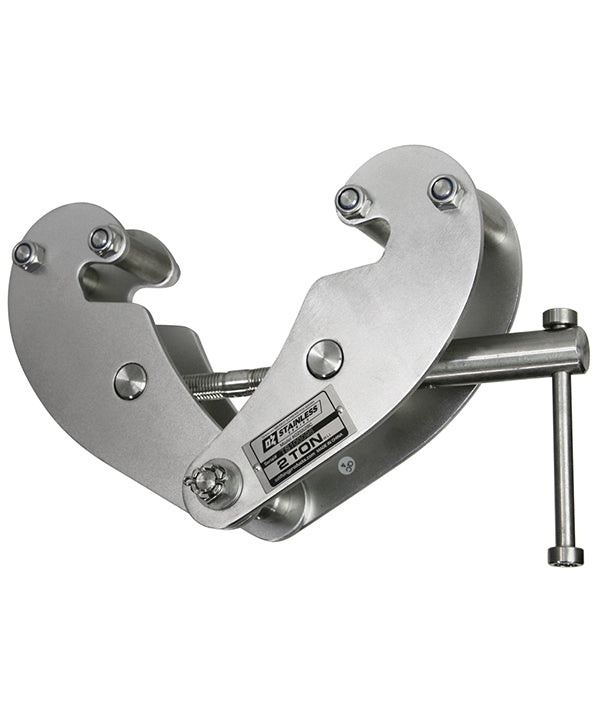

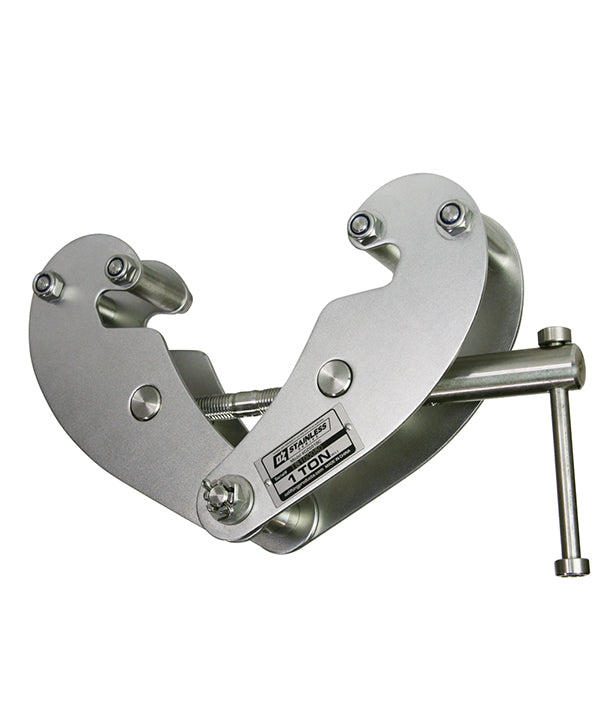

The Oz Lifting stainless steel beam clamp is engineered for use with manual or powered hoists to secure beams for lifting. The clamp is made from corrosion resistant stainless steel and allows for super-quick attachment to most I-beams. The clamps have all been individually tested and are available in 1 ton and 2 ton lifting capacities.

FEATURES

  • Type 304 stainless steel construction for corrosion resistance
  • Super-quick adjustment to most I-Beams
  • Stainless steel ID tag
  • Individual test certificate and serial number
Standards – CE, AS1418.2, ASME B30.16
(for use with manual or powered hoists)

SPECIFICATIONS

    OZSS1BC OZSS2BC
Safe working load (lbs)   2,000 4,000
  A 2.95-9.05 2.95-9.05
  B 12.2 max. 12.2 max.
  C 2.6 3
Dimensions (in) D .94 .94
  E 7.68 7.68
  F 5.12-6.57 5.12-6.57
  G 1.57 1.57
  H .78 .9
Net Weight (lbs)   9 11

*Dimensions are for reference only and subject to change without notice.


Reduction in Working Load Limits when side loads are applied

Angle from Vertical 0-15° 15-30° 30-45°
Reduction Factor none 20% 35% 50%
