OZ Lifting Hand Brake Winch

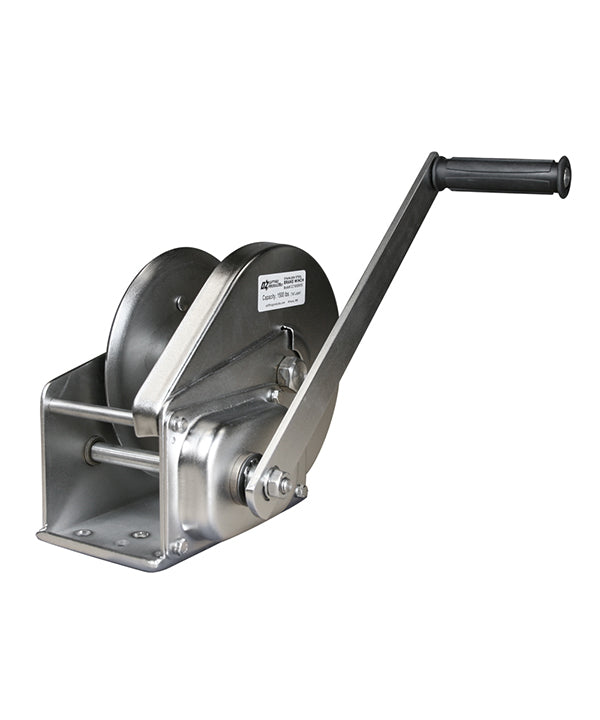

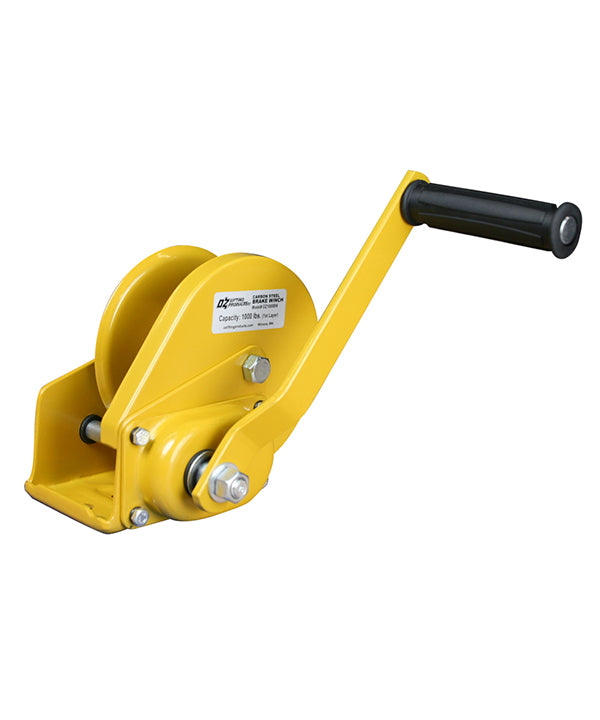

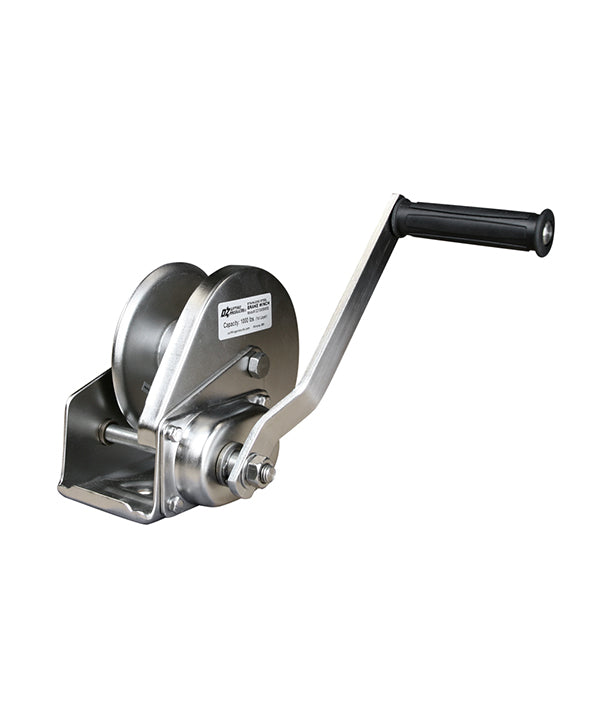

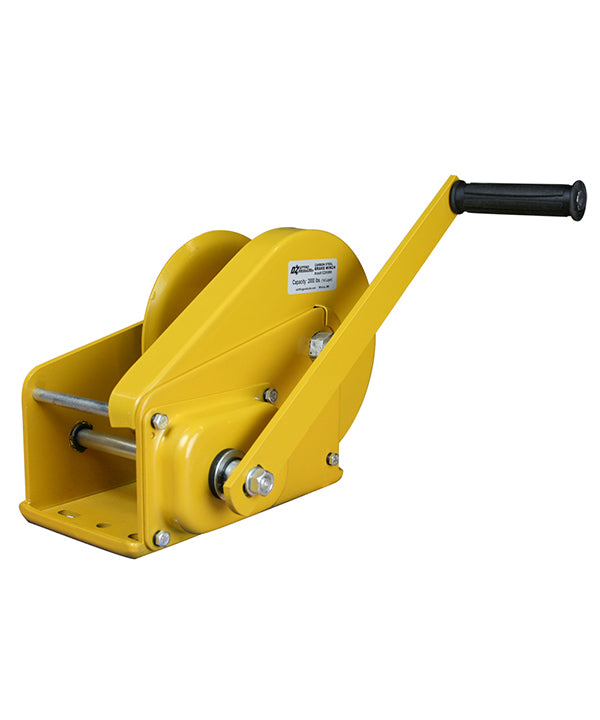

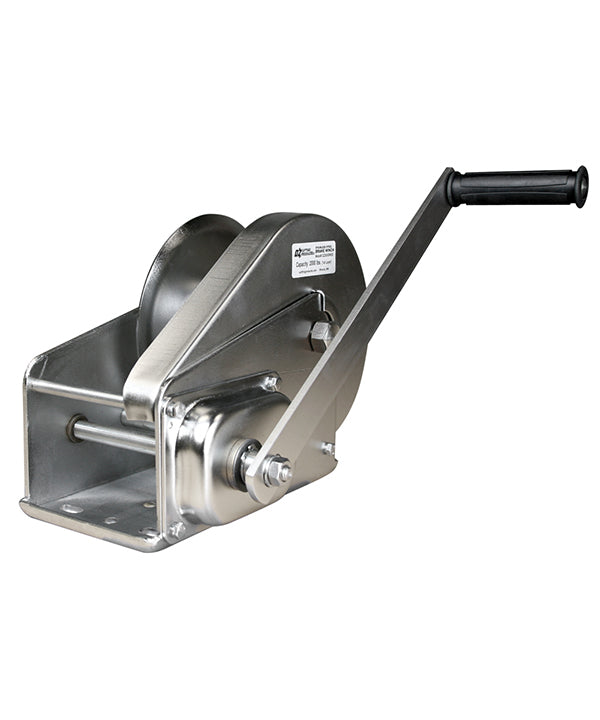

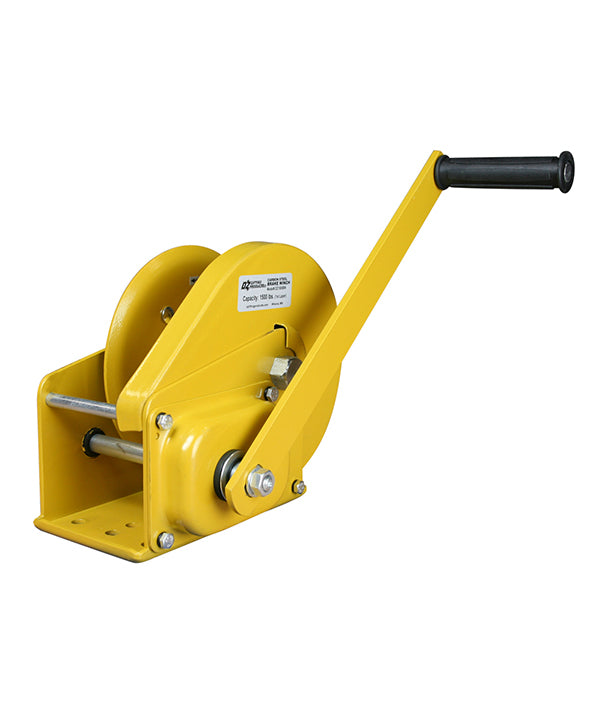

The OZ Lifting hand brake winches are all steel, hand operated winches with capacities of 1 ton, 1.5 ton and 2 tons. The winches have a compact design and a large diameter drum for increased efficiency. The rubber grip handle makes the winch easier to operate and the fully enclosed gearing system ensures smooth operations over time by preventing contaminants and debris from clogging the system. The winch is available carbon steel and stainless steel models.
FEATURES
- All steel construction
- Automatic weatherproof Weston brake
- Compact design
- Dual cable anchor point
- Ergonomic rubber handle
- Large diameter drum
- Multiple frame mounting positions
- Rubber handle
- Fully enclosed gearing
- High gear ratio
- Solid machined gear
- Test certificate & serial number
Standards – CE
| Cable/Drum Capacity | 1st layer (ft) | Mid drum (ft) | Full drum (ft) |
| OZ1000BW – OZ1000BWSS with 1/8” wire rope | 7 | 74 | 140 |
| OZ1000BW – OZ1000BWSS with 3/16” wire rope | 5 | 34 | 75 |
| OZ1500BW – OZ1500BWSS with 3/16” wire rope | 7 | 66 | 140 |
| OZ1500BW – OZ1500BWSS with 1/4” wire rope | 5 | 27 | 89 |
| OZ2000BW – OZ2000BWSS with 1/4” wire rope | 8 | 36 | 85 |
| OZ2000BW – OZ2000BWSS with 5/16” wire rope | 7 | 22 | 52 |
| Load Rating (lbs) | |||
| OZ1000BW – OZ1000BWSS | 1000 | 750 | 500 |
| OZ1500BW – OZ1500BWSS | 1500 | 1250 | 750 |
| OZ2000BW – OZ2000BWSS | 2000 | 1500 | 1000 |
*Cable not included
| OZ1000BW – OZ1000BWSS | OZ1500BW – OZ1500BWSS | OZ2000BW – OZ2000BWSS | ||
| Safe Working Load (lbs) | 1000 | 1500 | 2000 | |
| Gear Ratio | 4.2:1 | 5:1 | 10:1 | |
| Dimensions (in) | A | 6.22 | 7.73 | 8.35 |
| B | 7.20 | 9.36 | 11.10 | |
| C | 3.46 | 4.21 | 5.00 | |
| D | 8.26 | 12.68 | 12.99 | |
| E | 1.06 | 1.06 | 1.06 | |
| F | 10.43 | 10.63 | 11.81 | |
| G | 1.98 | 2.30 | 2.52 | |
| H | 4.29 | 4.29 | 4.29 | |
| I | 1.90BW – 1.60BWSS | 2.38 | 3.00 | |
| J | 5.33 | 7.00 | 7.09 | |
| K | 10.20 | 15.31 | 15.35 | |
| L | 5.98 | 6.89 | 7.87 | |
| M | 0.12 | 0.14 | 0.16 | |
| Net Weight (lbs) | 8.15 | 16.97 | 22.06 |
