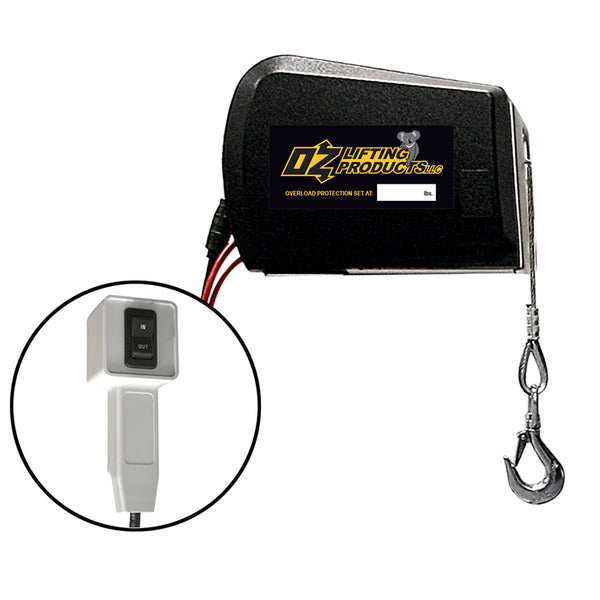

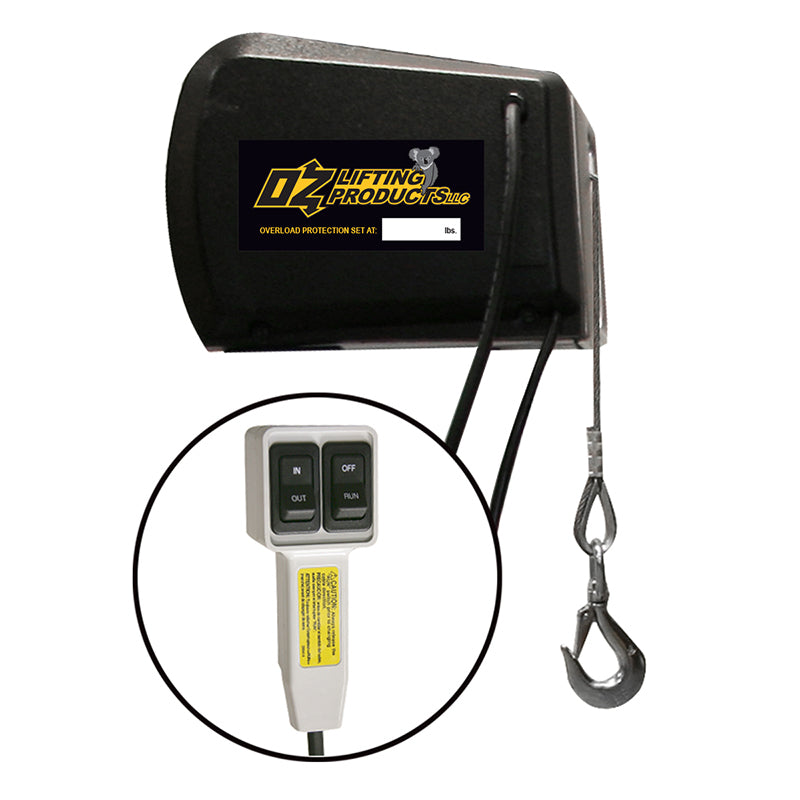

OZ Lifting Electric Winch

The Oz Lifting electric winchesย are lightweight and can be easily connected to OZ lifting davit cranes to allow for automatic lifting of a load. The winches are available in AC (110V) and DC (12V)ย  and have a lifting capacity of 1200lbs. The winches allow custom overload settings and have fully-enclosed gearing to keep debris and contaminants from interfering with operations,

Features

  • Two-braking system mechanical and dynamic
  • Overload protection
  • Fully-enclosed gearing
  • Machine cut and hardened gears
  • Lightweight
  • Emergency handle
  • Quick connection to davit
  • Pendant and power cord included
  • Easy bolt on winch to OZ davit cranes
  • 3 minutes of continuous use โ€“ 15 minute cool down

Capacity

OZDCW (12V DC): 1200 lbs. OZACW (110V AC): 1200 lbs. Custom Overload Settings Available

Drum Capacity

3/16โ€ diameter cable=90โ€™ 1/4โ€ diameter cable=45โ€™

Pendant/ Power Cord Length

12V DC: 10โ€™ Pendant / 25โ€™ Power Cord 110V AC: 10โ€™ Pendant / 10โ€™ Power Cord

Net Weight

OZACW โ€“ 22 lbs. OZDCW โ€“ 24 lbs.

Motor

ACW 1.0 HP DCW 0.6 HP

Full Load Amps

ACW 10A DCW 70A
Load Capacity Based on the Amount of Cable 3/16โ€ Cable ยผโ€ Cable
1st Layer (lbs) 1200 1200
Mid-Drum (lbs) 1200 1120
Full (lbs) 900 850

Winch Speed Based on Load & Cable on the Drum 1st Layer Full
AC, No Load (ft/min) 23 35
AC, Full Load (ft/min) 12 16
DC, No Load (ft/min) 21 33
DC, Full Load (ft/min) 5.5 8

Dimensions โ€“ All Models (in)
A 7.437
B 3.5781
C 10.8125
D 8.1875
E 8.125
Mounting Plate

Mounting Plate Dimensions โ€“ All Models (in)
F 3.625 K .625 P 3
G 8.6875 L 1 Q .5312
H 1.1875 M 1.25 R .7812
I .625 N 1.25 S .4262
J 1.375 O 1.8125 T .50

*Dimensions are for reference only and subject to change without notice.

Galvanized and Stainless Steel Rope

OZGAL.19-90 3/16โ€ x 90โ€™ Galvanized cable assembly
OZSS.19-90 3/16โ€ x 90โ€™ Stainless Steel cable assembly
OZGAL.25-45 1/4โ€ x 45โ€™ Galvanized cable assembly
OZSS.25-45 1/4โ€ x 45โ€™ Stainless Steel cable assembly
