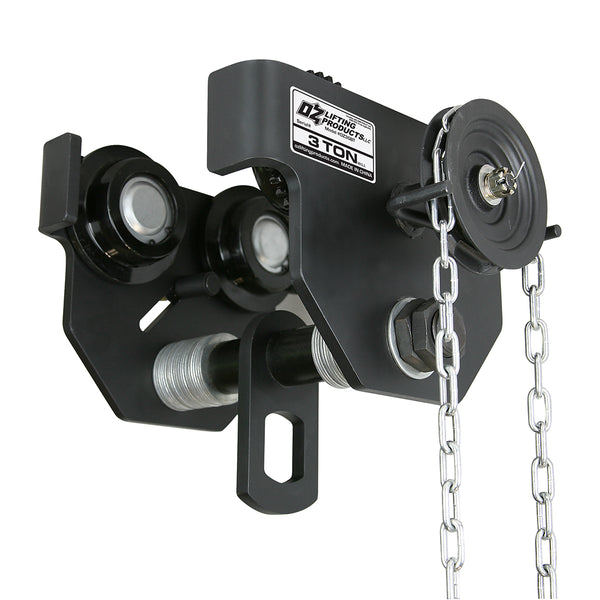

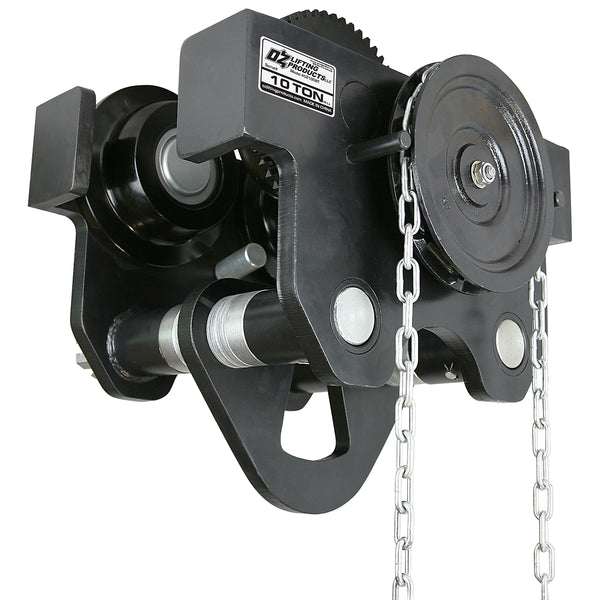

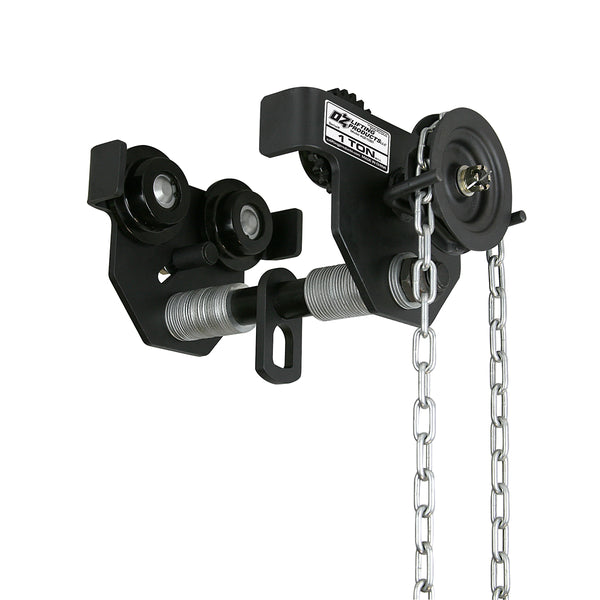

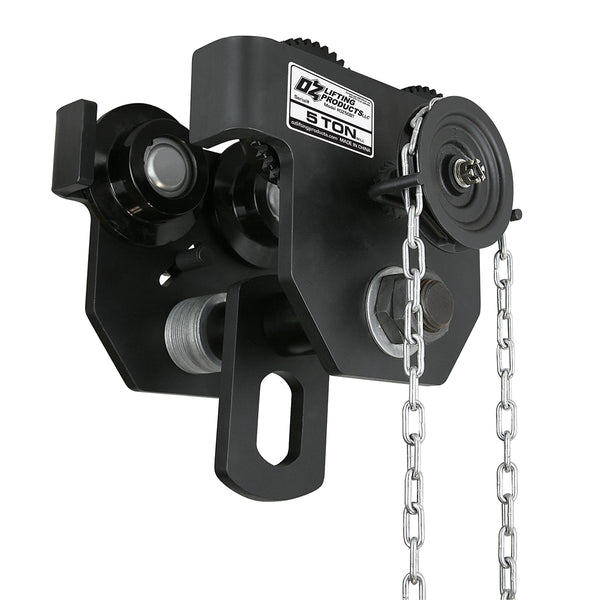

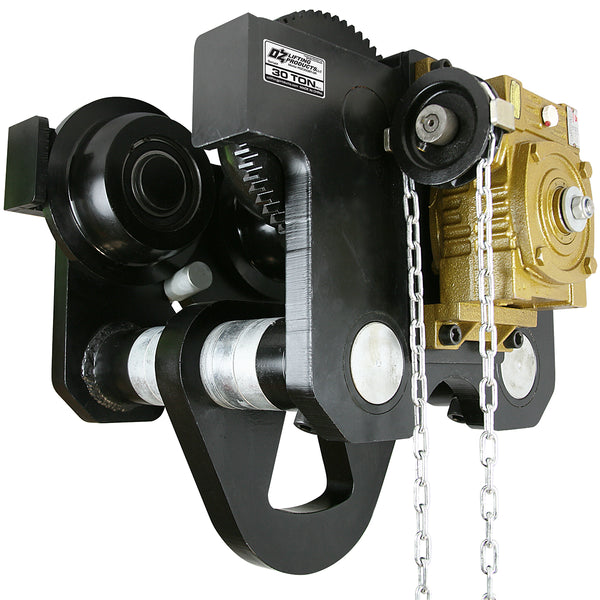

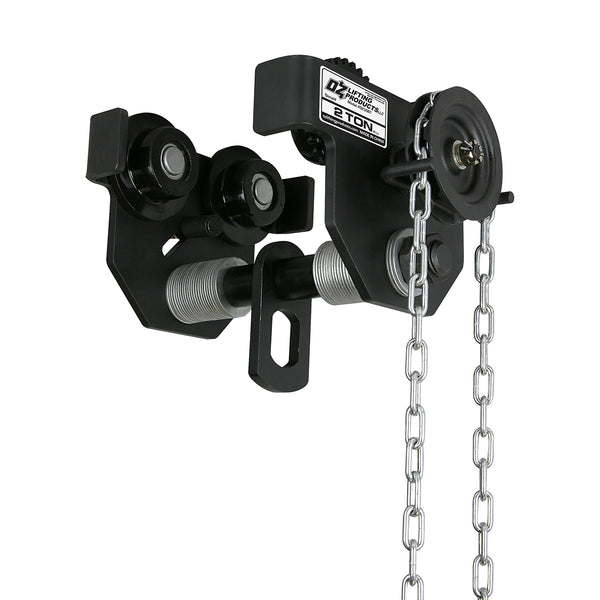

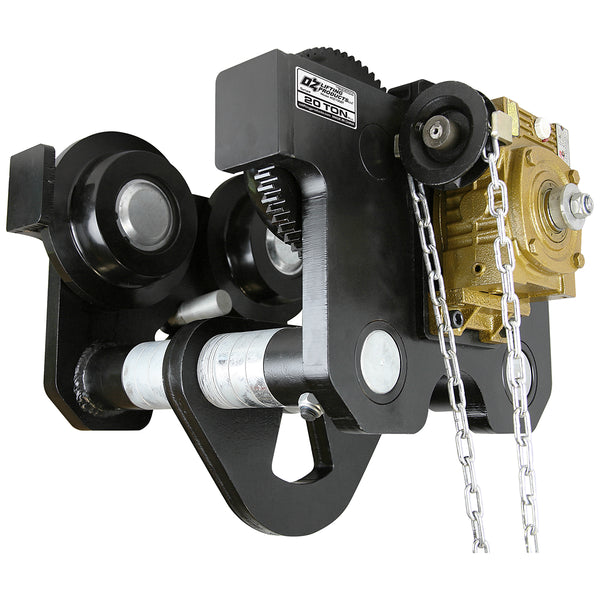

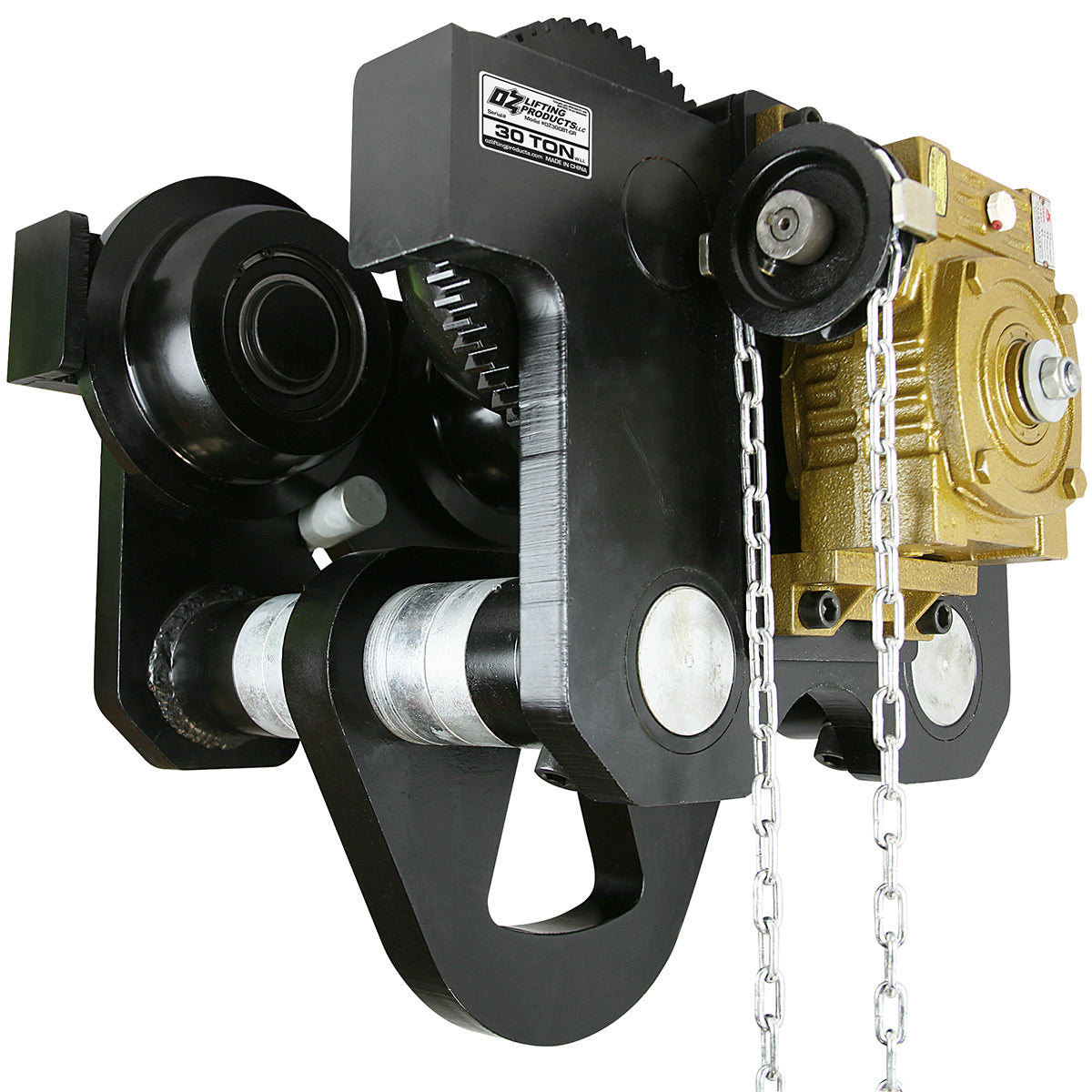

OZ Lifting Geared Beam Trolley

The Oz Lifting geared beam trolley is designed for use with manual or powered hoists to shift loads across a lateral plane with gearing for positive load positioning. The trolley is available with lifting capacities ranging from 1 ton to 30 tons. The trolley has a lightweight and robust construction that is both maneuverable and durable.



Features

  • Lightweight robust construction
  • Fits to most I, S, and W-Beams
  • Durable baked enamel paint protection
  • Gearing for positive load positioning
  • Precision ball bearing trolley wheels
  • Anti-drop plate
  • Stainless steel ID tag
  • Individual test certificate & serial number
Standards – CE, ASME B30.11, ASME B30.16
(for use with manual or powered hoists)

    OZ1GBT OZ2GBT OZ3GBT OZ5GBT OZ10GBT OZ20GBT OZ30GBT
Safe Working Load (lbs)   2,000 4,000 6,000 10,000 20,000 40,000 60,000
Adjustable Flange Width (in)   2.57-7.99 3.46-7.99 3.46-7.99 3.46-7.99 4.88-7.99 5.39-12.99 5.83-12.99
Max Flange Thickness (in)   1.50 1.61 1.81 2.28 1.97 2.17 2.36
Product Dimensions (in) A 14.96 15.20 16.38 17.09 15.59 26.54 27.56
  B 9.45 10.63 12.60 13.62 16.77 20.55 23.31
  C 8.41 10.28 12.48 15.08 15.75 19.65 24.33
  D 4.90 6.08 7.30 9.09 8.31 9.96 15.35
Minimum Radius Curve (ft)   3.28 4.27 4.92 5.25 8.3 11.48 14.76
Net Weight (lbs)   28.66 41.89 61.73 90.39 182.98 405.65 650.36
* Standard length of hand chain (ft)   9.00 9.00 9.00 9.00 9.00 9.00 9.00
Effort to Pull (lbs)   10.13 18 29.25 23.75 41.85 18 24.08
Chain pulled to move one foot (ft)   3.80 3.90 3.70 4.02 18.90 47.83 31

*Dimensions are for reference only and subject to change without notice. *Available in 50 and 100 Ton. Please contact for specifications. Special order.

    OZ1GBT OZ2GBT OZ3GBT OZ5GBT OZ10GBT OZ20GBT OZ30GBT
E (in)   3.5 4.00 5.79 6.30 7.45 10.76 10.76
F (in)   2.48 2.68 4.34 4.81 5.95 7.88 7.88
G (in)   3.86 5.31 7.09 8.67 11.23 12.99 13.19
H (in)   1.46 2.01 2.96 3.75 4.73 5.91 5.91
I (in)   0.51 0.87 1.03 1.38 1.78 2.75 2.75
J (in)   1.02 1.50 1.78 2.37 3.23 4.33 4.33
K (in)   1.91 2.76 3.94 4.73 5.91 9.45 9.45
L (in)   0.39 0.47 0.63 0.79 0.99 1.38 1.18
