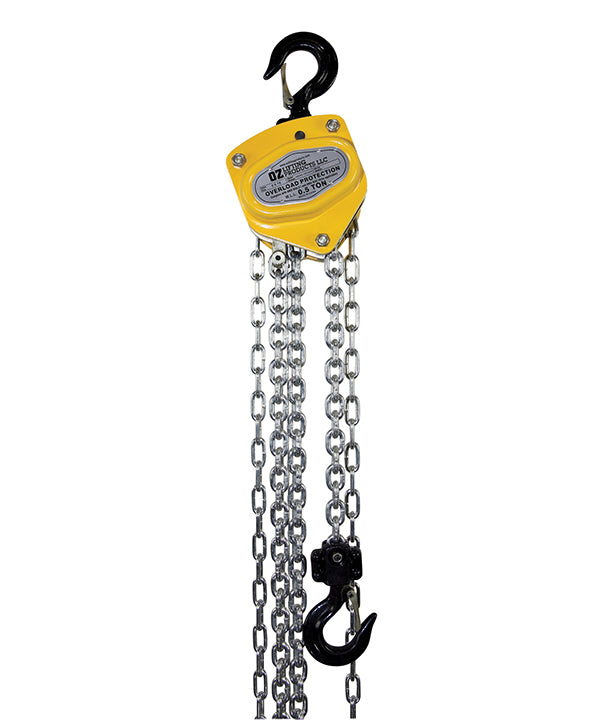

• 0.5 Ton weight capacity chain hoist

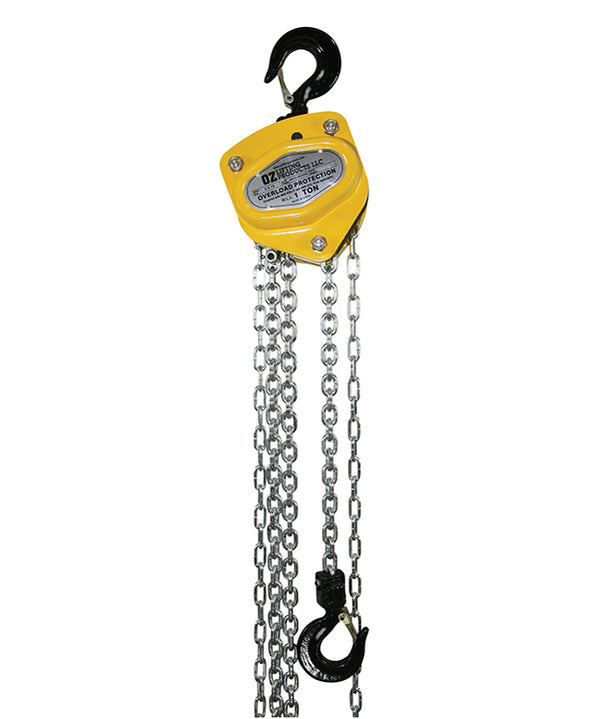

  • 1 Ton weight capacity chain hoist

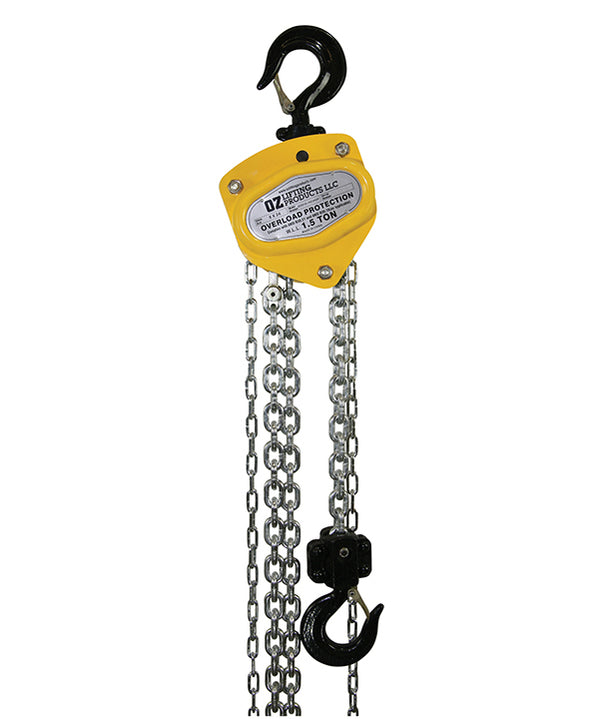

  • 1.5 Ton weight capacity chain hoist

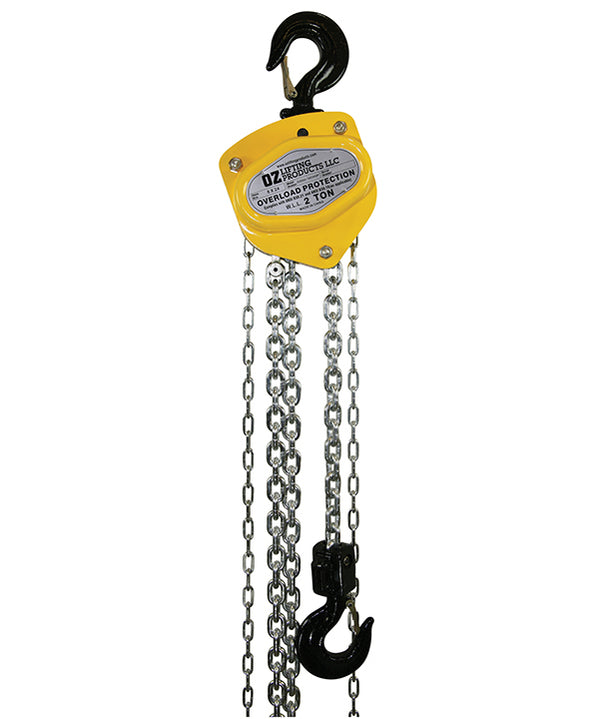

  • 2 Ton weight capacity chain hoist

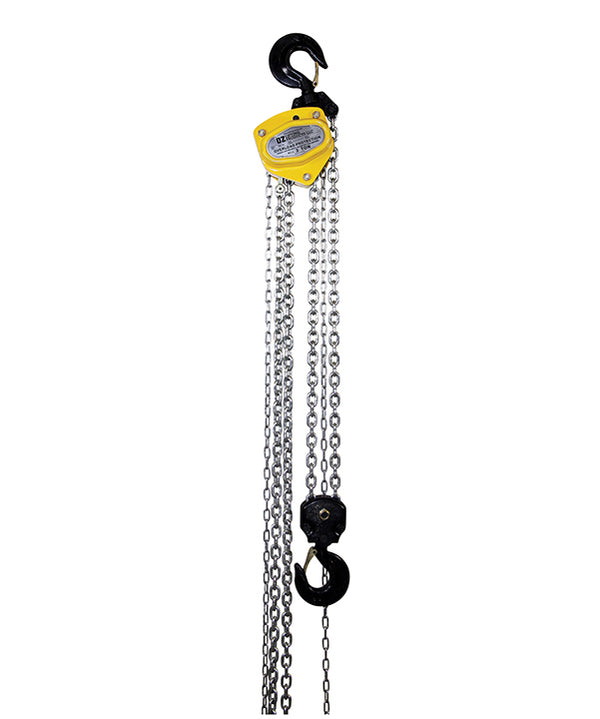

  • 3 Ton weight capacity chain hoist

OZ Lifting Premium Chain Hoist

Product No. OZ005-10CHOP

Regular price $188.58 USD
OVERLOAD PROTECTION
STANDARD LIFT
Shipping calculator
Please select country
Please enter correct zip code
Payment methods
amazon_pay american_express apple_pay diners_club discover google_pay master shopify_pay visa
Product details

OZ Lifting Premium Chain Hoist

The OZ Premium Chain Hoist is a durable and versatile chain hoist that can be used for both lifting and pulling. The double reduction gearing minimizes lifting effort and the hoist can be operated in tight spaces thanks to the 360-degree handle rotation. Enclosed brake system, gearing systems and a sealed roller bearing keep the hoist protected from debris and contaminations to ensure smooth operations over time. The operator can use this hoist while standing beside or above the load without the risk of the hand chain jamming thanks to the unique hand wheel design, which allows the chain to feed directly into the sprocket from multiple angles and directions. The thrust bearing on the lower hook allows you to easily rotate the load when suspended without the causing the chain to twist.

Standard overload protection kicks in when the lift weight reaches approximately 150% of the weighted load to prevent severe overloading and damage to the hoist. The lifting capacities available with these ceiling chain hoists are 0.5 ton, 1 ton 1.5 ton, 2 ton and 3 ton.

Features

  • Standard Overload Protection - At approx. 150% of the weighted load, the overload device will activate.
  • Unique Hand Wheel Design - The hand chain can feed into the sprocket from many angles and directions.
  • Lift or Pull - The versatile hoist can be used for either lifting or pulling.
  • Double Reduction Gearing - Minimizes lifting effort
  • 360-Degree Handle Rotationallows operation even in tight spaces
  • All Steel Construction -  Long lasting with a durable powder coat finish.
  • Brake System - Enclosed Weston Style brake stays clean and dry during the entire load operation.
  • Enclosed Gearing - Protects gears from debris and contaminants.
  • Sealed Roller Bearing - Keeps operation of gears and shafts smooth and ensures maintenance-free lubrication.
  • Thrust Bearing on Lower Hook - Easily rotate suspended load without twisting chain.
  • Hooks - Forged alloy steel hooks with 360° swivel
  • Safety Latch - Cast steel safety latch with bolt-and-lock nut connection.
  • Chain Type - 100% load tested zinc-plated chain
  • ID Tags - Stainless steel, corrosion resistant riveted tags.



Standards – CE, ASME B30.21, AS1418.2



OZ Premium Chain Hoist w/Overload Protection - Dimensions & Specifications



  OZ005-CHOP OZ010-CHOP OZ015-CHOP OZ020-CHOP OZ030-CHOP OZ050-CHOP OZ100-CHOP
Safe Working Load (tons)   .5 1 1.5 2 3 5 10
Falls of Chain   1 1 1 1 2 2 4
Effort to Lift S.W.L (lbs)   53 55 58 74 58 79 84
Load Chain Diameter (mm)   6 6 8 8 8 10 10
  A 13.58 14.80 17.40 18.50 19.29 27.09 30.12
Dimensional Information (in) B 5.83 6.77 7.72 8.28 8.90 11.02 18.23
  C 5.20 5.94 6.81 6.89 6.81 7.44 7.44
Hook-opening, Upper & Lower (in) D 1.10 1.26 1.42 1.42 1.81 1.81 2.24
Net Weight of Head Only (lbs)   21 24 31 36 41 64 114

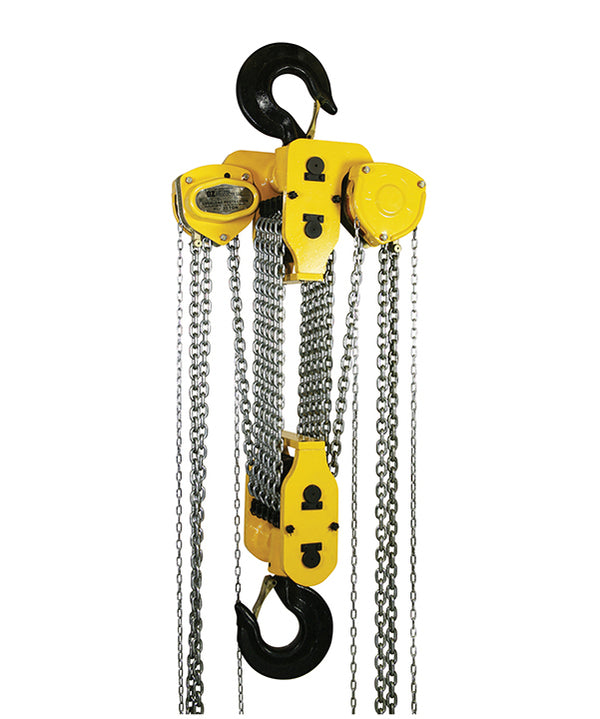

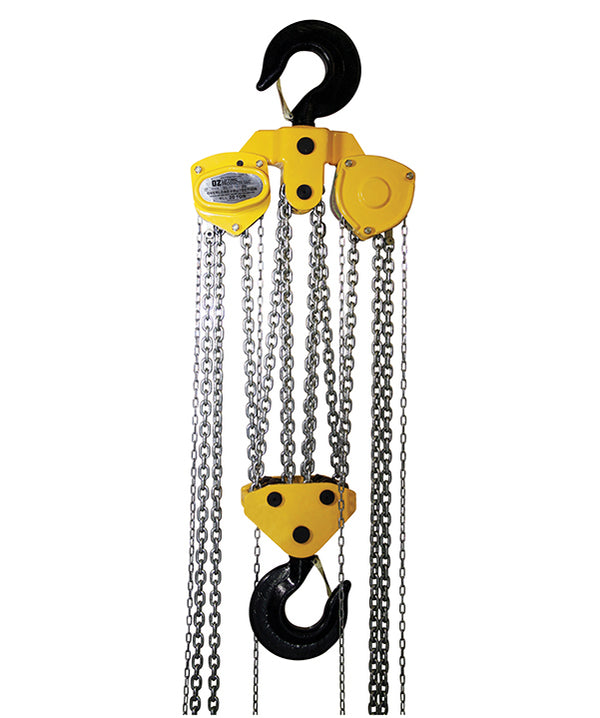

20t and 30t Premium Chain Hoist Dimensions & Specifications





  OZ200-CHOP OZ300-CHOP
Capacity (tons)   20 30
Falls of Chain   8 12
Effort to Lift S.W.L (lbs)   84 x2 90 x2
Load Chain Diameter (mm)   10 10
  A 35.04 54.33
Dimensions (in) B 24.80 26.77
  C 7.44 18.23
Hook-opening, Upper & Lower (in) D 2.23 3.00
Net Weight of Head Only (lbs)   315 360
10mm Load Chain 1.5 lbs per/ft
