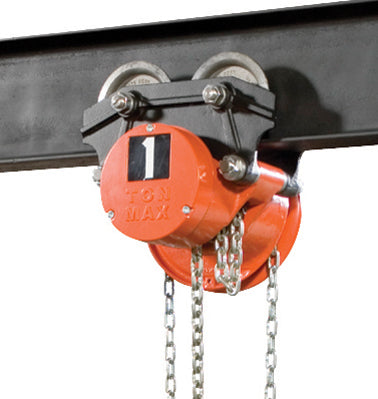

CM Cyclone Low Headroom Trolley Hoist

CM

4832

Capacity
Lift


The CM Cyclone Trolley Hoist for Low Headroom features the same quality and performance as the Cyclone Hand Chain Hoist in an integrated all-in-one design that combines the hoist and the trolley together for even lower headroom applications.The Cyclone Low Headroom Trolley Hoist combines superior engineering, efficiency and durability to deliver a safe and smooth lift.

The CM Cyclone is made in the U.S.A. and is inspected over 75 times to meet or exceed HMI, ASME and ANSI performance and safety standards. It boasts reduced headroom, side clearances and end approach for easy maneuvering of loads in tight places and features crowned tread and flanged wheels to minimize rolling friction.



• Capacity: 1/2 Ton; 1 Ton; 1.5 Ton; 2 Ton; 3 Ton; 4 Ton; 5 Ton; or 6 Ton

• Lift: 10', 15', or 20'

PRODUCT CODE RATED CAPACITY (TONS) STANDARD LIFT (FT) HAND CHAIN PULL TO LIFT RATED LOAD (LBS) HAND CHAIN OVERHAULED TO LIFT LOAD 1' (FT) APPROX. SHIPPING WEIGHT (LBS)
4832 1/2 10 46 22.5 91

4850

1/2 15 46 22.5 99
4879 1/2 20 46 22.5 106
4834 1 10 69 30 97
4851 1 15 69 30 105
4880 1 20 69 30 120
4835 1.5 10 80 40.5 191
4853 1.5 15 80 40.5 202
4881 1.5 20 80 40.5 214
4836 2 10 83 52 191
4861 2 15 83 52 202
4882 2 20 83 52 214
4837 3 10 85 81 211
4863 3 15 85 81 229
4883 3 20 85 81 247
4838 4 10 88 104 316
4871 4 15 88 104 334
4884 4 20 88 104 352
4839 5 10 75 156 339
4872 5 15 75 156 364
4885 5 20 75 156 389
4840 6 10 90 156 388
4873 6 15 90 156 413
4886 6 20 90 156 438



• Crowned tread and flanged wheels to minimize rolling friction

• Simple, efficient design

• Reduced headroom, side clearances and end approach for easy maneuvering of loads in tight places

• Plain trolley mounts in capacities from 1/2 to 6 tons

• Geared trolley mounts in capacities from 1 1/2 to 6 tons

• Standard hand chain drop 2 feet less than lift (example: 8 foot lift hoist has 6 foot hand chain drop)

• Chain containers, zinc-plated load and hand chain, aluminum unwelded hand chain, Latchlok hooks, bronze hooks, bullard hooks, larger beam trolleys, trolley guards and units without Load Limiter optional, depending on capacity

• Standard Load Limiter/automatic overload protection

• Lifetime warranty

• Metric rated

• Made in U.S.A.
