OZ Lifting USA Beam Clamps

Product No. OZ1BCA

No reviews
Regular price $191.84 USD
CAPACITY
Shipping calculator
Please select country
Please enter correct zip code
Payment methods
american_express apple_pay diners_club discover facebook_pay google_pay master shopify_pay visa
Product details

OZ Lifting USA Beam Clamp

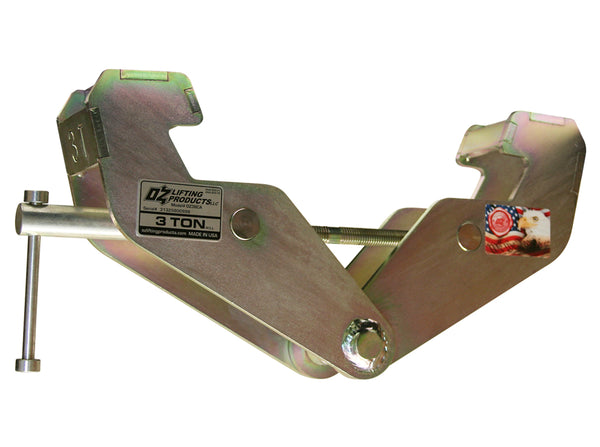

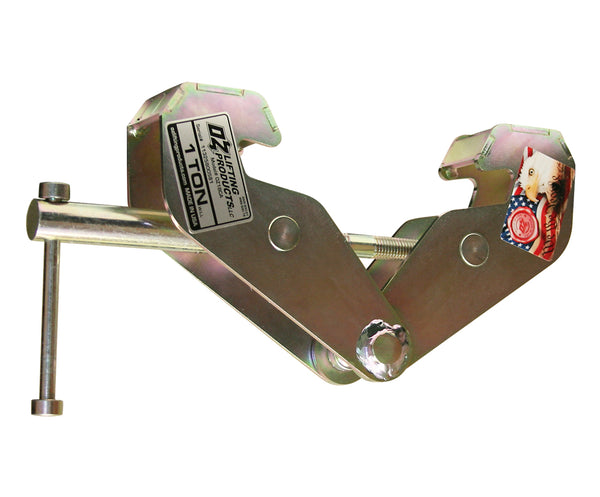

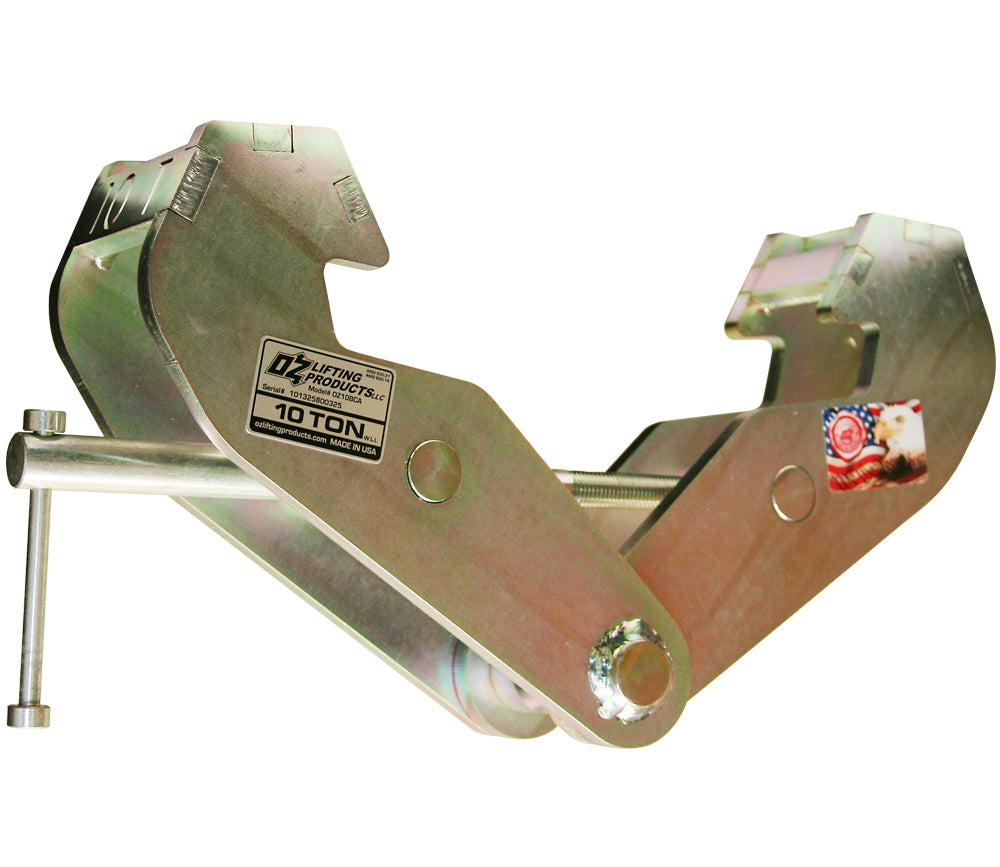

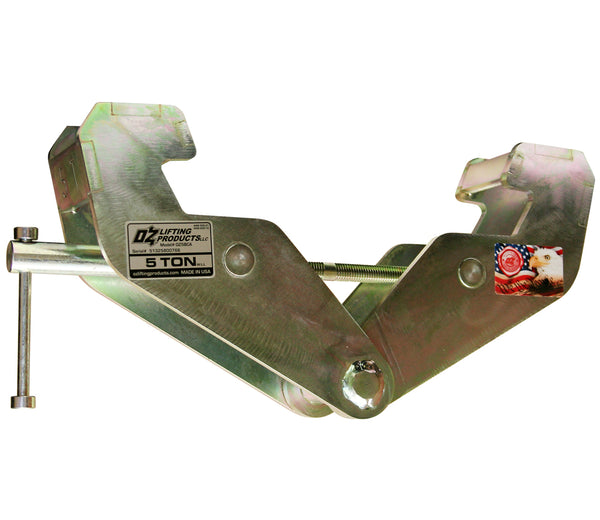

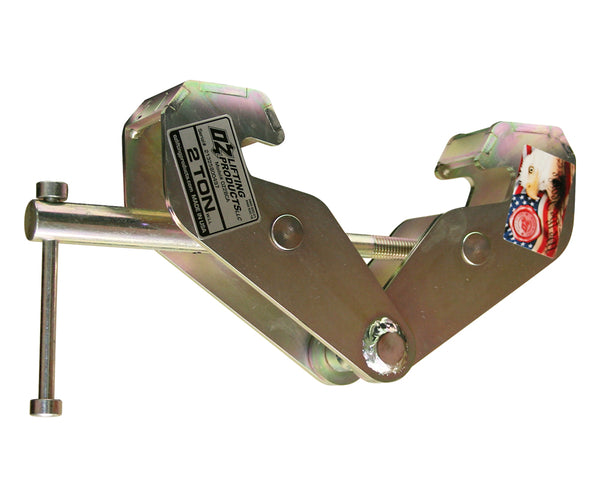

The Oz Lifting USA beam clamp is engineered for use with manual or powered hoists to secure beams for lifting. The clamp is made with an all-steel fully-welded construction and allows for super-quick attachment to most I-beams. The clamps have all been individually tested and are available in 1 ton, 2 ton, 3 ton, 5 ton and 10 ton lifting capacities.

FEATURES

  • Robust all-steel fully-welded construction
  • Super-quick adjustment to most I-Beams (see measurements below)
  • ROHS compliant zinc plated finish
  • Permanent engraved load rating
  • Made in USA
Standards – CE, ASME B30.16
(for use with manual or powered hoists)

  OZ1BCA OZ2BCA OZ3BCA OZ5BCA OZ10BCA
Safe Working Load (lbs) 2,000 4,000 6,000 10,000 20,000
A 3 – 9 3 – 9 3.5 – 13 3.5 – 13
B 14.75 14.75 20.5 20.5 22
C 2.51 2.91 3.94 4.41 4.72
D 0.9 0.9 1.5 1.5 1.5
E 9.5 9.5 11 11 11.5
F 4.75 – 5.75 4.75 – 5.75 7.5 – 9 7.5 – 9 5.5 – 9.375
G 1.75 1.75 2.5 2.5 4
H .75 .875 .975 1.125 1.625
Net Weight (lbs) 9 11 22 26 39



Reduction in Working Load Limits when side loads are applied

Angle from Vertical 0-15° 15-30° 30-45°
Reduction Factor none 20% 35% 50%
