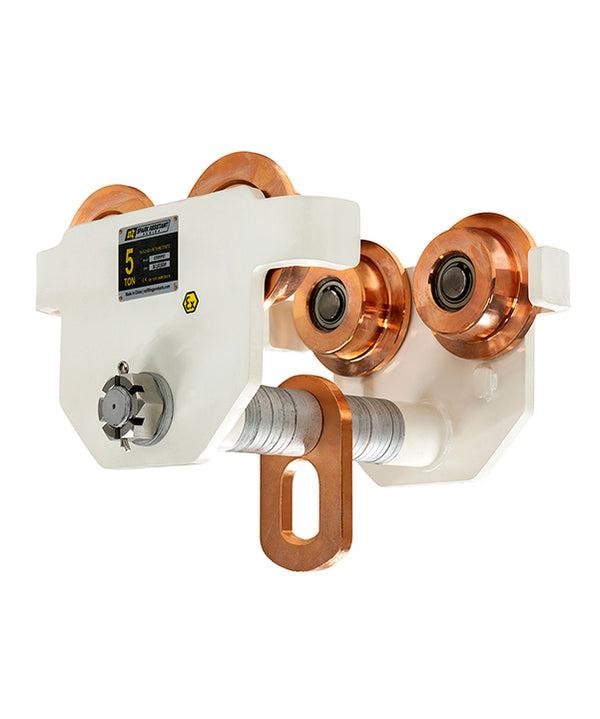

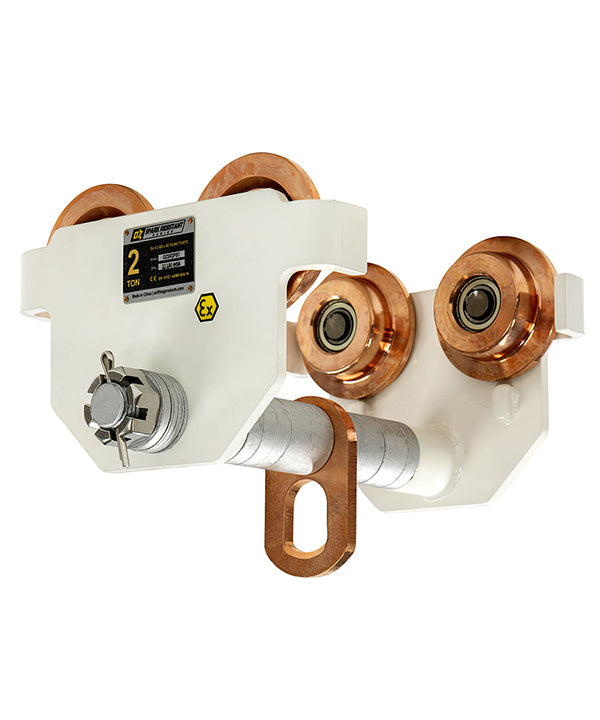

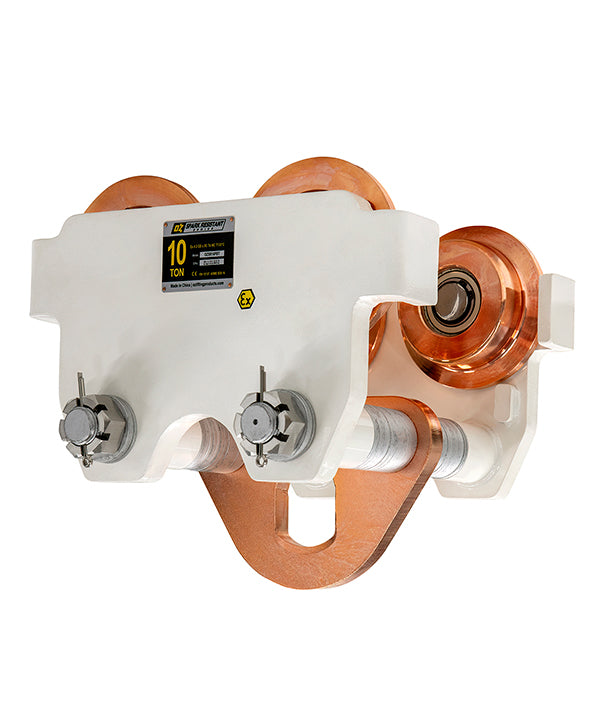

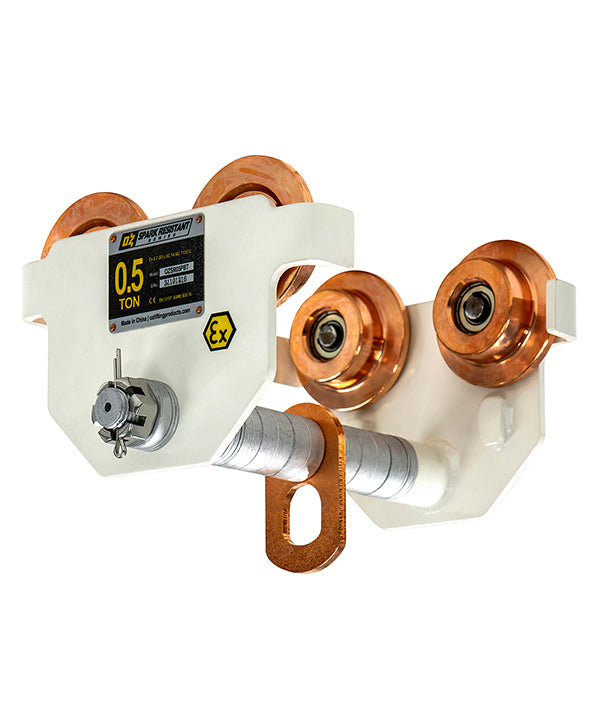

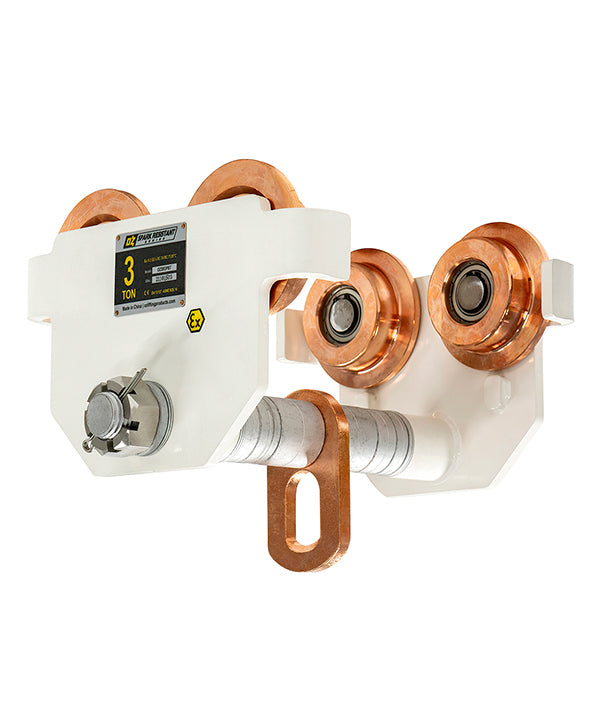

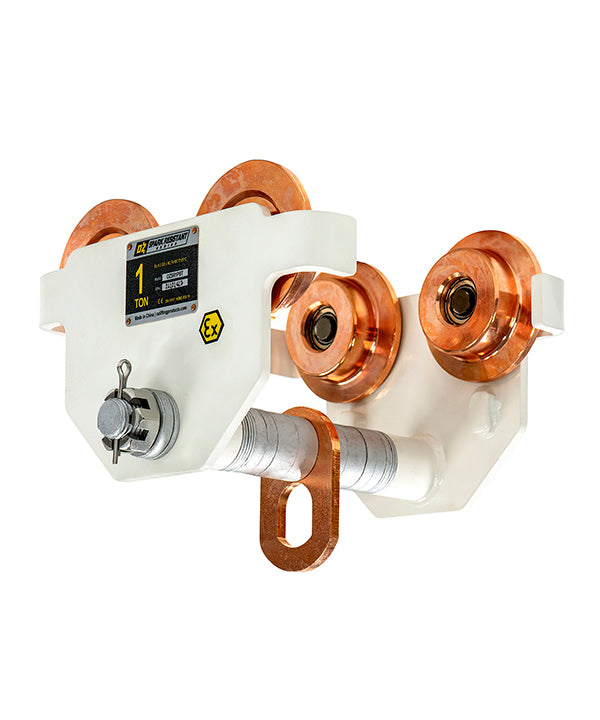

OZ Lifting Spark Resistant Push Beam Trolleys
The Oz Lifting spark resistant push beam trolley is designed for safe use in potentially explosive atmospheres. When working in explosive zones there are extremely strict guidelines and requirements for the equipment you use. These beam trolleys are designed for use with manual or powered hoists.
OZ Lifting Products’ Spark Resistant Push Beam Trolleys are manufactured in compliance with the EU’s explosion-proof standard ATEX94/9/EC and the Machinery Directive 2006/42/EC. The explosion-proof level can reach: EX II2 GD c IIIC T135°C. They are suitable for potentially explosive atmospheres including Zone 1 & 2 (gas) as well as Zone 21 & 22 (dust).
FEATURES
- Anti-spark coating
- Copper plated trolley wheels and lifting bale
- Copper riveted ID Tags
- Fits to most I, S, and W-Beams
- Precision ball bearing trolley wheels
- Anti-drop plate
- Individual test certificate and serial number
Standards – CE, ATEX–94/9/EC (Ex II 2 GD c IIC T4 IIIC T135°C), AS1418.2, ASME B30.11, ASME B30.16 (for use with manual or powered hoists)
OZSR05PBT | OZSR1PBT | OZSR2PBT | OZSR3PBT | OZSR5PBT | OZSR10PBT | ||
Capacity (tons) | .5 | 1 | 2 | 3 | 5 | 10 | |
Minimum Radius Curve (ft) | 2.62 | 3.28 | 3.61 | 4.26 | 4.59 | 6.56 | |
Product Dimensions (in) | A | 11.61 | 12.24 | 16.89 | 17.52 | 17.99 | 19.29 |
B | 7.83 | 9.69 | 10.87 | 13.07 | 14.84 | 16.69 | |
C | 7.36 | 8.74 | 10.34 | 12.17 | 13.90 | 15.59 | |
G | 4.13 | 4.92 | 5.91 | 6.73 | 7.72 | 7.48 | |
Max Flange Thickness (in) | E | 1.18 | 1.50 | 1.50 | 1.57 | 1.65 | 1.77 |
Adjustable Flange Width (in) | 1.97-8.00 | 2.50-8.00 | 3.64-12.00 | 3.94-12.00 | 4.50-12.00 | 4.88-12.00 | |
Net weight (lbs) | 16 | 23 | 42 | 64 | 95 | 196 |
Wheel & bail dimensions.
SIZE | 0.5T | 1T | 2T | 3T | 5T | 10T |
E (in) | 3.11 | 3.74 | 4.25 | 5.12 | 5.63 | 6.93 |
F (in) | 2.17 | 2.68 | 3.15 | 3.94 | 4.33 | 5.35 |
G (in) | 3.50 | 4.02 | 5.12 | 6.02 | 7.24 | 7.68 |
H (in) | 1.26 | 1.58 | 2.05 | 2.48 | 2.95 | 4.72 |
I (in) | 0.57 | 0.59 | 0.71 | 0.87 | 1.18 | 1.77 |
J (in) | 0.98 | 1.18 | 1.50 | 1.58 | 1.97 | 2.84 |
K (in) | 1.97 | 2.44 | 2.95 | 3.35 | 4.25 | 11.42 |
L (in) | 0.24 | 0.32 | 0.47 | 0.55 | 0.63 | 0.98 |
