OZ Lifting USA Push Beam Trolley with Fall Protection
Product No. OZ05PBTA-MR
Regular price
$609.84 USD
Unit price
per
Shipping calculator
Please enter correct zip code
Payment methods
Product details

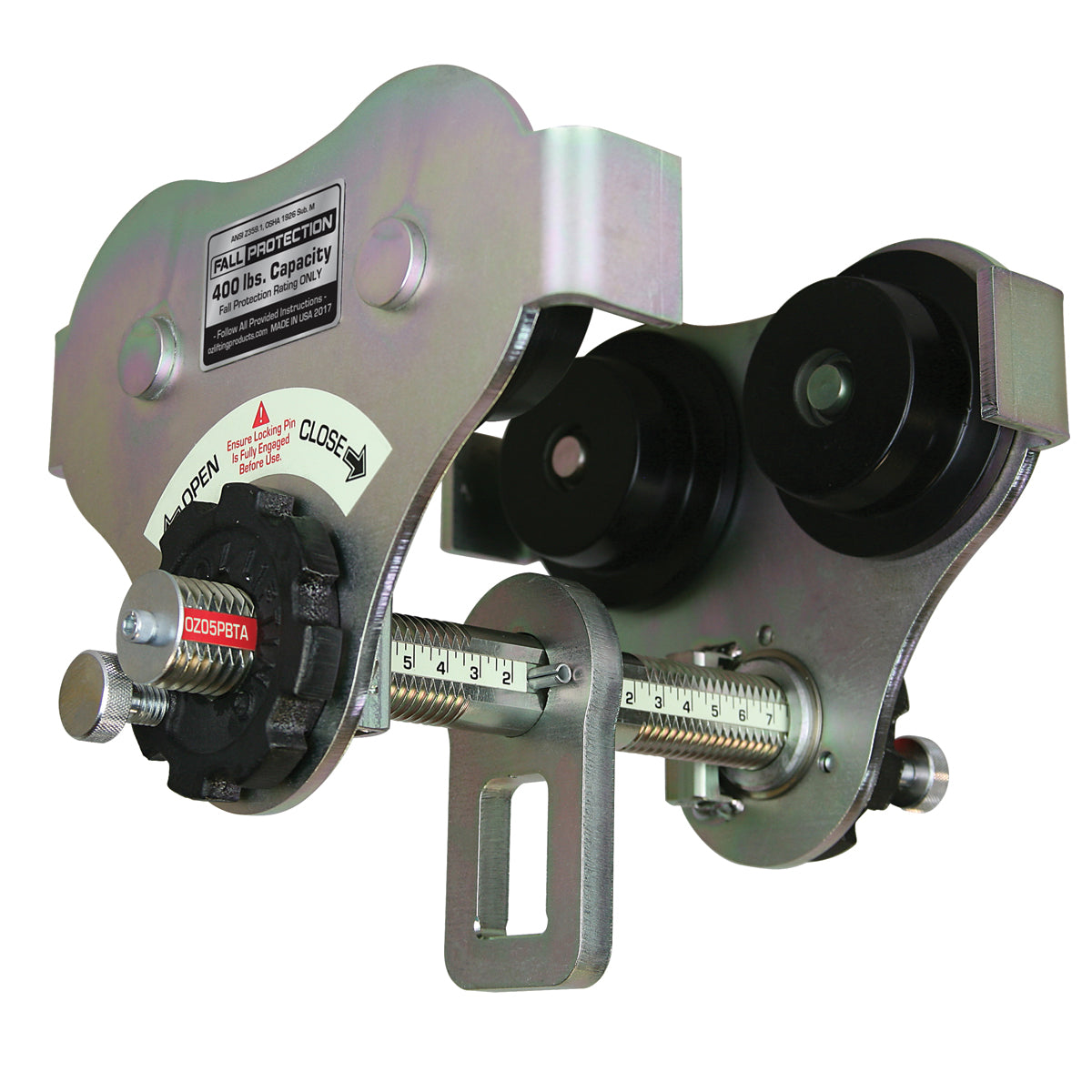

OZ Lifting USA Push Beam Trolley
The Oz Lifting USA push beam trolley with fall protection is a solid yet lightweight trolley that can with a universal wheel thread that fits most I, S and W-beams. The trolley features fall protection rated at 400lbs and is available with weight capacities of 0.5 ton and 1 ton and flange widths of 8", 12" and 16". The trolley is engineered for fall protection with premium double-sealed ball bearings and has a zinc plated finish made in the USA.
Features
- Fall Protection Rated at 400 lbs.
- Fast and easy width adjustments
- Built-in width adjustment indicator
- Universal wheel tread fits most I, S, and W-Beams
- Premium double-sealed ball bearings
- ROHS compliant zinc plated finish
- Anti-drop plates
- Glow in the dark decals
- Ships fully assembled
- Made in USA
Standards: This product meets or exceeds OSHA 1926 Subpart M, OSHA 1910, ASME Z359.1-2007, and ASME A10.32-2012 standards for fall protection.
PRODUCT CODE | OZ05PBTA-MR | OZ1PBTA-MR | |
Safe Working Load (lbs) | 1,000 | 2,000 | |
Fall Protection* (lbs) | 400 | 400 | |
Adjustable Flange Width (in) | 2.75-8.00 | 2.75-8.00 | |
Max Flange Thickness (in) | 1.12 | 1 | |
A | 11 | 11 | |
Product Dimensions (in) | B | 8.30 | 10.20 |
C | 8.50 | 9.80 | |
D | 5.00 | 5.50 | |
Minimum Radius Curve (ft) | 2.75 | 3.35 | |
Net Weight (lbs) | 16 | 26 |
WHEEL DIMENSIONS
WHEEL DIMENSIONS (in) | OZ05PBTA-MR | OZ1PBTA-MR |
E | 3.25 | 4.00 |
F | 2.38 | 3.00 |
BAIL DIMENSIONS
BAIL DIMENSIONS (in) | OZ05PBT-MR | OZ1PBT-MR |
G | 3.94 | 4.65 |
H | 1.50 | 1.97 |
I | 0.59 | 0.60 |
J | 0.95 | 1.21 |
K | 1.97 | 2.68 |
L | 0.40 | 0.48 |
