OZ Lifting Dyno-Hoist
Product No. OZDH075-5LH
🎄 Due to the busy Christmas period, please note that orders placed between Monday 16th December and Thursday 2nd January may take longer than usual to be delivered.
Regular price
$580.58 USD
Shipping calculator
Please enter correct zip code
Payment methods
Product details

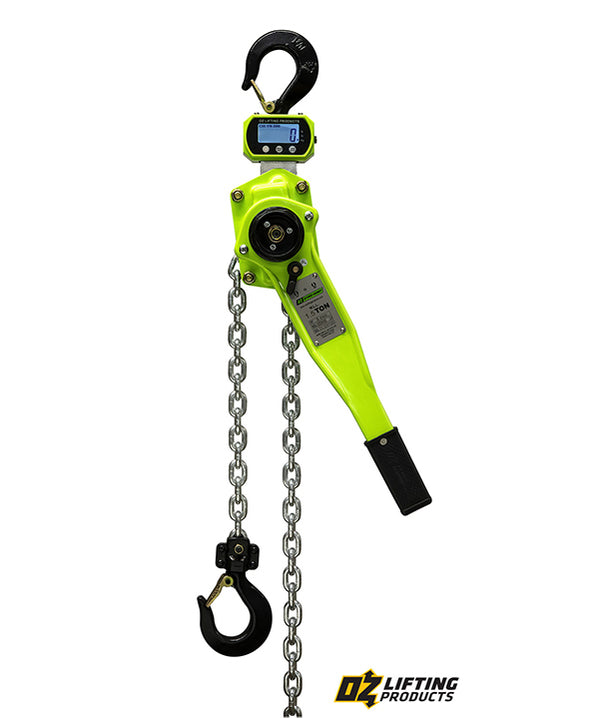

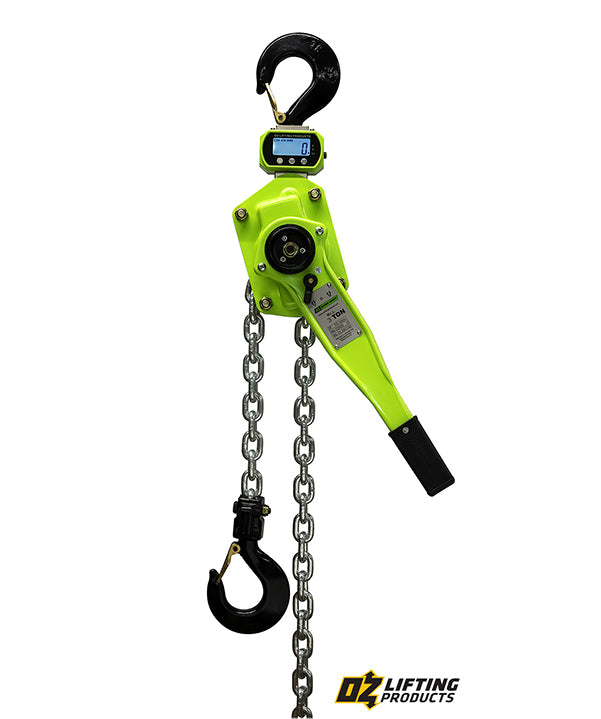

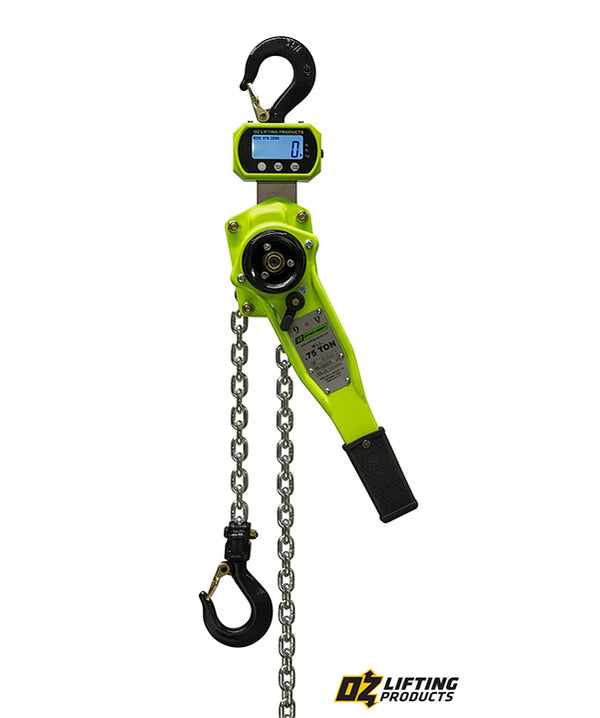

OZ Lifting Dyno-Hoist
The Oz Lifting Dyno-Hoist is a dynamometer equipped lever hoist that accurately displays the weight of the lifted load on the screen. As a safety feature the display will read "OVER" if the lifted weight exceeds 126% of the rated capacity of the hoist to prevent damages. The dynamometer can be set to display the weight in lbs or kgs and uses AA batteries with a run time of 150 hours.
FEATURES
- All-steel construction
- Steel handle with rubber grip
- Zinc plated load chain
- Forged alloy steel hooks
- Fully-enclosed gearing
- Minimal load lifting effort
- Long lasting powder coat finish
- Heavy-duty latches
- Load sheave bearings
- Weston-Style brake system
- Individual test certificate & serial number
Standards – CE, ASME B30.21, AS1418.2
| OZDH075-XXLH | OZDH150-XXLH | OZDH300-XXLH | OZDH600-XXLH | OZDH900-XXLH | ||
| Capacity (tons) | 0.75 | 1.5 | 3 | 6 | 9 | |
| Effort to Lift S.W.L. (lbs) | 31.4 | 49.50 | 72 | 76.5 | 81 | |
| Falls of Chain | 1 | 1 | 1 | 2 | 3 | |
| Load Chain Diameter (mm) | 6×18 | 8×24 | 10×30 | 10×30 | 10×30 | |
| A | 14.96 | 16.73 | 21.65 | 24.41 | 27.56 | |
| B | 5.28 | 5.91 | 7.48 | 9.53 | 12.09 | |
| Dimensional Information (in) | C | 5.71 | 6.89 | 7.68 | 7.68 | 7.68 |
| D | 11.22 | 16.14 | 16.14 | 16.14 | 16.14 | |
| E | 3.39 | 3.94 | 4.53 | 4.53 | 4.53 | |
| Hook-opening, Upper & Lower (in) | F | 1.06 | 1.42 | 1.50 | 1.89 | 2.13 |
| Net Weight of Head Only (lbs) | 16.5 | 27.94 | 45.10 | 66.00 | 96.80 |
