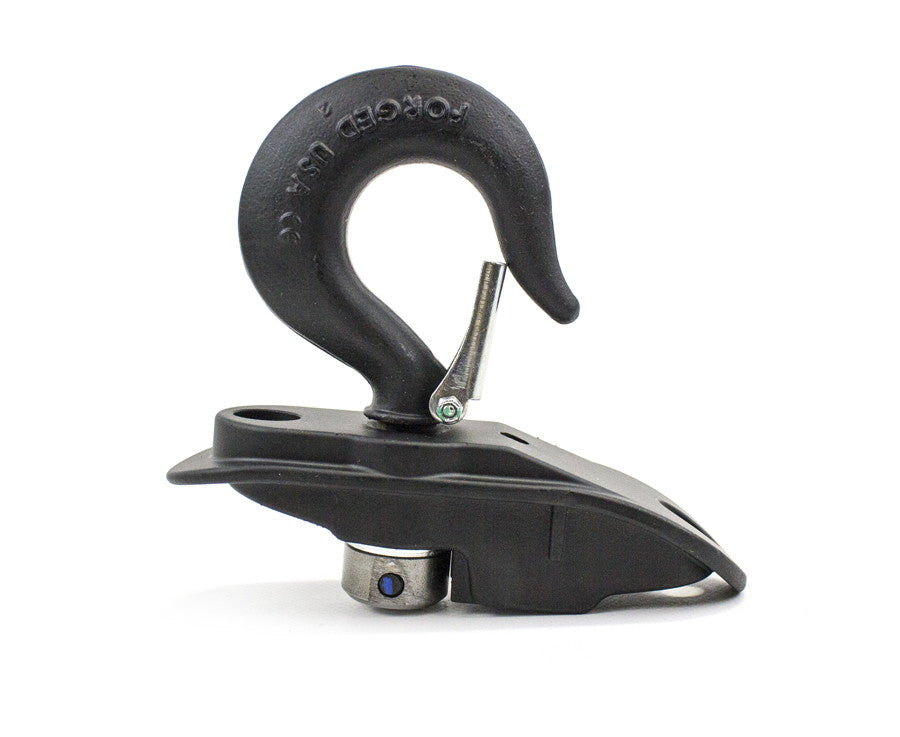

  • Lodestar Next Gen 1/2 Ton with standard swivel LatchGate hook - imagen 2

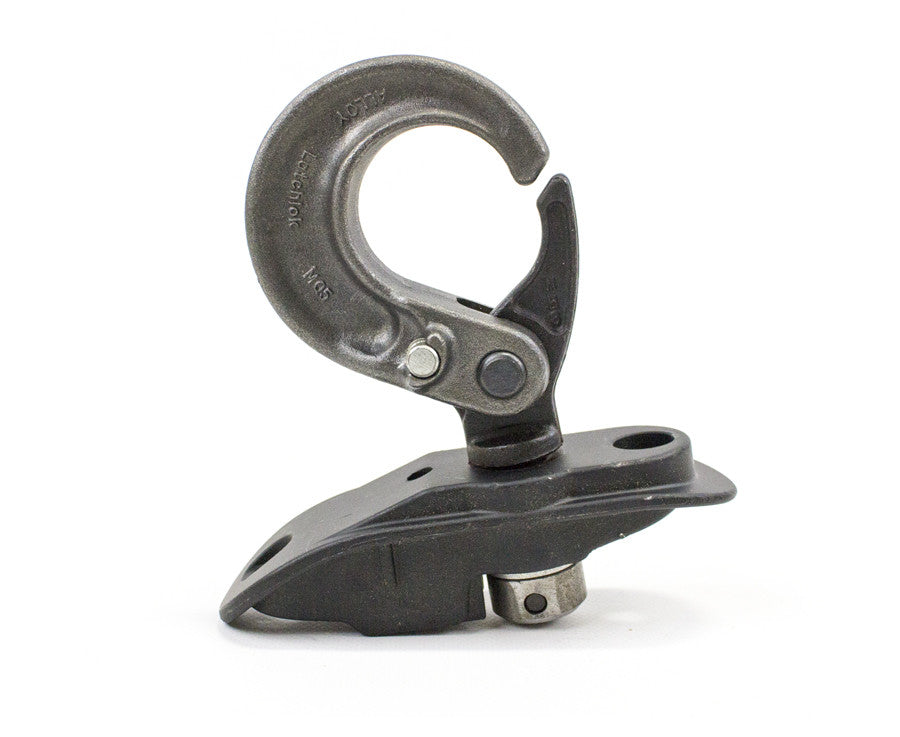

  • Lodestar Next Gen 1/2 Ton with CM swivel LatchLok hook (available on request) - imagen 3

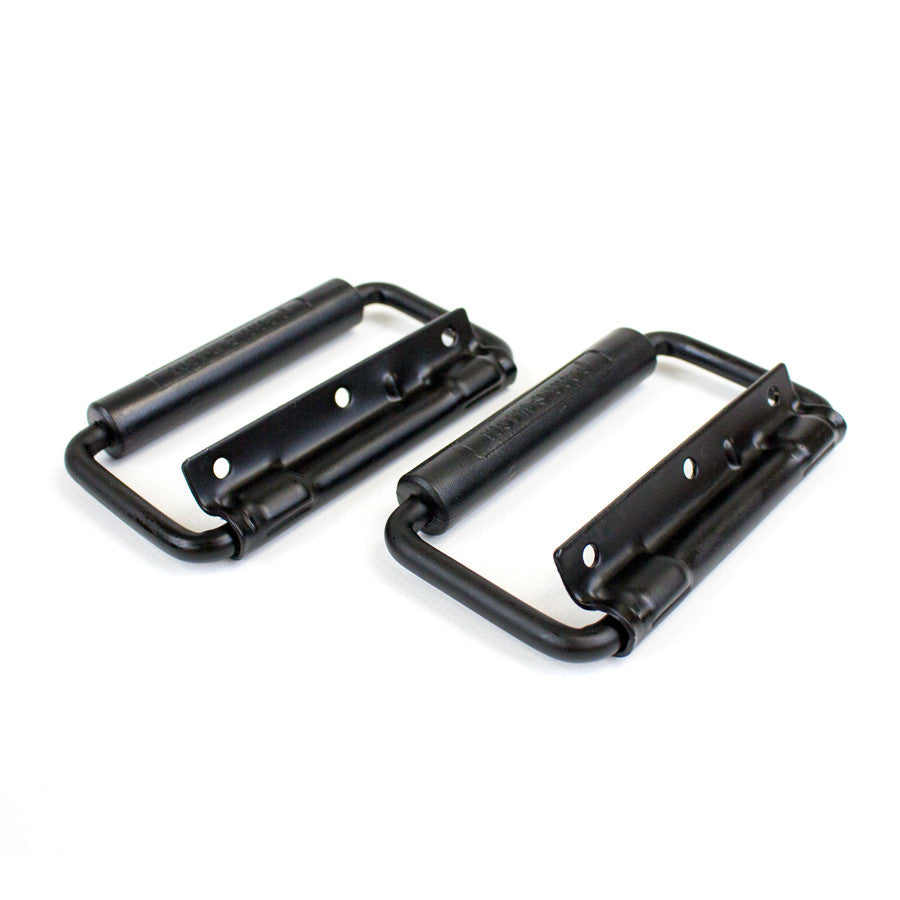

  • Lodestar Next Gen 1 Ton with MTN spring loaded handles - imagen 4

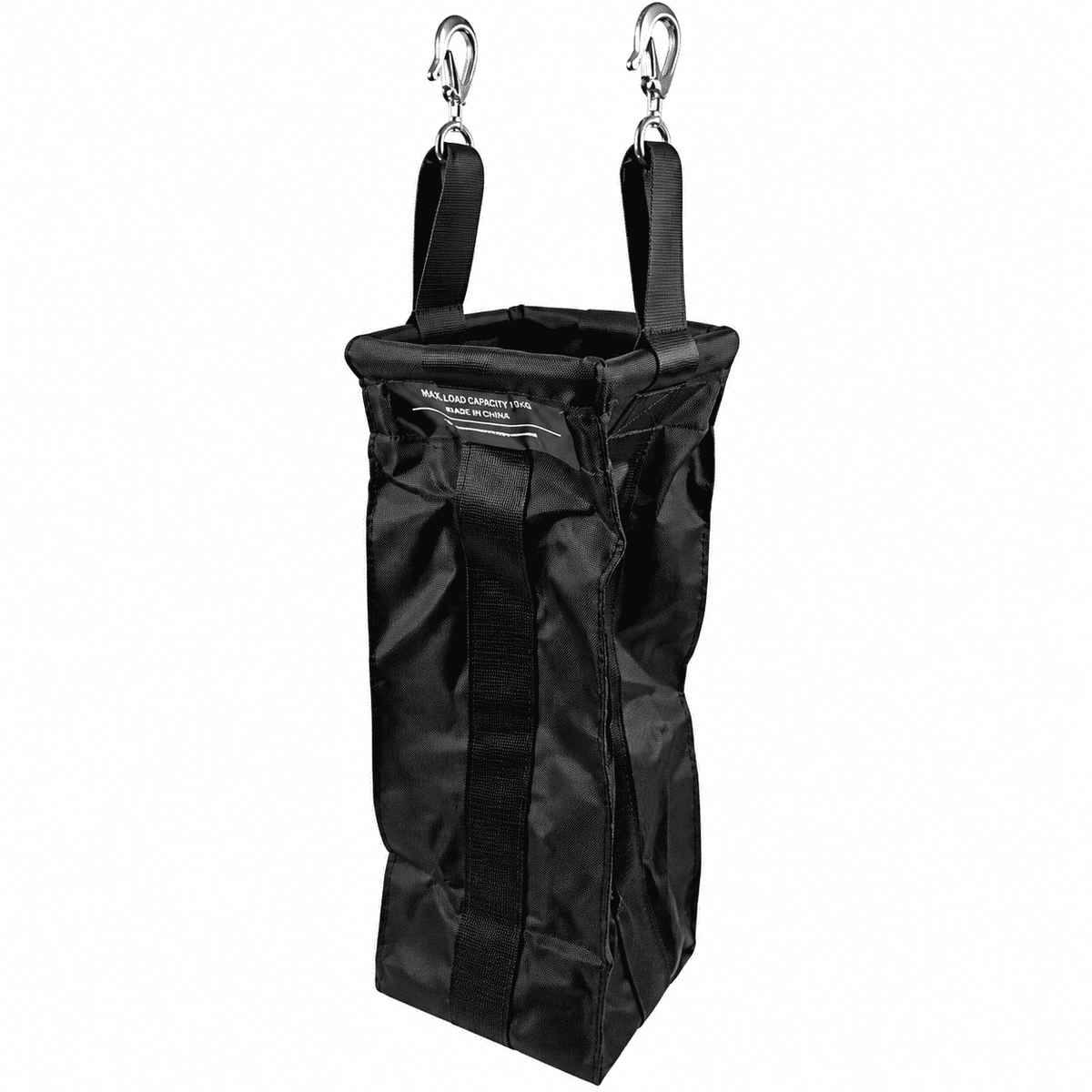

  • MTN Double Hook Chain Hoist Bag MPDH16S - imagen 5

CM Lodestar Classic Model F 1/2 Ton - Electric Chain Hoist

CM |
SKU: 3183-60-NC-HV1
$3,906.90
  • Shipping: 5-7 business days
  • CM Warranty: Lifetime on hoist
  • 1/2 Ton Capacity: Rated for 1,000 lb, single-reeved, 16 ft/min at 60 Hz with a 1/2 HP hoist-duty motor.
  • Proven Classic Design: Electromechanical brake, CM Lodestar Protector overload protection and adjustable screw-type limit switch.
  • Built to Last: Hardened steel load chain and gear train, forged steel hooks and a lightweight aluminum frame.
  • Complete Package: Ships with load chain, chain bag, MPDHV1CL bracket and your choice of connector.
View full description Technical data
Secure checkout
  • Amazon
  • American Express
  • Apple Pay
  • Diners Club
  • Discover
  • Google Pay
  • Mastercard
  • PayPal
  • Shop Pay
  • Venmo
  • Visa
Please select country
Please enter correct zip code

shipping

Test heading

What comes with your hoist

Price $3,906.90
Weight
  • Hoist
  • Load chain
  • Chain bag
  • Bracket
  • Hooks Swivel LatchGate (standard)
  • Power / control
  • Handles

CM Lodestar Classic Model F 1/2 Ton Electric Chain Hoist

The CM Lodestar Classic Model F is a 1,000 lb (1/2 ton) electric chain hoist built for concert touring, theater, live events and rental fleets. It lifts at 16 ft/min with a 1/2 HP hoist-duty motor in a single-reeved configuration, runs on 230/460V three-phase power and has a shortest distance between hooks of 14-1/4 in. (362 mm).

Every hoist ships as a complete package: 1/4 in. hardened steel load chain for your selected lift (60, 80, 90 or 100 ft), the matching chain bag (MPDH 16S for 60 ft, MPDH 20S for 80 to 100 ft), the MPDHV1CL chain bag bracket, your choice of power/control connector and optional Hoist Spring Loaded Handles V1. Units come prepped with our standard swivel LatchGate hooks by our CM-certified technicians.

Why the Classic Lodestar

  • Rugged electromechanical brake
  • CM Lodestar Protector overload protection
  • Adjustable screw-type limit switch for upper and lower hook travel
  • Hardened steel load chain and gear train, forged steel hooks and a lightweight aluminum frame
  • Dual-voltage design (230/460V) with a voltage change board

Classic or Next Gen?

Both the Classic and Next Gen Model F lift 1,000 lb at 16 ft/min with a 1/2 HP motor. The Classic uses an electromechanical brake, the CM Lodestar Protector and a screw-type limit switch, and has the shorter distance between hooks (14-1/4 in.). The Next Gen uses a heavy-duty DC brake, an adjustable clutch outside the gear train and a 5-pocket liftwheel.

Ideal for

Concert touring, theater, live event production, rental companies and entertainment rigging that need a compact 1,000 lb chain motor.

Custom Options Available

Other hooks, lift lengths, electrical configurations or fleet quantities: request a quote and our CM-certified technicians will prep your hoists to spec.

Related resources

Classic Lodestar parts · CM Lodestar Classic manual (PDF) · Chain hoist maintenance tips · MTN mobile hoist service · Guide to MTN chain hoist bags · Columbus McKinnon (CM) collection · Build-A-Hoist quoting tool · CM Lodestar lubricant guide · CM Lodestar current draw chart · CM Lodestar contactor history · Lodestar serial number system · The meaning behind the name "Lodestar" · Hoist servicing (Part 1) · Hoist servicing (Part 2)

Safety: Always install, operate, inspect and maintain the hoist according to the CM manual and the requirements of the lifting application. Never exceed the rated capacity. Not for lifting people.

Why buy your CM hoist from MTN

CONFIGURED TO YOUR SPECIFICATIONS

Every hoist is inspected and configured by our CM-certified technicians prior to shipment, with ongoing parts availability and service support

Request a quoteContact Us

  • CM-Certified Technicians:

    Hooks, control handles and connectors are configured to your requirements before the hoist is dispatched.

  • On-Site Hoist Service:

    On-site inspection and repair from the MTN Hoist Service team.

  • Next Gen Parts Availability:

    Genuine replacement parts in stock and ready to ship.

  • Fleet & volume orders

    Expanding your rental inventory? Contact us about multi-hoist packages, including road cases.

Related Products

Explore chain hoists, controllers and accessories for concerts, theater, touring productions and professional entertainment rigging.

View all

Frequently Asked Questions

What is the difference between the CM Lodestar Classic Model F 1/2 Ton and the Next Gen Model F?
Both lift 1,000 lb at 16 ft/min with a 1/2 HP motor. The Classic uses an electromechanical brake, the CM Lodestar Protector and a screw-type limit switch. The Next Gen adds a heavy-duty DC brake, IP65 protection, an external adjustable clutch and a 5-pocket liftwheel. The Classic has the shorter distance between hooks: 14-1/4 in. versus 16.9 in.
What is included with the CM Lodestar Classic Model F 1/2 Ton?
Each hoist ships with 1/4 in. hardened steel load chain for your selected lift (60, 80, 90 or 100 ft), the matching chain bag (MPDH 16S for 60 ft, MPDH 20S for 80 to 100 ft), the MPDHV1CL chain bag bracket, standard swivel LatchGate hooks and your chosen connector.
Which connector should I choose for the CM Lodestar Classic Model F 1/2 Ton?
Choose the connector that matches your power and control system: Dual Twist (L16-20 power with L14-20 control), C7 or P14. The L14-20 versions add an auxiliary individual control. Choose No Connectors if you will fit your own. The hoist runs on 230/460V three-phase power.
What hook and handle options are available for the CM Lodestar Classic Model F 1/2 Ton?
Every hoist comes prepped with standard swivel LatchGate hooks. CM Latchlok hooks and rigid hook suspensions are available on request through a quote. Handles are optional: choose No Handles or Hoist Spring Loaded Handles V1 when you configure the hoist.
What standards does the CM Lodestar Classic Model F 1/2 Ton meet?
According to CM, the Classic Lodestar is built to meet the applicable sections of ASME B30.16 (Overhead Hoists), the National Electrical Code (ANSI/NFPA 70), OSHA, TÜV and the CE Directive. Always check that your installation also complies with local codes.
