CM CS - L14-20 SKJ
PINOUTS FOR CONTROL STATIONS
|Skjonberg / Motion Labs||COMMON||DOWN||UP|
When selecting an assembly and pinout for your control station, please reference the chart above. If you are unsure of what type of pinout you require, select "I Don't Know" and we will contact you to make sure you receive exactly what you need.

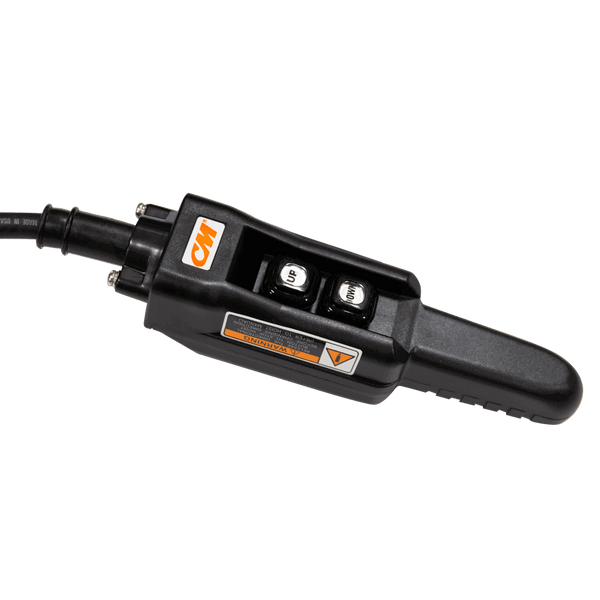

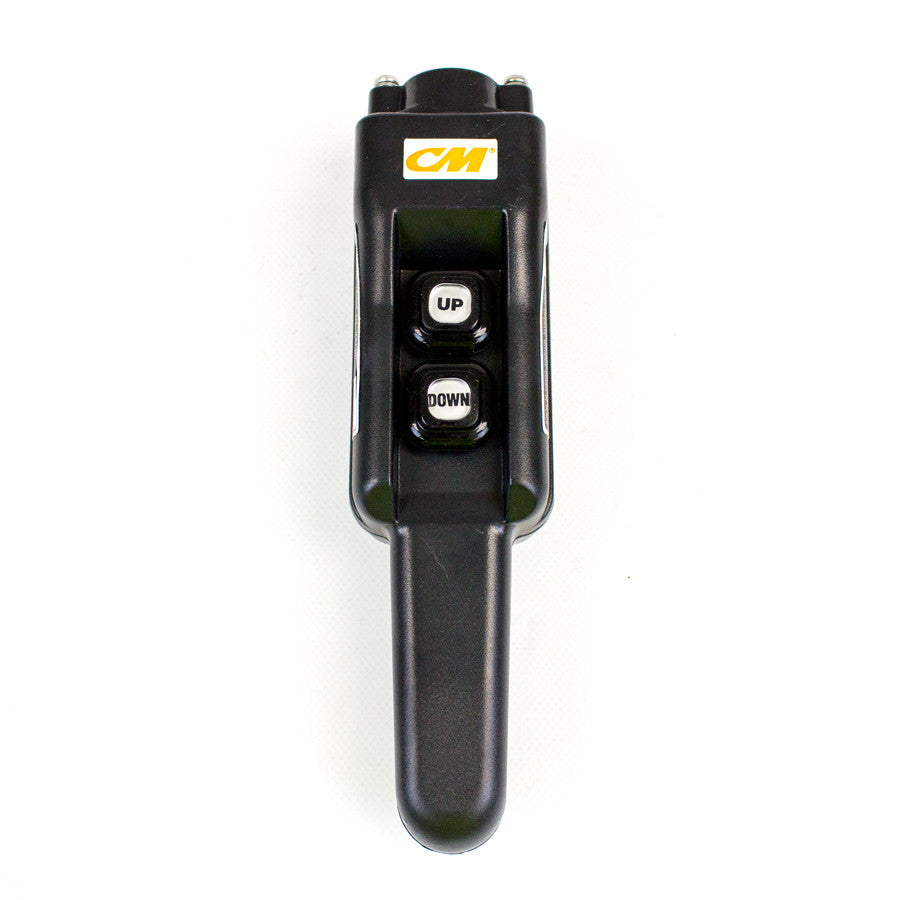

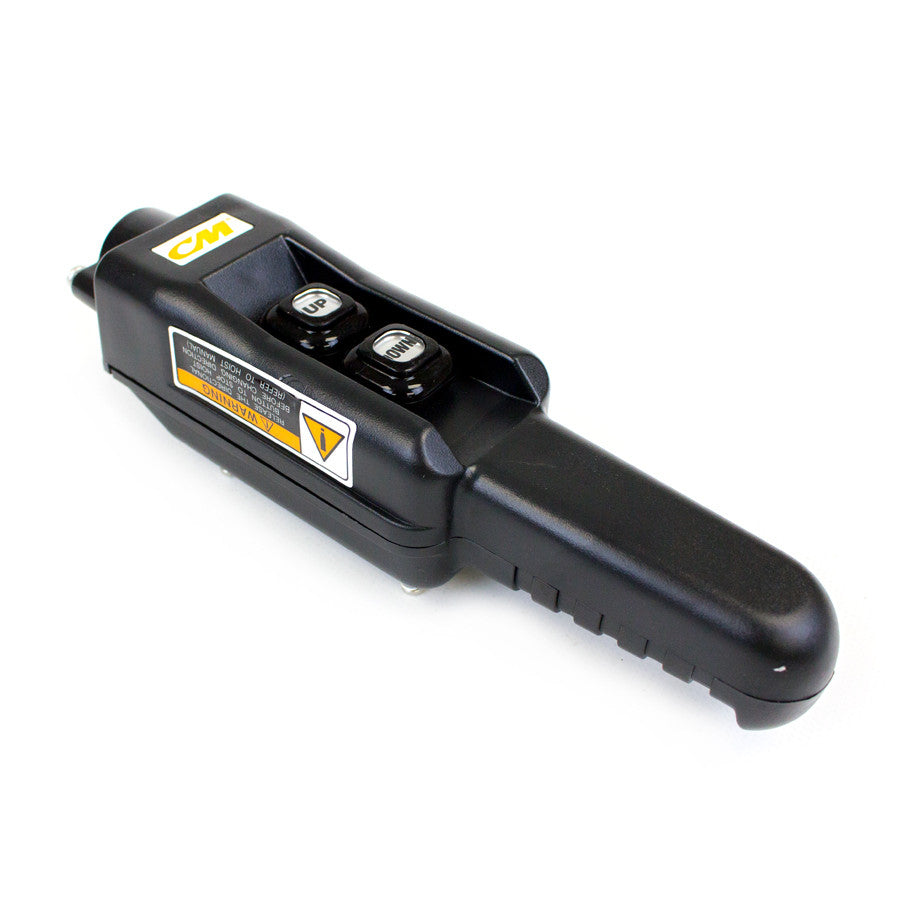

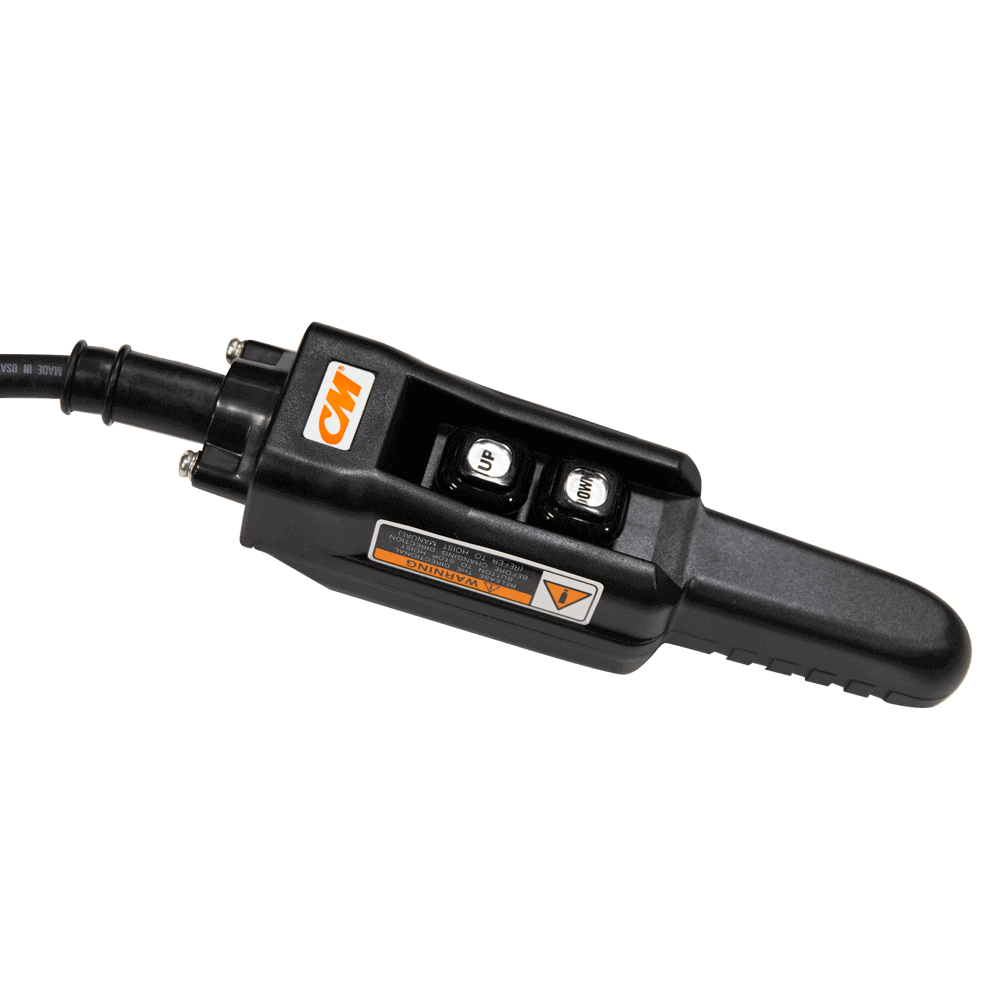

When your hoists are safely rigged and you’re ready to turn the power on, trust in CM’s Control Stations. Known in the industry as a “pickle”, the CM Control Station is an ergonomic and user-friendly controller for hoist operation. Domestically made by Columbus McKinnon, this quality control station is simple to operate and an industry standard.

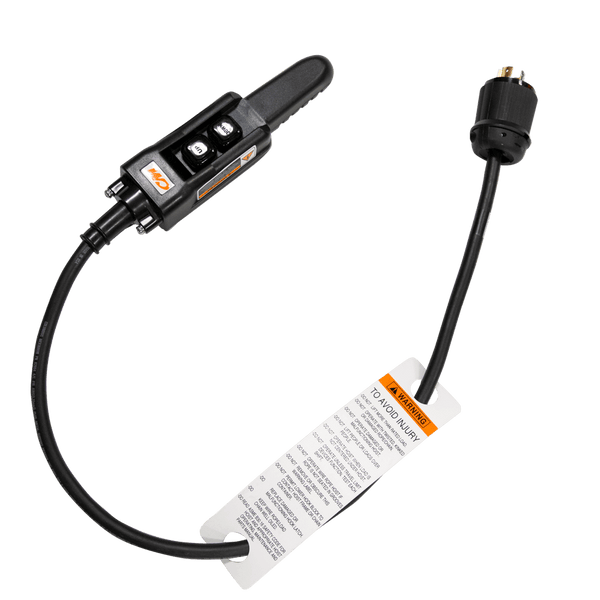

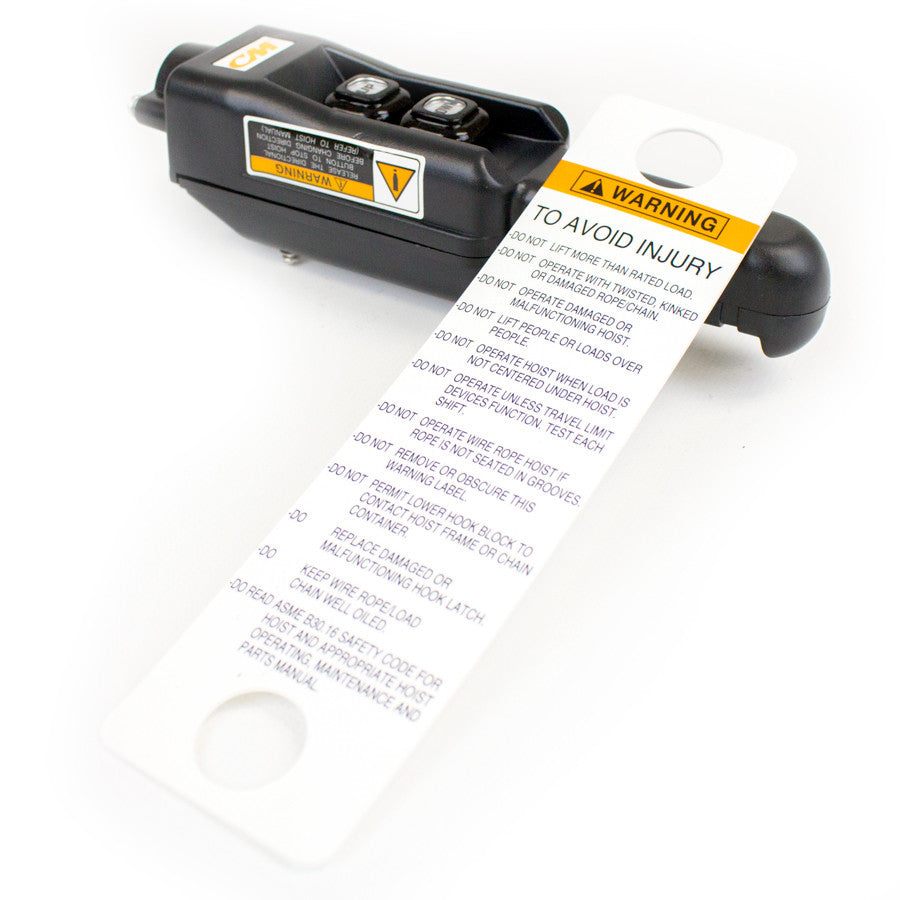

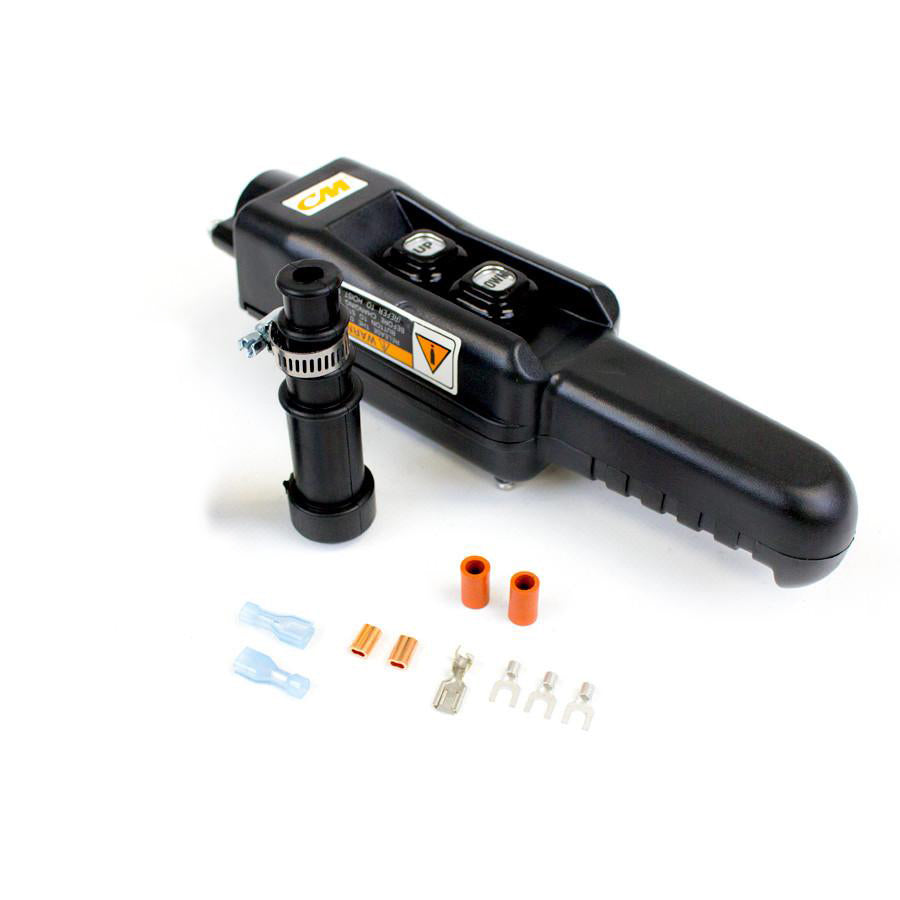

The CM Control Station includes all of the necessary hardware and wiring to install, as well as a warning label kit to help users remember proper and safe protocol. Like all CM hoists, trolleys, and other products, Mountain Productions can help you find genuine CM replacement parts. Simply visit our RFQ form and send us a note.
