Doughty Trigger Hanging Clamp

Doughty Trigger Hanging Clamp

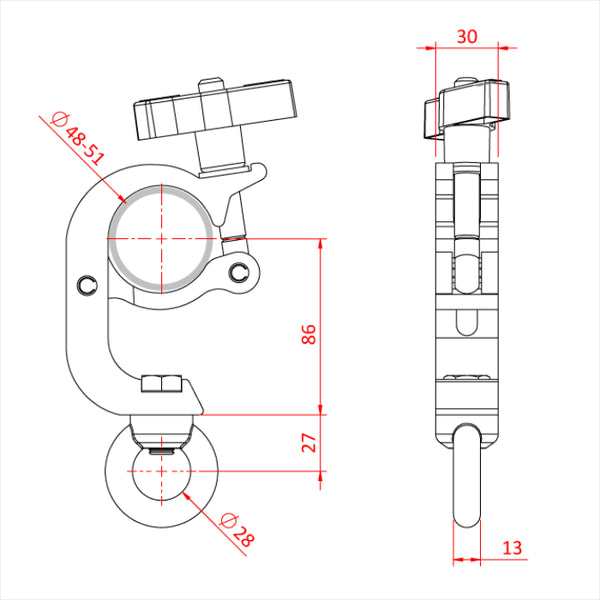

A high tensile extruded aluminium trigger clamp that is suitable for 48mm to 51mm (1.89″ – 2.01″) diameter tubes. Has a WLL of 200Kg and is 30mm (1.18″) wide factory fitted with an Eye Nut. Available in polished silver or powder coated black.

This professional-grade clamp offers a secure and reliable solution for rigging and suspension tasks in entertainment and industrial environments. The factory-fitted Eye Nut streamlines installation, making it ideal for lighting, staging, and structural applications.

Designed to deliver strength and precision, the Doughty Trigger Hanging Clamp ensures compatibility with a wide range of tube diameters, while maintaining ease of use and long-lasting performance.

Downloads:

Data Sheet

Key Features:

• Constructed from high tensile extruded aluminium for superior durability
• Compatible with 48mm – 51mm (1.89″ – 2.01″) diameter tubes
• Factory fitted with an Eye Nut for efficient rigging

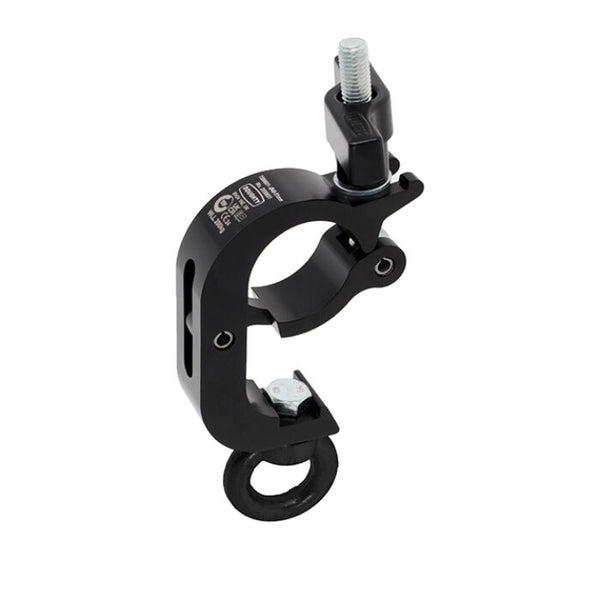

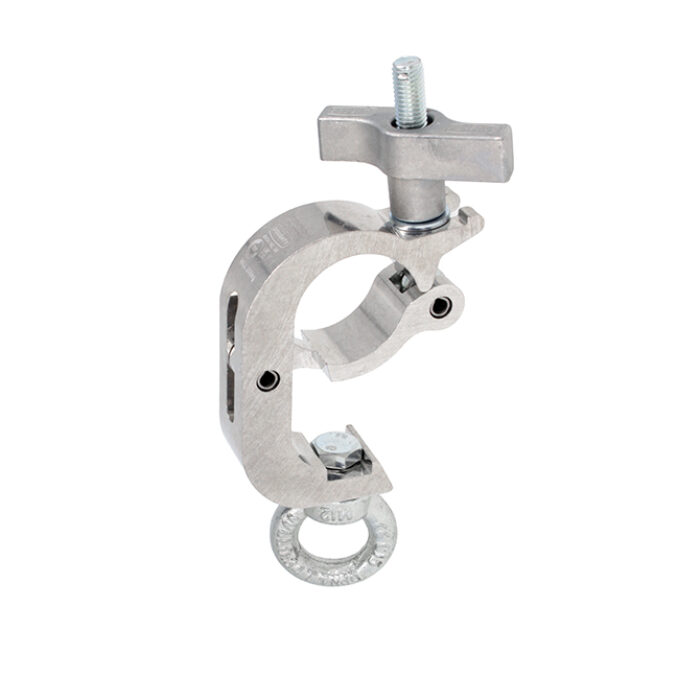

• Available in polished silver or powder coated black finishes
• Wide 30mm (1.18″) clamp body for stable and secure mounting

Specifications:

• WLL: 200Kg
• Tube Diameter: 48mm – 51mm (1.89” – 2.01”)
• Clamp Width: 30mm (1.18")
• Material: High tensile extruded aluminium
• Finish Options: Polished silver or powder coated black

References:

• Doughty Engineering Official Catalogue
• T58862-T5886201 Product Specification Sheet
• Industry Standard Rigging Applications
