Doughty Fixed Truss Adapter

Doughty Fixed Truss Adapter

Doughty Truss Adapters enable triangular and square truss sections to be mounted to any of the Doughty Winch Stand range. This system provides the means to lift truss sections into place safely.

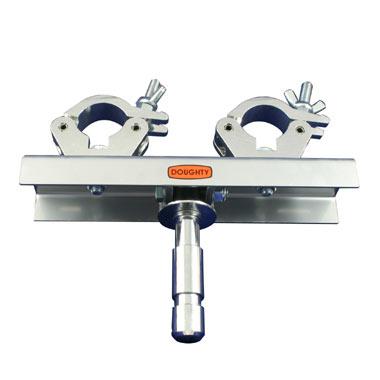

The Fixed Truss Adapter provides a firm fixing for more elaborate truss constructions. Two sizes are available and they are supplied with two slimline couplers.

For any inquiries, please contact us via chat.

Downloads:

User Manual

Key Features:

• Provides a safe and secure means of lifting trusses
• Adjustable to suit most truss sizes
• Comes with two high tensile 6082-T6 aluminum couplers
• High-quality silver powder coated

Specifications:

• SWL: 441 lbs
• Tube Diameter: 1.9'' - 2''
• Truss Adaptors Sizes:
  T57210: 5.9'' - 9.8'' Centers
  T57211: 7.9'' - 15.7'' Centers
• Spigot: ⌀1.1''
• Weight: 5.56 lbs

References:

• Manufactured by Doughty Engineering
• Member of PLASA (Professional Light and Sound Association)
• Member of ESTA (Entertainment Services and Technology Association)

Doughty Engineering is a UK-based entertainment equipment manufacturer and began the manufacture of products in 1985. Now, it is one of the world’s leading manufacturers of rigging, suspension and lifting equipment for film/TV, theatre and concert halls. Quality and safety are key issues for Doughty. As a member of PLASA and ESTA, Doughty adheres strictly to the standards of trading expected.
