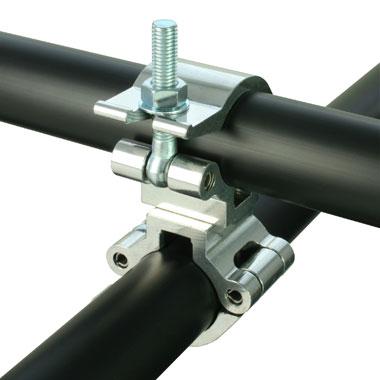

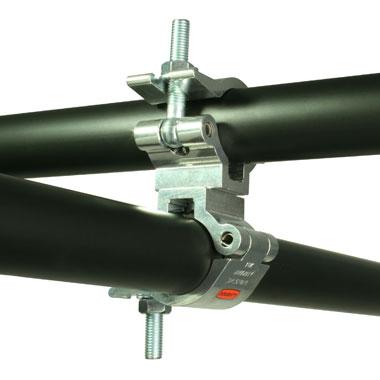

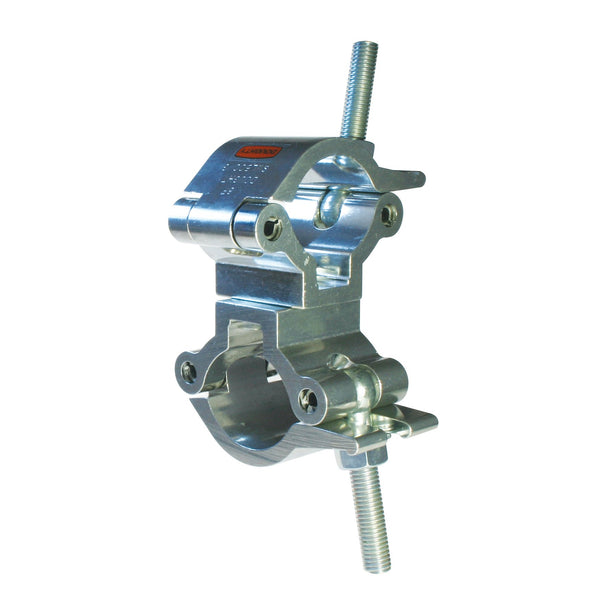

Doughty Lightweight 90 Degree Fixed Coupler - 2'' Diameter

Doughty Lightweight 90 Degree Fixed Coupler - 2'' Diameter

The Doughty Lightweight 90 Degree Fixed Coupler weighs 43% less than their standard Coupler, and is perfectly suitable for lightweight installation. Like the standard coupler, it provides a firm and fast fixing between two perpendicular bars, designed to fit 2'' diameter tubes.

Manufactured from high tensile Aluminum Extrusion, this Coupler is specifically designed to attach to round tubes or truss chords and to suspend equipment and luminaries. Broadly applicable in the theatre, film, TV and photographic industries.

Lightweight Swivel and Parallel versions are also available.

Downloads:

User Manual

Key Features:

• Lightweight design – 43% lighter than the standard fixed coupler
• Provides firm and secure fixing between two perpendicular 2'' diameter bars
• Ideal for lightweight installations in theatre, film, TV, and photography
• Manufactured from high tensile Aluminum Extrusion for durability
• Available in Black or Polished Aluminum finish

Specifications:

• SWL: 1102 lbs
• Tube Diameters: 2''
• Width: 1.97''
• Tube Centres: 3.3''
• Weight: 1.7 lbs

References:

• Spec Sheet
• User Manual
• Cert

Doughty Engineering, established in 1985, is a renowned UK-based manufacturer of rigging, suspension, and lifting equipment. As a member of ESTA and PLASA, Doughty adheres to strict standards of quality and safety, making it a trusted name in the global entertainment industry.
