Doughty 25mm Atom 90° Fixed Coupler

Doughty 25mm Atom 90° Fixed Coupler

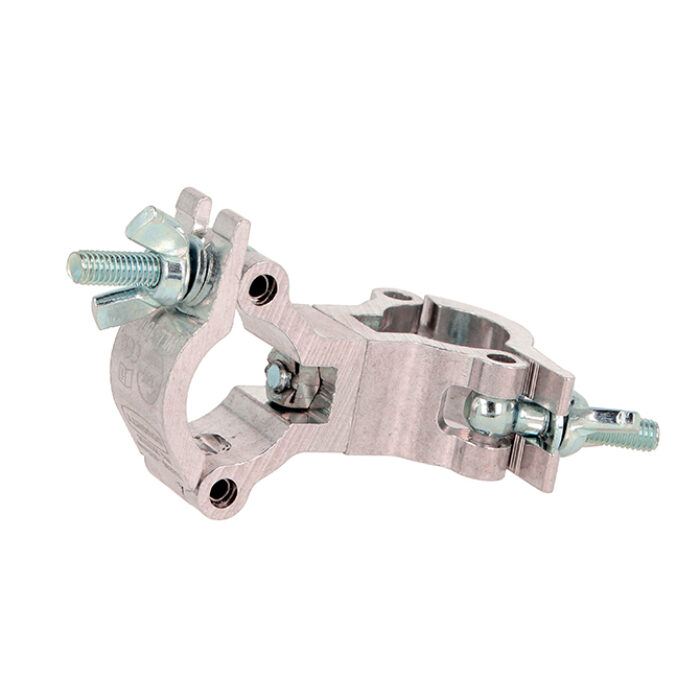

Consists of a pair of high tensile extruded aluminium clamps back to back locked at 90 degrees that are suitable for 25mm (1″) diameter tubes.

It has a WLL of 100Kg and uses a pair of 21mm (0.83″) wide clamps.

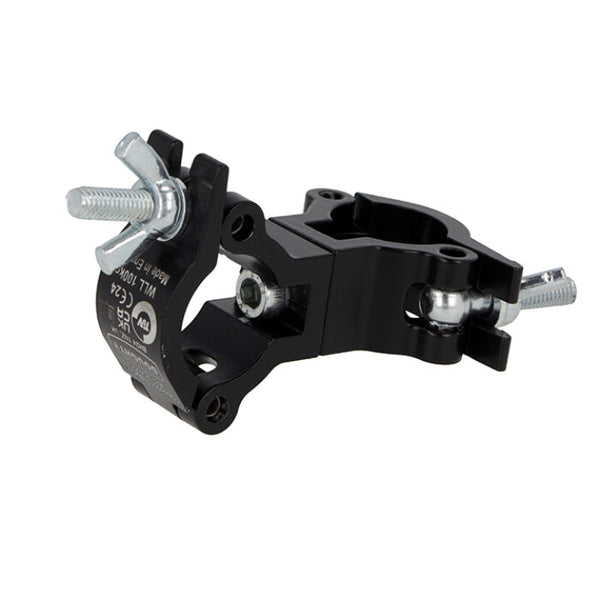

Ideal for decorative trussing as it will not damage the cords. Available in polished silver or powder coated black.

Downloads:

Data Sheet

Key Features:

• High tensile extruded aluminium construction
• Fixed 90° back-to-back clamp configuration
• Compatible with 25mm (1″) diameter tubes
• 21mm (0.83″) wide clamps to ensure secure fastening
• Available in polished silver or powder coated black finish

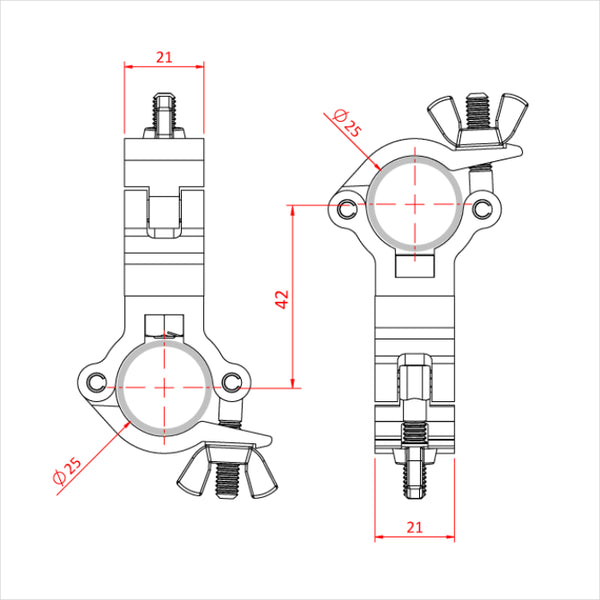

Specifications:

• WLL: 100Kg
• Tube Diameter: 1" - 25mm
• Clamp Width: 21mm (0.83")

References:

• Doughty Engineering
• Atom Clamp Series
• Truss Accessories
