Doughty 90° Fixed Coupler

Doughty 90° Fixed Coupler

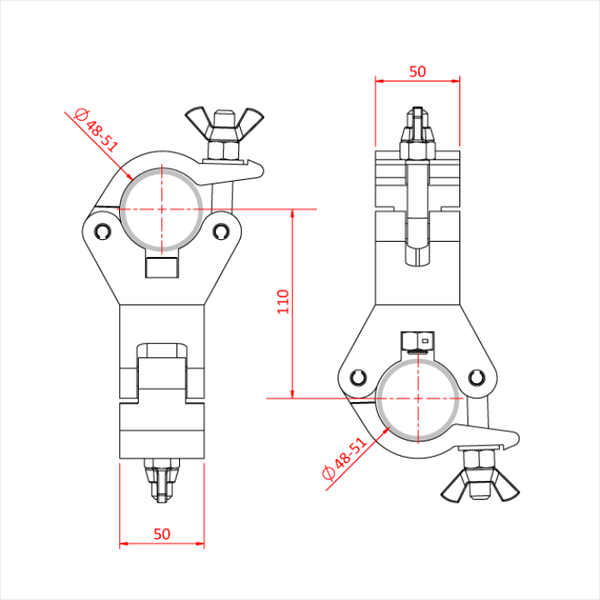

The industry standard 90 degree fixed coupler, consists of a pair of high tensile extruded aluminium clamps back to back, locked at 90 degrees that are suitable for 48mm to 51mm (1.89″ – 2.01″) diameter tubes.

It has a WLL of 750Kg and uses a pair of 50mm (1.97″) wide clamps.

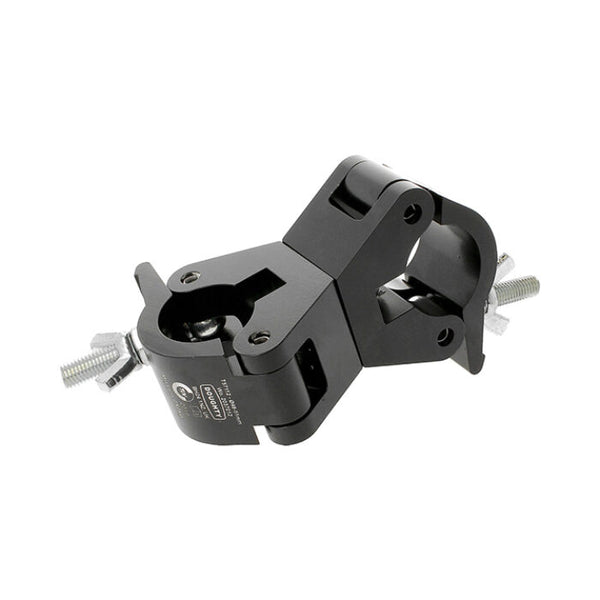

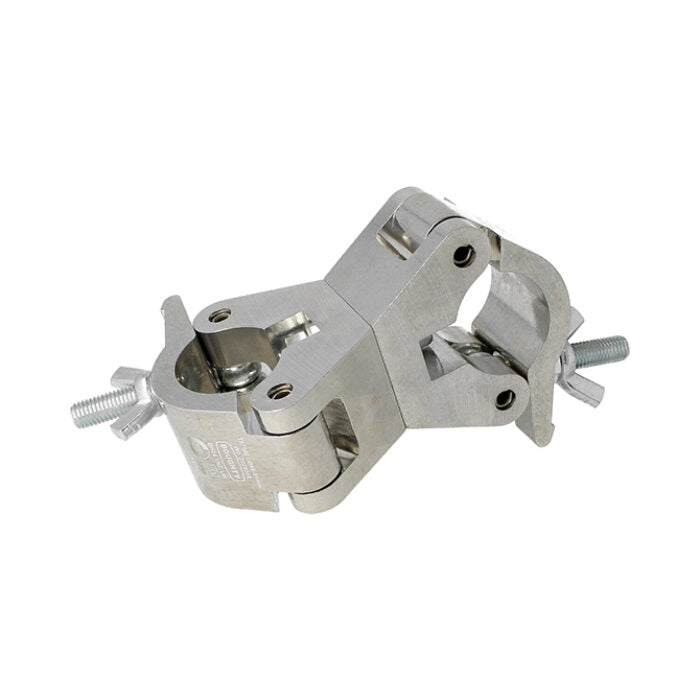

Ideal for trussing as it will not damage the cords. Available in polished silver or powder coated black.

Downloads:

User Manual

Key Features:

• Industry standard 90 degree fixed coupler
• Back-to-back high tensile extruded aluminium clamps
• Compatible with 48mm to 51mm (1.89″ – 2.01″) diameter tubes
• Ideal for trussing applications with non-damaging design
• Available in polished silver or powder coated black

Specifications:

• WLL: 750Kg
• Tube Diameter: 48mm – 51mm (1.89” – 2.01”)
• Clamp Width: 50mm (1.97")
• Material: High tensile extruded aluminium
• Fixed at 90 degrees
