Doughty 38mm Atom Hanging Clamp

Doughty 38mm Atom Hanging Clamp

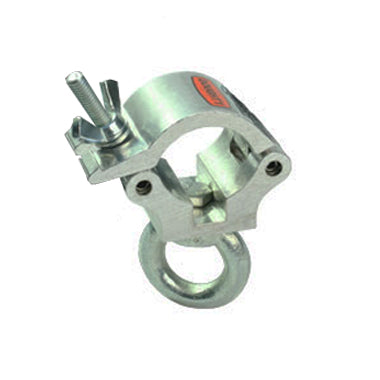

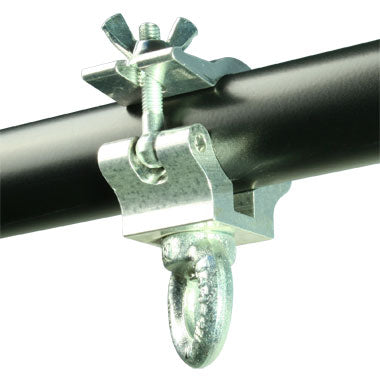

The Doughty Atom Eye Clamp is expertly engineered from high tensile Aluminum Extrusion and comes pre-fitted with an Eye Nut for secure suspension. Designed for professional rigging applications, this compact hanging clamp is perfect for suspending wire-hung loads and attaching securely to round tubes or truss chords.

This clamp is suitable for tube diameters of 1'', 1.25'', and 1.5'', offering flexibility across a wide range of rigging configurations. It is widely used in theatre, film, TV, and photographic industries due to its robust construction and reliable performance.

Explore our full range of Doughty Eye Clamps to find the ideal solution for your specific rigging needs.

Downloads:

User Manual

Key Features:

• Manufactured from high tensile Aluminum Extrusion for superior strength
• Fitted with Eye Nut for safe and secure wire-hung suspension
• Compatible with 1'', 1.25'', and 1.5'' diameter tubes
• Ideal for use in theatre, film, TV, and photographic setups
• Available in Black or Polished Aluminum finish

Specifications:

• SWL: 220 lbs
• Width:
  T58890 - 0.83''
  T58840 - 1.18''
  T58990 - 1.18''

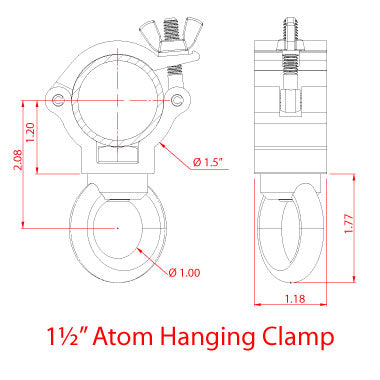

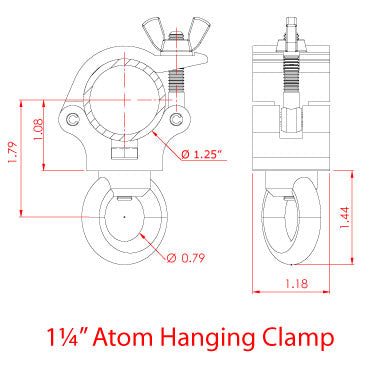

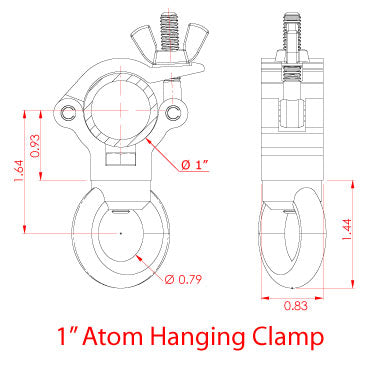

• Tube Diameters: 1'', 1.25'' and 1.5''
• Fixings:
  T58890 - M6 Eye Nut
  T58840 - M6 Eye Nut
  T58990 - M10 Eye Nut
• Finish: Black or Polished Aluminum

References:

• User Manual
• Spec Sheet
• Cert
