Product details

Doughty 25mm Atom Hanging Clamp

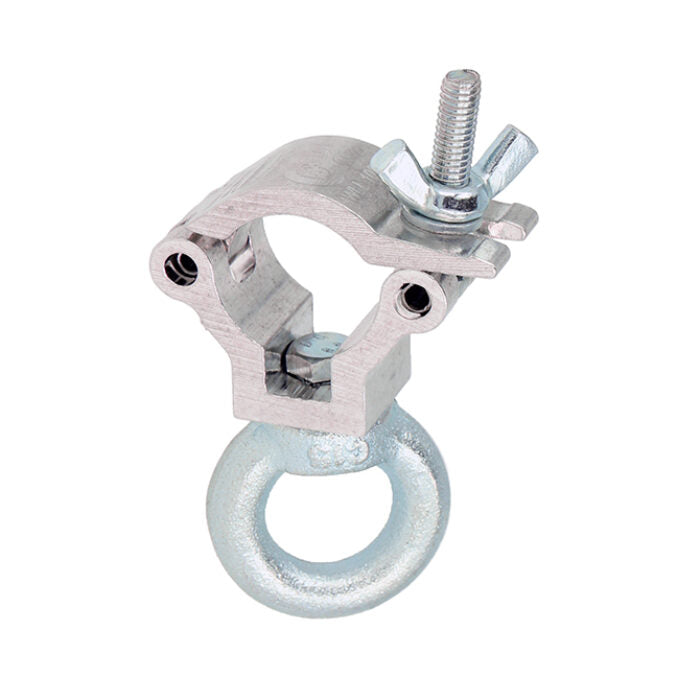

A high tensile extruded aluminium clamp that is suitable for 25mm (1″) diameter tubes. It has a WLL of 100Kg and is 21mm (0.83″) wide factory fitted with an M6 Eye Nut. Ideal for decorative trussing as it will not damage the cords. Available in polished silver or powder coated black.


Downloads:

User Manual




Key Features:

  • High tensile extruded aluminium construction
  • Compatible with 25mm (1″) diameter tubes
  • Factory fitted with M6 Eye Nut
  • Ideal for decorative trussing with no cord damage

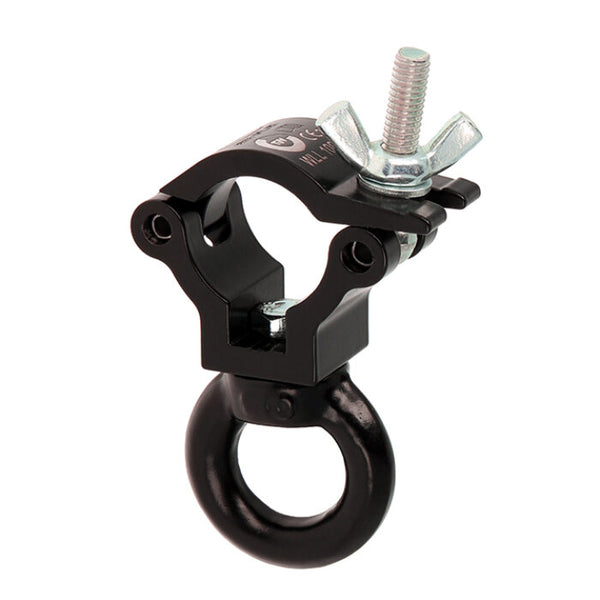

  • Available in polished silver or powder coated black finish

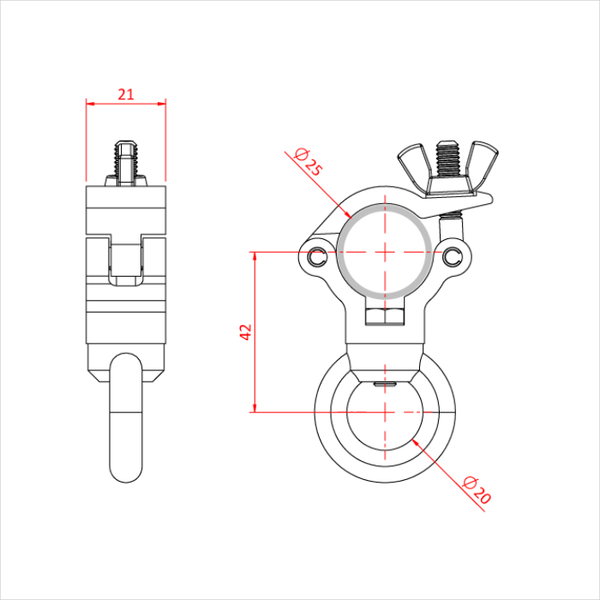

Specifications:

  • WLL: 100Kg
  • Tube Diameter: 1" - 25mm
  • Clamp Width: 21mm (0.83")
  • Material: High tensile extruded aluminium
  • Fitting: M6 Eye Nut (factory fitted)



References:

  • Doughty Engineering
  • Atom Clamp Series
  • Product Code: T58890 / T5889001
