Green Pin® Theatre Shackle SC
$5.82
Green Pin® Theatre Shackle SC
$5.82
In stock
Article Code:
GPBHBB06
- No glare or unwanted reflections thanks to the matte black finish.
- Quick assembly with screw collar pin.
- Designed for theater and stage rigging.
- The recessed chamber in the shackle eye protects the screw thread and helps reduce wear.
- Reliable Green Pin® quality and support
Please enter correct zip code
Green Pin® Theatre Shackle SC

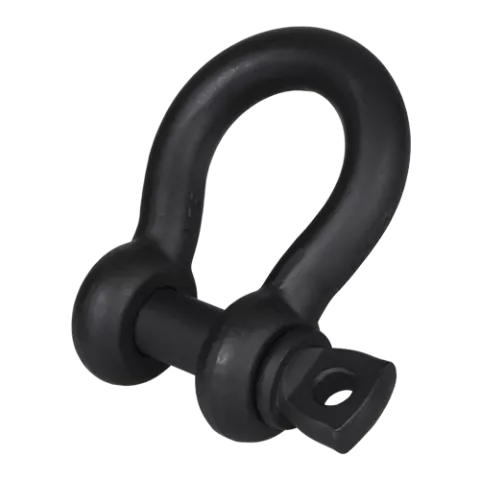

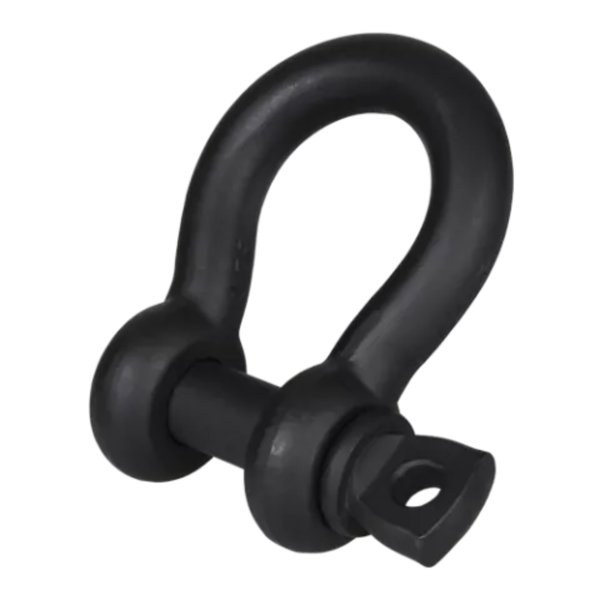

The Green Pin® Theatre Shackle SC is a matte black bow shackle with a screw collar pin, specifically designed for use in theaters, stages, and entertainment venues. Its non-reflective black finish eliminates unwanted glare and reflections, ensuring that it does not distract from stage performances or lighting effects.
The screw pin design allows for quick and easy assembly and disassembly, making it ideal for rigging applications where equipment is frequently installed and removed. In addition, the shackle features a recessed chamber in the eye that conceals the screw thread and helps reduce rope wear during use.
Available in a range of working load limits from 0.33 up to 8.5 tons, the Green Pin® Theatre Shackle SC combines professional functionality with the trusted reliability and quality of Green Pin® products.
Product Features:
- Matte black bow shackle with screw collar pin
- Designed specifically for theaters and entertainment venues
- Non-reflective finish eliminates glare and light reflections
- Screw pin enables quick assembly and disassembly
- Recessed chamber in the shackle eye protects the screw thread
- Reduces rope wear during operation
- Ideal for frequent rigging applications
- Available with working load limits from 0.33 t to 8.5 t
- Reliable Green Pin® quality and support
Note: Main dimensions, general info and warnings can be found in our latest catalogue.
If the recommendations in this product information are followed performance of the shackles is guaranteed:
- permanent identification marks, or symbols, are to be made by dot peen marking or with stamps having rounded profiles (low stress stamps).
- laser markings are allowed as long as the heat of the laser does not influence the material structure and properties in a negative way. The laser marking must be legibly and indelibly marked in a place where the markings will not be removed by use.
- the number of marks on a shackle is to be kept to the minimum.
- the use of fractions and oblique strokes is to be avoided and a dot or hyphen is preferable to a dividing line.
- values of WLL are, generally, to be marked to one place of decimals (except for 0.25 and 0.75) up to 100 t and in integers thereafter. The word “tonnes” may be abbreviated to “t”.
- recommended sizes of marks are
- Diameter of part to be marked > recommended size of mark
- less then 12.5 mm > 3.0 mm
- 12.5 to 26 mm > 4.5 mm
- over 26 mm > 6.0 mm
Typical arrangements of marks can be found in the following illustrations.
