Green Pin® EE Turnbuckle G-6311 - Van Beest

Product No. SSGPOO1206

Regular price $20.80 $20.80
ARTICLE CODE
Save $25 when you subscribe to our newsletter (for orders over $250). Subscribe now
Shipping calculator
Please select country
Please enter correct zip code
Payment methods
amazon_payamerican_expressapple_paydiners_clubdiscovergoogle_paymasterpaypalshopify_payvenmovisa
Product details

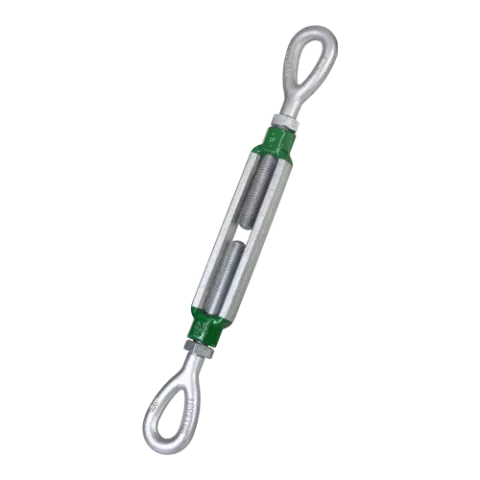

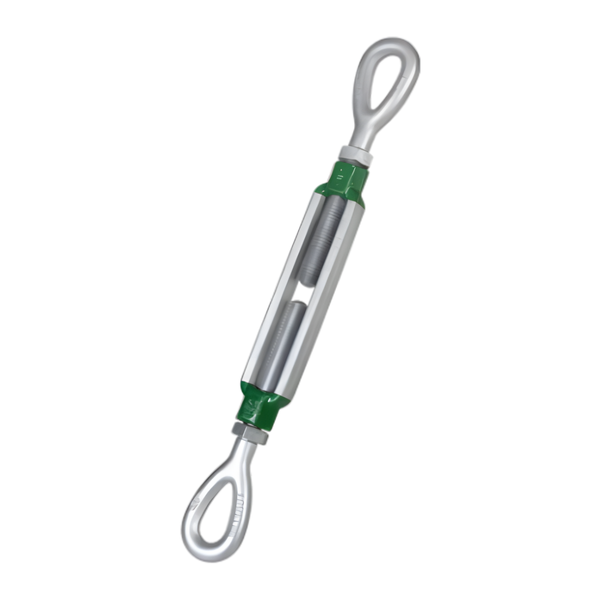

Green Pin® EE Turnbuckle - Van Beest



Turnbuckle with eye-eye end-fitting, generally to ASTM F1145-92


The Green Pin® EE Turnbuckle is a turnbuckle with eye-eye end-fittings, generally to ASTM F1145-92. One of the unique features of Green Pin® Turnbuckles such as this one is that they can be used for both lifting and lashing. Galvanization of the Green Pin® EE Turnbuckle ensures its long-term durability. The turnbuckle is available in a range with a diameter thread 3/8" (take up of 6") up to 2 3/4" (take up of 24").





Product Details

  • Product Code: G-6311
  • Material: drop forged high tensile steel SAE 1035 or 1045
  • Safety factor: MBL equals 5 x WLL
  • Finish: hot dipped galvanized
  • Temp. range: -20°C up to +200°C
  • Certification: 2.1, 2.2, 3.1, MTCa, CE
  • Standard: Generally to ASTM F1145-92, formerly U.S. Federal Specification FF-T-791b
Article code working load limit (ton) take up (inch) diameter thread (inch) length closed position (mm) length open position (mm) length (mm) diameter (mm) width inside (mm) length inside (mm) length closed position (mm) Net weight (KG)
SSGPOO1206 1 6 1/2 325 455 193 12 18 36 58 0.81
SSGPOO1209 1 9 1/2 400 608 270 12 18 36 57 1.07
SSGPOO1212 1 12 1/2 476 760 346 12 18 36 57 1.29
SSGPOO1606 1,59 6 5/8 380 503 203 14 21 45 79 1.33
SSGPOO1609 1,59 9 5/8 455 656 280 14 21 45 78 1.61
SSGPOO1612 1,59 12 5/8 531 808 356 14 21 45 78 1.96
