AMH Lever Hoist 0.8t to 2.5t USA Chain
Product No. LA008-05U
Regular price
$334.00 USD
Unit price
per
Shipping calculator
Please enter correct zip code
Payment methods
Product details

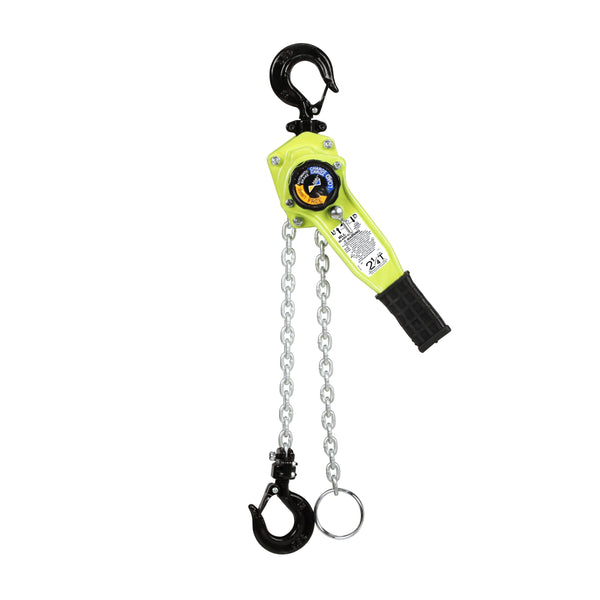

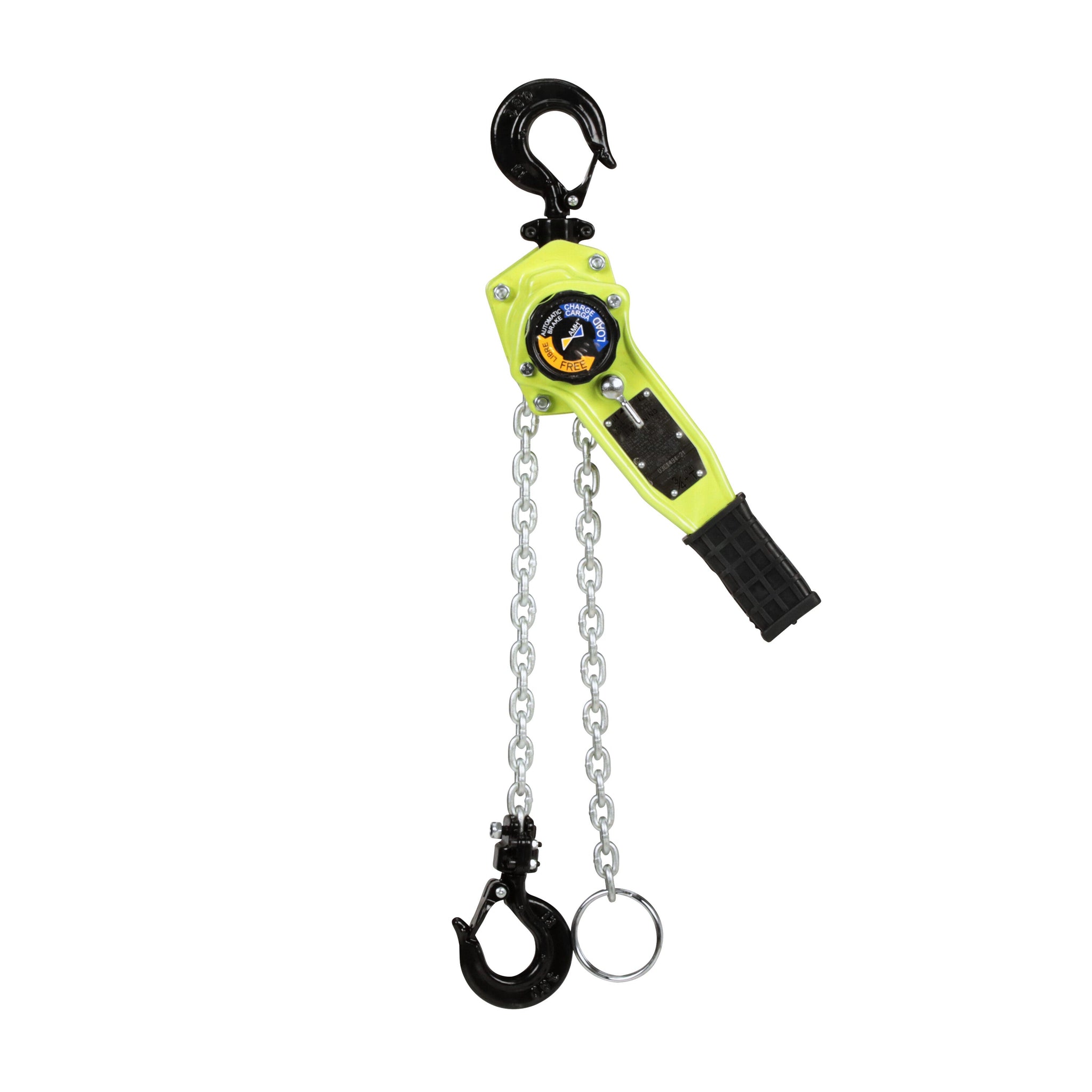

AMH Lever Hoist 0.8t to 2.5t USA Chain
The AMH Lever Hoist 0.8t to 2.5t USA Chain is a versatile and reliable tool for lifting and moving heavy loads. Its lightweight construction and easy-to-use lever mechanism make it a popular choice for a wide range of industrial applications. With its durable all-steel construction and high-quality load chain, this hoist is built to last and can provide years of reliable service.
- Dual Rated: Offering users a wide range of capacity options to choose from.
- Bolted Hook Blocks: Which makes it easy to disassemble for complete hook inspection.
- Lightweight, Durable, and Corrosion-Resistant Material: Lightweight and Durable All-steel Construction (along with the powder-coated finish and plated external components) makes this product highly resistant to corrosion.
- Premium US-made Grade 80 Zinc Plated Alloy Load Chain: Manufactured in the USA.
- Self-adjusting Double Pawl Disk Type Mechanical Load Brake: Ensures positive load control.
- Horseshoe Chain Guard: Allows for operation in any orientation, making it highly versatile.
- Optional Overload Protection is also available, which is a one-directional clutch that only slips in the lift direction.
- Meets Several Safety Standards, including ASME/ANSI B3O.21, OSHA, and NASA-STD-8719.9.
- ATEX rated and certified as II 3 GD c IIB 54º C X for limited use in hazardous environments.
- Long-life Fused Brake Friction Disk: Designed to withstand heavy use and will not crack, shatter, or absorb moisture.
Overall, this product is a reliable and durable choice for those in need of a high-quality load control system.
AMH Lever Hoist 0.8t-to-2.5t-USA Chain Specification:
- Brake Type: Self-Adjusting Double Pawl Disc Mechanical Load
- Chain Material: Grade 80 Zinc Plated Alloy
- Handle Type: Lever
- For 3.2 tons to 9 tons, check out 3.2t to 9t AMH Lever Hoist USA Chain
0.8t | 1t | 1.6t | 2t | 2.5t | |
---|---|---|---|---|---|
Load Capacity (in lbs) | 1760 | 2200 | 3520 | 4400 | 5500 |
Lever Length | 10-1/2" | 12.1" | 14" | 14" | 14" |
Pull to Lift Rated Load | 47 lbs | 51 lbs | 66 lbs | 66 lbs | 66 lbs |
Min. Between Hooks | 13.4" | 13.4" | 15.7" | 15.7" | 15.7" |
Hook Opening | 1.02" | 1.02" | 1.14" | 1.38" | 1.38" |
Lifting Height | 5ft, 10ft, 15ft, 20ft | 5ft, 10ft, 15ft, 20ft | 5ft, 10ft, 15ft, 20ft | 5ft, 10ft, 15ft, 20ft | 5ft, 10ft, 15ft, 20ft |
