Doughty TV Quick Clamp

Doughty TV Quick Clamp

A high tensile extruded aluminium clamp that is suitable for 48mm to 51mm diameter tubes and is 50mm (1.97″) wide, factory fitted with a 29mm (1.14″) Spigot receiver designed to accept a 28mm (1.10″) diameter spigot. Supplied with lynch pin for secondary locking allowing 360 degree rotation, this clamp is designed predominantly for use in the TV/Film industry and is often used with Drop Arms and Pantographs. Available in polished silver or powder coated black.

Downloads:

User Manual

Key Features:

• High tensile extruded aluminium construction
• Factory fitted with 29mm (1.14″) Spigot receiver for 28mm (1.10″) diameter spigot
• Compatible with 48mm to 51mm diameter tubes
• 360 degree rotation with lynch pin secondary locking

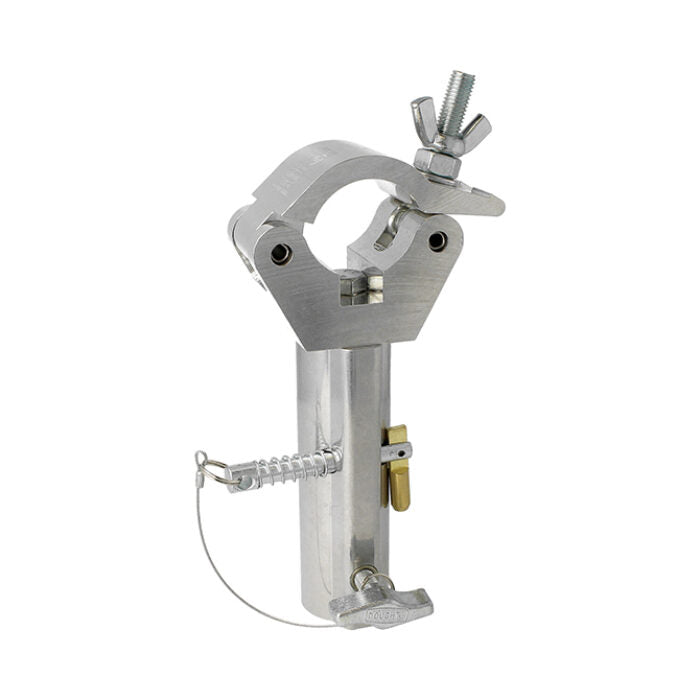

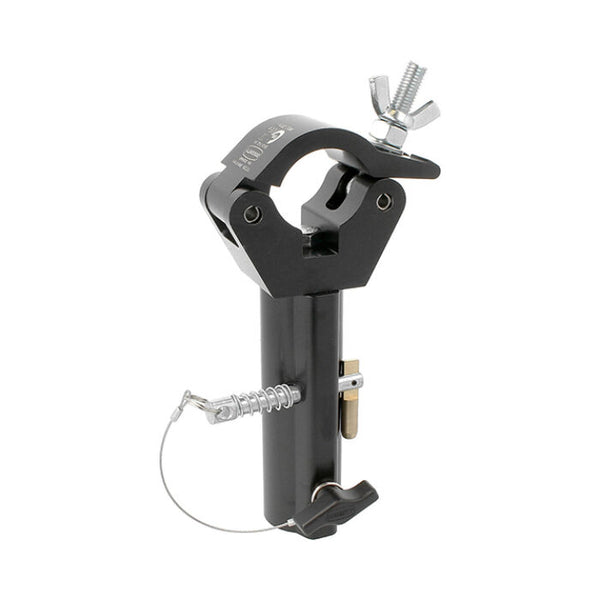

• Available in polished silver or powder coated black

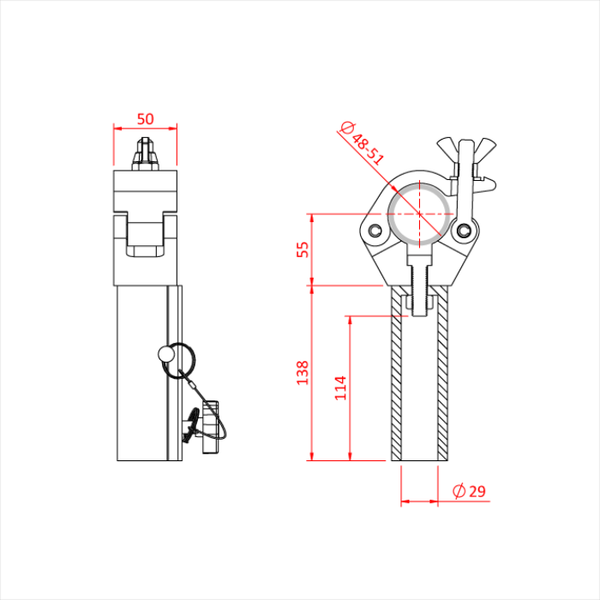

Specifications:

• WLL: 200Kg
• Tube Diameter: 48mm – 51mm (1.89” – 2.01”)
• Clamp Width: 50mm (1.97")
• Spigot Receiver: 29mm (1.14″), accepts 28mm (1.10″) diameter spigot
• Material: High tensile extruded aluminium

References:

• Designed for TV/Film industry applications
• Commonly used with Drop Arms and Pantographs
• Available finishes: Polished silver or powder coated black
